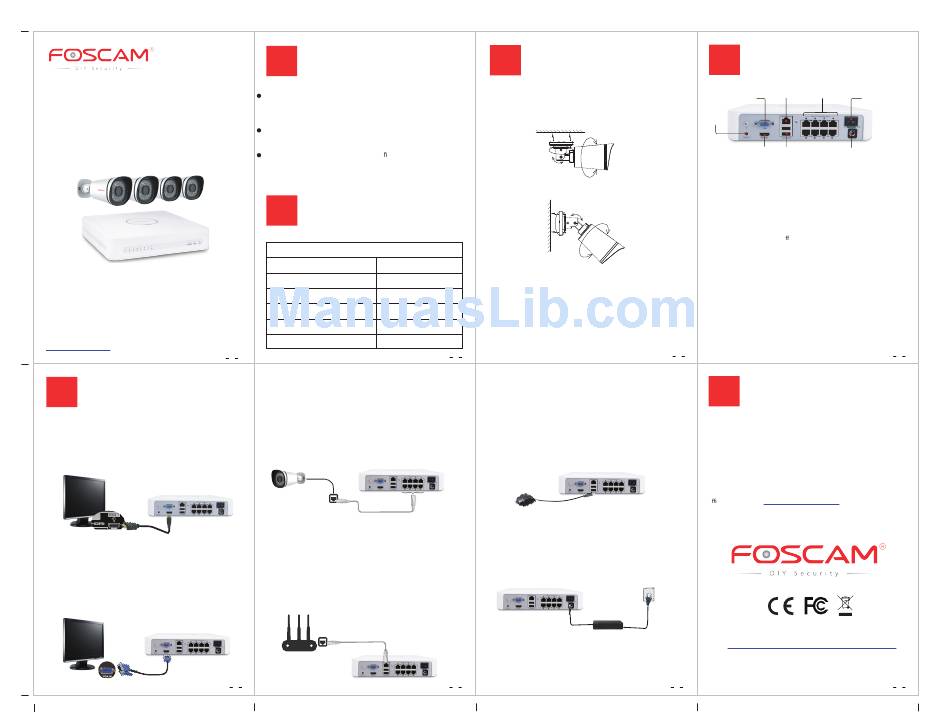

Foscam FN3108XE-B4-1T Quick Installation Manual

285mm

Quick Installation Guide

Model: FN3108XE-B4-1T / FN3108XE-B8-2T
For detailed manuals, tools, etc., please visit
http://www.foscam.com > Support > Download Center.
142.5mm
5

Device Connection

Step One - Connect Monitor
A: Connect the NVR to your HDTV
Plug one end in to the HD-OUT socket on the rear of the NVR
and the other in to a spare HD-OUT port on your TV.
HD-OUT Cable
Note:
If you have already connected your NVR using HD-OUT you don't need
to do it again using the VGA port.
B: Connect the NVR to a Monitor or TV
Use the VGA cable that came with your monitor to connect it to
the NVR's VGA port.
VGA Cable (not supplied)
.00
.00
1
Security Tips
Please change the password of your Foscam NVR App account,
and NVR and cameras username regularly. The password should
contain a combination of numbers, letters and special characters.
Please keep the username and password of your cameras, NVR
and Foscam NVR App account safe.
Please update your camera to the latest rmware regularly for an
optimal user experience.
2

Package Contents

8 Channel NVR Hard Drive (FN3108XE)
720P Bullet IP Cameras (FI9800XE)
25m (82 ft) Ethernet Cable
15m (49 ft) Ethernet Cable
1.5m (5 ft) Ethernet Cable
Quick Installation Guide
V1.2.3
Warranty Card
EQ310816
1
Step Two - Connect your cameras
There is a one-to-one relationship between the IP Camera Input
port and the video channel of your NVR.
IP Camera
(FI9800XE)
Ethernet Cable
NVR
Note:
Please power on independently when the IPC is not FI9800XE,
because FN3108XE does not support the standard PoE function.
Step Three - Connect to your network
Please connect your NVR to the router using Ethernet cable.
Please make sure your router is connected to the internet.
Ethernet Cable
Router
NVR
5
95.00mm
3

Installing the Cameras

Place the cameras in your preferred locations and use the included
screws to mount them.
0~360°
0~90°
0~360°
Screw Pack
HD Cable
Please Note:
USB Mouse
Ensure that the rain or water will not reach the connector ports at the
end of the pig tail wiring. These connectors are not weather-resistant.
Power Adapter for NVR
Quick Operation Guide
CD
2
Step Four - Connect the mouse
The USB mouse supplied with your NVR can be connected to
either of the two rear USB ports.
NVR
Mouse
Step Five - Connect the power adapter
Connect the power adapter to the power input port.
NVR
The connections are now complete. You can turn on the
power to enter your NVR's interface.
NVR
6
190.00mm
4
NVR Structure
VGA Output
Reset
0~360°
HD-OUT
VGA Output : Connect to your TV or computer monitor via VGA port.
E
thernet Port: 10 / 100Mb.
Ethernet cable.
0~90°
IP Cameras Input: These ports are for both power and video and are
0~360°
where you plug in your camera cables.
Power Switch: Power on / o button.
Reset: Press and hold the "Reset" button for a few seconds while the NVR
is powered on, and then release.
The NVR will automatically reboot and restore factory settings. The
username and password will be set to the default value, which are
"admin/(blank)" respectively.
HD-OUT: Connect to your HDTV or computer monitor with HD-OUT port.
USB: For connecting your USB mouse to control the NVR.
Power Input: This is where you connect the NVR's DC power supply.
3
6

Technical Support

If you have problems with your Foscam device, please contact the
reseller you purchased from, or you can e-mail the Foscam headquarter
Technical Support team: tech@foscam.com
Your valuable comments and suggestions on improving Foscam
products are welcomed!
Maybe you need more cameras to cover larger space, or you need to
replace the old failed camera looking ahead into the future. Foscam is
here to meet your home or business security needs! Please visit our
o cial mall website
NVR
Bullet Camera).
CE Certificate Website:
Power Adapter
http://www.foscam.com/company/ce-certificate.html
