Table of Contents

Compatibility

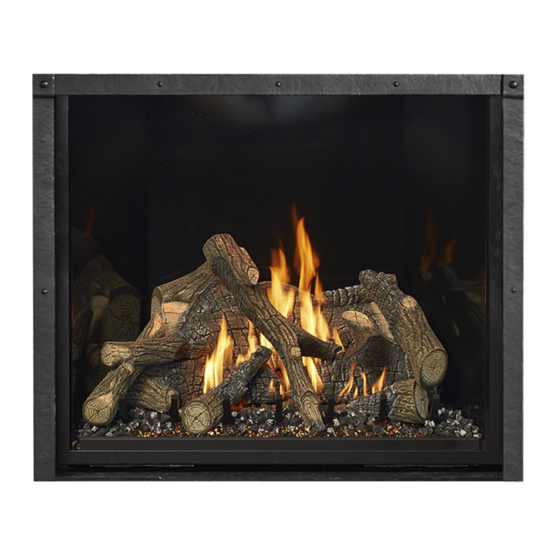

4237 Fireplace EG (FIREBACKS ARE REQUIRED BEFORE OPERATING THE 4237 EG FIREPLACE)

Packing List

Left and Right Side Fireback panels (each side fireback has a small notch at the front of the upper edge)
(4) Front and back - side panel spacers (marked with 1 hole on each end).
(4) Top and bottom - side panel spacers (marked with 2 holes on each end).
(2) Top and Bottom - rear panel spacers (marked with 3 holes on each end).
Rear shelf bracket (rear fireback rests on this bracket)

Installation

WARNING
Turn off gas to the appliance and make sure it is cool prior to conducting service.

Preparing the Fireplace

1. The firebacks should be installed while
finalizing the installation (before
installing the logs). Remove the glass
frame.
2. Use a 1/4" nut driver to remove the (8)
fireback clips inside the firebox. These
clips have keyhole slots that allow them
to be removed without removing the
screws (see illustration to the right).
3. Discard the (2) rear side clips and
tighten the screws to seal the holes in
the firebox.
Page 1 of 4
4237 EG Black Glass Fireback Installation
17602212 - 8/24/21
sku# 96100881
Discard the
lower clips and
tighten screws
Travis Industries, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4237 EG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FireplaceXtrordinair 4237 EG

Summary of Contents for FireplaceXtrordinair 4237 EG

  • Page 1 4237 EG Black Glass Fireback Installation sku# 96100881 Compatibility  4237 Fireplace EG (FIREBACKS ARE REQUIRED BEFORE OPERATING THE 4237 EG FIREPLACE) Packing List  Rear Fireback Panel  Left and Right Side Fireback panels (each side fireback has a small notch at the front of the upper edge) ...
  • Page 2 4237 EG Black Glass Fireback Installation sku# 96100881 4. Use a 1/4” nut driver to remove the three screws from the back wall of the firebox. 5. Insert the support bracket between the rear wall of the firebox and log shelf assembly.
  • Page 3 4237 EG Black Glass Fireback Installation sku# 96100881 Preparing the Fireback Panels 7. Prepare the (10) spacers by bending the tabs (2 per clip) up approximately 90° (see below). 8. Install the (4) spacers (2 with 1 hole on the front and back and 2 with 2 holes on top and bottom) on each side piece of glass and (2) spacers (each with 3 holes) on the rear fireback, top, and bottom.
  • Page 4 4237 EG Black Glass Fireback Installation sku# 96100881 9. Install the rear fireback. Insert the fireback, bottom first, into the fireplace. Carefully set the bottom of the fireback on the shelf bracket installed in step #5. Once the entire fireback is resting on the shelf bracket, tilt the fireback parallel to the back of the firebox and center it side to side.
