FireplaceXtrordinair 4237 EG Installation

Fireback

Hide thumbs Also See for 4237 EG:

Compatibility



4237 Fireplace EG (FIREBACKS ARE REQUIRED BEFORE OPERATING THE 4237 EG FIREPLACE)



Rear Fireback (ceramic firebacks have 2 pieces - note orientation below)

NOTE: The rear fireback of the Herringbone and the Stacked Tan kits have an arrow cast into the back. To

ensure proper brick alignment make sure the arrow is pointing upward. The rear panel of the Handmade Brick

liner can be installed with either edge facing up.



Left and Right Side Fireback (note orientation below)

Handmade Brick

Page 1 of 3

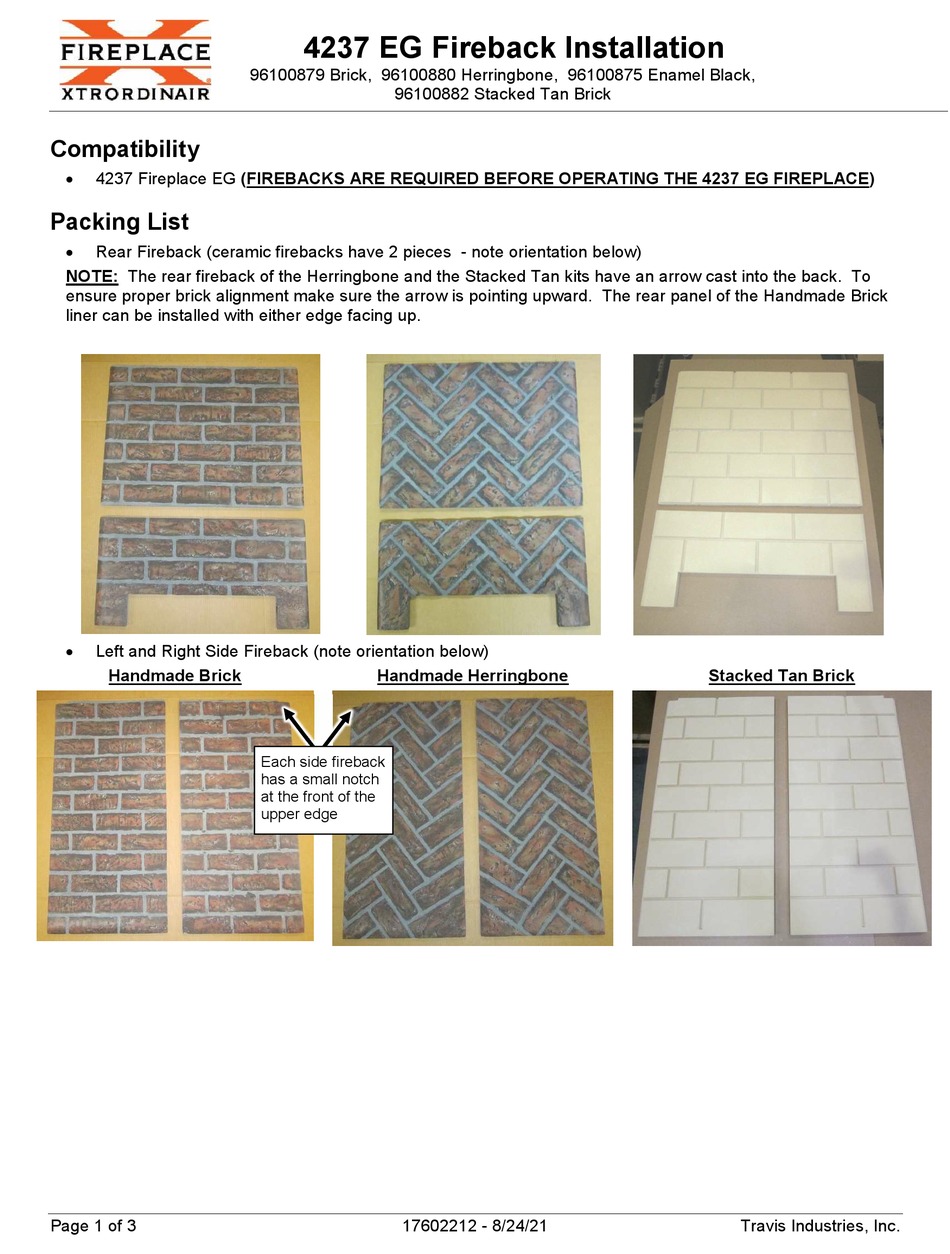

4237 EG Fireback Installation

96100879 Brick, 96100880 Herringbone, 96100875 Enamel Black,

96100882 Stacked Tan Brick

Handmade Herringbone

Each side fireback

has a small notch

at the front of the

upper edge

17602212 - 8/24/21

Stacked Tan Brick

Travis Industries, Inc.
