Rhosonics SDM Quick Start Manual

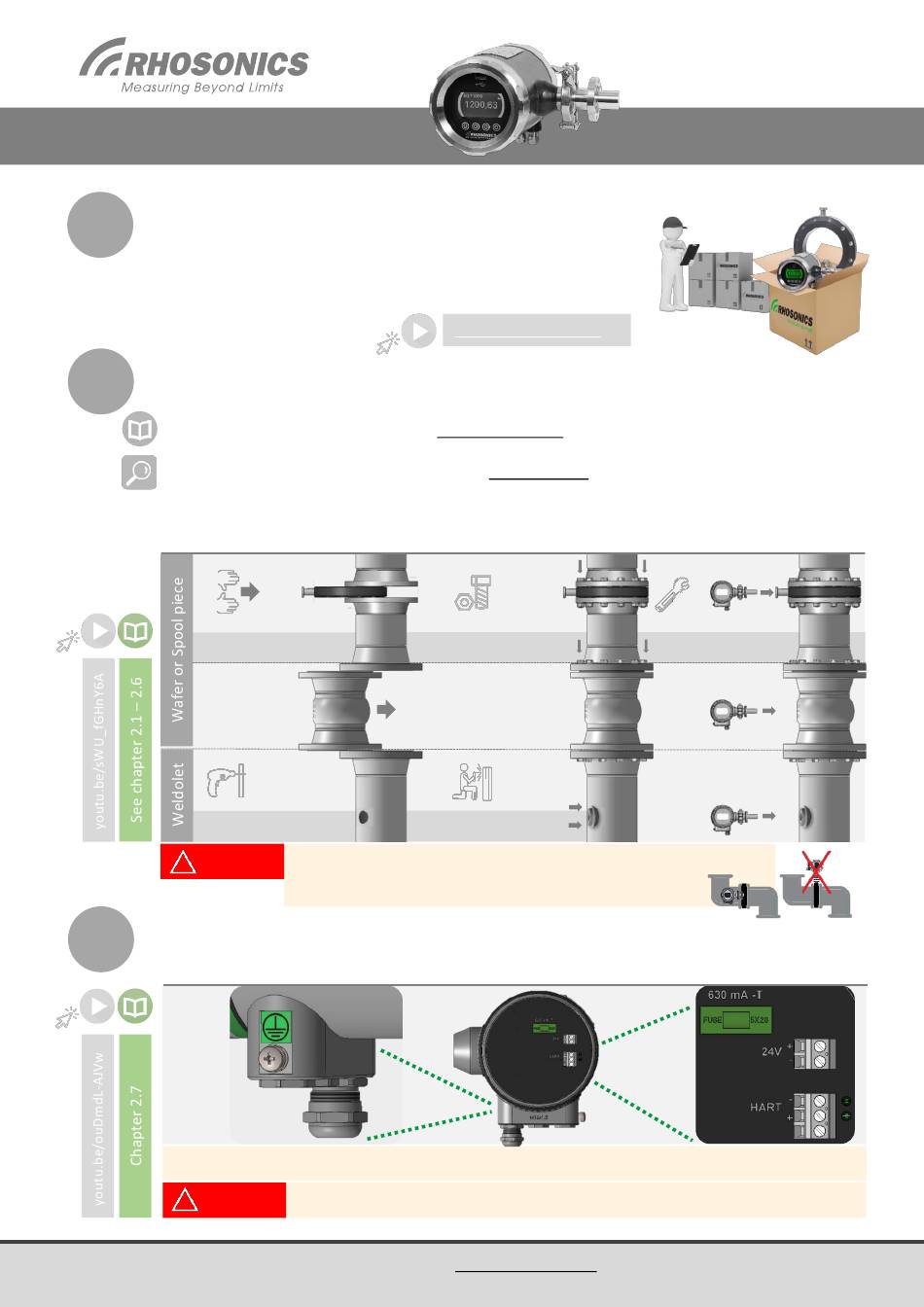

SDM – QUICK START GUIDE

Check and unpack shipment

1
1. Check if the box is complete and not damaged. Inside the box:

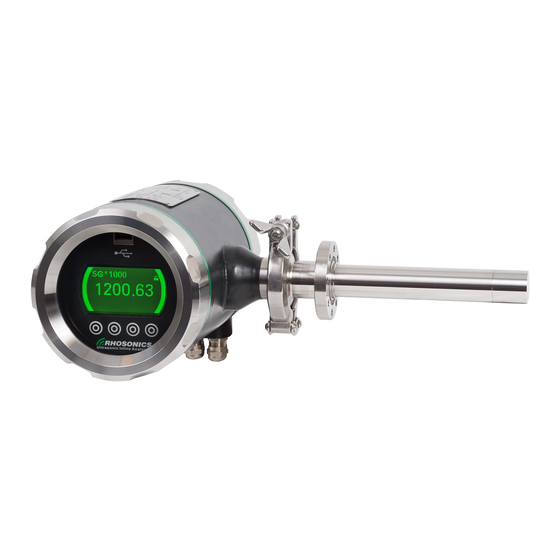

a. The Slurry Density Meter (SDM)
.
b. Wafer, Spool piece or Weldolet
c. Manual

Install the SDM

2
Follow the three installation steps shown in the picture below.
.
Note: Tighten the bolts following the manual guidelines, check which bolt torque values are
needed. First mount the wafer, spool or weldolet and then the SDM.
Check: Weldolet and sensor must be installed flush mounted with the surface inside the pipe.
The inner pipe diameter must be equal to the inner diameter of the wafer/spool piece
Vertical pipe installation only if the flow goes in upstream direction. Please use the
rubber O-ring when mounting the SDM. This is important for proper sealing
Install wafer or spool
Drill a hole of Ø43 mm
CAUTION:

Make electrical connection

3
1. Connect protective earth cable (see image below)
2. Connect 24V and HART/ 4...20 mA
.
1.
Unscrew the back lid to see the SDM's rear view as shown on the picture above
CAUTION:
SDM – Quick Start Guide – RevC
youtu.be/S3CLrWe65jk
1.
Weld weldolet onto pipe
Horizontal pipe installation must in a 45° angle from the bottom, in
consultation with Rhosonics.
Do not connect 220V to the SDM
www.rhosonics.com
2.
Tighten bolts
2.
.
.
3.
Install the SDM
Page 1/2
