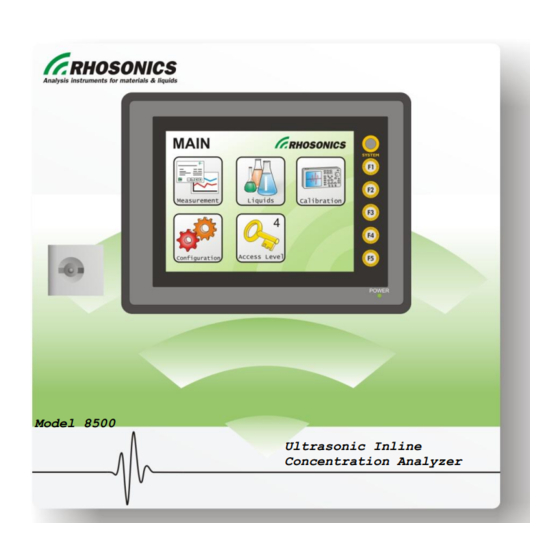

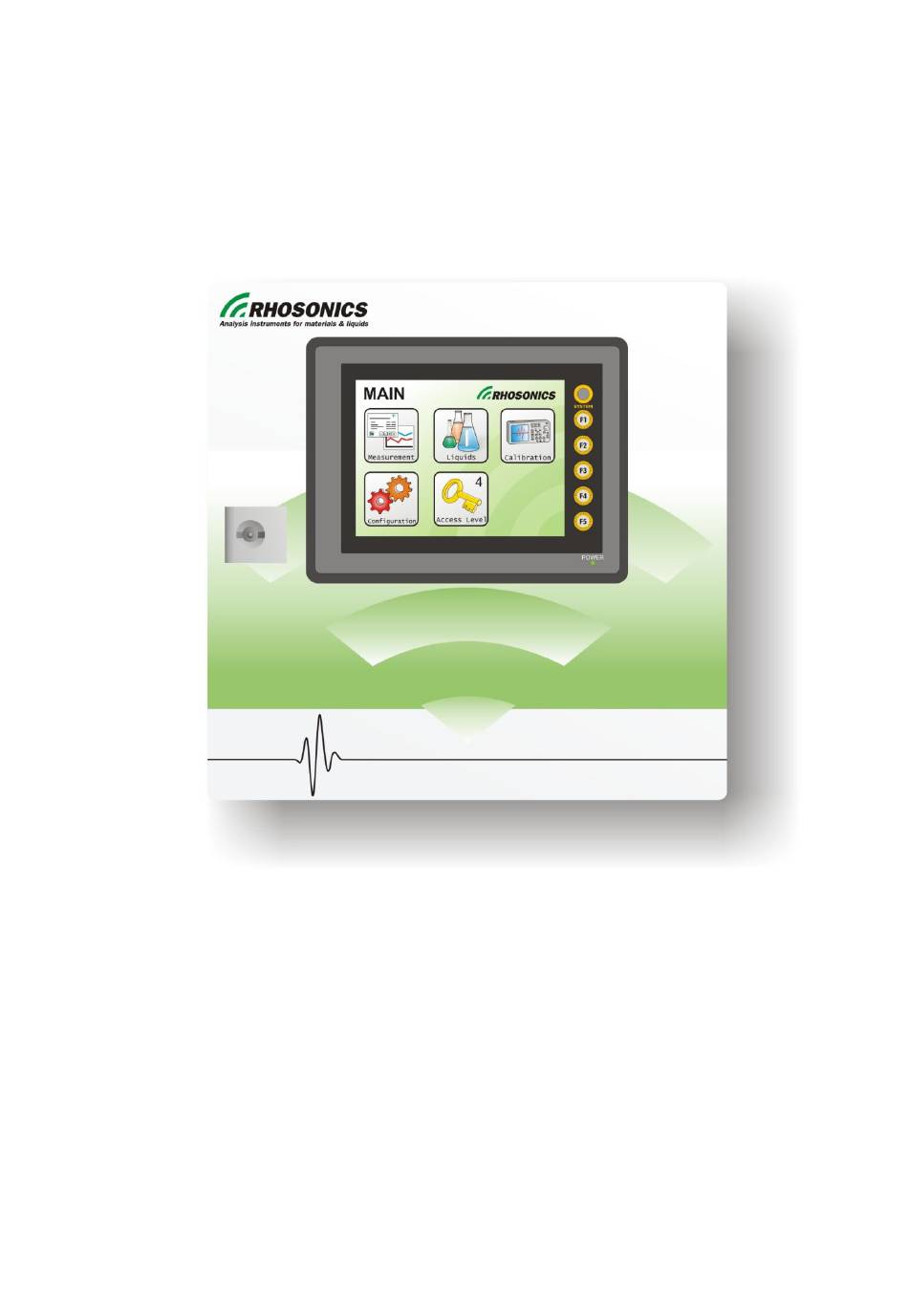

- Page 1 Model 8500 Model 8500 Ultrasonic Inline Concentration Analyzer Ultrasonic Inline Concentration Analyzer for solutions and emulsions MANUAL Software Version: 2.3.3 Date: 8 August, 2012 Page 1/46...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. INSTALLATION 1.1 I NTRODUCTION 1.2 A NALYZER INSTALLATION 1.2.1 S PLIT TYPE INSTALLATION 1.2.2 W EATHER PROOF HOUSING INSTALLATION 1.3 S ENSOR INSTALLATION 1.4 I NSTALLING THE CABLES 2. CONFIGURATION. 2.1 I NTRODUCTION 2.1.1 T OUCH CREEN UNCTIONS 2.1.2 P... - Page 3 3.2.1 I NTRODUCTION 3.2.2 P URPOSE 3.2.3 P REPARATION FOR EDITING LIQUID PARAMETERS 3.2.4 P ROCEDURE 3.2.5 A DJUSTING INDIVIDUAL ALARM TRIP POINTS 3.2.6 A DJUSTING POLYNOMIALS 4. CALIBRATION 4.1 T YPES OF CALIBRATION 4.2 T EMPERATURE OFFSET 4.2.1 P URPOSE 4.2.2 W HEN NEEDED...
- Page 4 8. TECHNICAL SPECIFICATIONS 8.1 O PERATION CHARACTERISTICS 8.2 O PTIONS 8.3 S UPPLEMENTAL CHARACTERISTICS 8.3.1 A NALYZER WITH TOUCH SCREEN DISPLAY 8.4 E NVIRONMENTAL CONDITIONS 8.4.1 I NGRESS ROTECTION 8.4.2 T EMPERATURE 8.4.3 H UMIDITY 8.4.4 S TORAGE CONDITIONS 9. TECHNOLOGY 9.1 M EASUREMENT SEQUENCE 9.2 U...
-
Page 5: Installation
/ aluminium housing. To prepare the installation, please refer to the figures below. Midden Engweg 37A Phone: +31 341 370073 NL-3882 TS Putten Fax: +31 341 370074 The Netherlands Email: info@rhosonics.nl Internet: www.rhosonics.nl Fuse Fuse 1.6A 3.15A Type:... - Page 6 +0.5 Figure 2: Panel cut-out for display installation 1.2.1.2 Touch Screen connections The touch screen has 2 major connections, i.e. the 24 Volt power supply, and the connection with the PCB control unit. The connection with 24VDC is realized through screw-type terminals. The connection with the PCB control unit must be established with the special cable.
-
Page 7: Weather Proof Housing Installation
WARNING: A TOO TIGHT FIT OF THE SCEEN MAY CAUSE DAMAGE AFTER INSTALLATION NOTE: There are two different types of displays, so the ports can be located at other places on the display than is shown in the drawing. 1.2.2 Weather proof housing installation SYSTEM Display Cable gland holes (5x) for... -
Page 8: Sensor Installation
Mains DC Power Ext. Hold Power Fuse Fuse 90-240 18-36 1.6A 3.15A Volt Volt slow slow Model Serial No. External Liquid select Control Communication Binary I/O RS 232 / Touch screen Ethernet 422 /485 RS 232/485 Density Touch screen meter Power supply I2C Density meter external devices... - Page 9 24 VDC 100...240 VAC Ethernet (Optional) Hold Concentration SYSTEM 4-20 mA out 1 (Optional: Isolated output) Sound Speed Temperature Attenuation Time Concentration NaOH 25.34 %wt 4-20 mA out 2 Temperature 21.68 °C MAIN Attenuation Spound speed 1798.352 m/s NEXT Pt100-1 4-20 mA in (=Comp.
- Page 10 24 VDC Midden Engweg 37A Phone: +31 341 370073 NL-3882 TS Putten Fax: +31 341 370074 The Netherlands Email: info@rhosonics.nl Internet: www.rhosonics.nl Fuse Fuse 1.6A 3.15A Type: 8500-SPLT-TOD-VAC 100-240V slow slow 18-36V Voltage: 100-240 VAC 18-36 VDC S YSTEM Power:...
-
Page 11: Configuration
2. Configuration. Configuration can be done through the configuration menu, by pressing the exit icon on the main measurement screen: Figure 10: MAIN MENU page NOTE: The shown icons depend on your access level. 2.1 Introduction Once you have chosen the configuration mode, you will be able to establish specific operating parameters of the analyzer. -
Page 12: Analog Output Configuration
What to do when the system detects problems, i.e. gas bubbles. Consider which parameters you wish to be viewed during normal operation. I.e. Concentration for 1 parameter shown I.e. Temperature for 2 parameter shown Consider which parameters need to be monitored by the alarms. ... -
Page 13: Output Scaling
menu. Figure 12: ASSIGNMENT PAGE 1 page 2.2.3 Output Scaling The analog output is of the 4~20 mA type. When you wish to scale your output to a range of 10 to 15 wt%, the procedure is as follows: ► Press [4 mA Equals] ►... -
Page 14: Decay Time
Example: The output should force low when 120 seconds of continuous loss of signal occurs. ► Press [Error Mode] on the 4~20 mA output 1 or 2 menu. ► On the Error mode OUT 1 page, press the button of your choice: ►... -
Page 15: Setting The Display Resolution
► From the Configuration menu, press [Display] ► On the Display configuration menu, press [Source 1 name] to go the the Source 1 menu ► Here you can choose between the Calculated polynomial (the concentration) and one of the measured value’s If you choose for Calculated Polynom: ►... -
Page 16: Backlight Turn Off Time
► Press [Min/Max value y-axis 1/2] Now you can enter the values that should correspond to minimum and maximum of the y- axis 1 and y-axis 2 (via pop-up keypad) ► Press [Trendline sampling time] Now you can enter the time that should correspond to the time a trend value is written on the graph. -
Page 17: Auto Dead Time
Figure 18: ULTRASONIC PROBE CONFIGURATION page 2.4.4 Auto dead time 2.4.4.1 Introduction The auto dead time function takes care of variations in the “dead time”, a probe- specific variable which is determined in the factory and is used to measure precisely the actual transit time in the liquid. -
Page 18: Alarm Configuration
2.5 Alarm configuration. 2.5.1 Introduction Alarm relays are provided for monitoring specific measured concentrations. The analyzer allows you to define which parameters are monitored, and at what values the relays should be possible. In addition, you may select whether the alarms are activated during fault conditions (Normal) or activated when no alarm is present (inverted operation). -
Page 19: Trouble Shooting
Repeat these steps for Alarm 2 if desired. IMPORTANT: Changes made to the alarm settings of an individual liquid will remain valid until the alarm settings for this liquid are changed again. 2.6 Trouble shooting 2.6.1 Preparation. For trouble shooting, it is important to record as much data as possible ... - Page 20 Wait until the page “Saving data to USB” is disappeared from the screen, this may take up to 5 minutes Remove USB stick and check the log data with Excel Software Version: 2.3.3 Date: 8 August, 2012 Page 20/46...
- Page 21 The following table shows the data arrangement in the CSV-file on the USB stick. Value @ Normal Name Description operation Calculated value 1 (i.e. 0-100 %w/w, 0-350 g/l Polynoom 1 Concentration) Salt, etc. In between the Min. Temperature sensor 1 Temperature sensor 1 [°C] temp and Max.
-
Page 22: Verifying The Ultrasonic Signal Waveform
2.6.4 Verifying the Ultrasonic Signal Waveform 2.6.4.1 Purpose The purpose is to verify the proper operation of the analyzer with regard to the ultrasonic echo. Its visualized waveform (time vs. amplitude plot) can be an aid to identify problems which are related to the process (gas bubbles, faulty cable etc.) When you are asked by the factory or your sales agent to submit a waveform for diagnostics purposes, please follow this procedure. - Page 23 the echo stored on the USB stick. If more than 100 echoes are stored, the first JPG- file will be overwritten. 2.6.4.3 Examples of ultrasonics waveforms Please refer to the previous section for a general explanation. This echo is extremely good, as there is no noise before the echo (left = before).
-
Page 24: Factory Diagnostics To Usb
For trouble shooting purposes, the factory or the service engineer of your sales representative may ask you to copy the factory settings to a USB stick and send these settings to Rhosonics. 2.6.5.2 Preparation. NOTE: Please read the previous section(s) to obtain information about the type of memory stick to be used. -
Page 25: Hard Copying Screens
2.6.6 Hard copying screens 2.6.6.1 Purpose For trouble shooting purposes, the factory or the service engineer of your sales representative may ask you to copy relevant screens to the USB stick, in order to be better able to see what you are seeing on your screen(s). 2.6.6.2 Procedure. -
Page 26: Liquid Selection And Editing
3. Liquid Selection and Editing 3.1 Liquid (product) selection 3.1.1 Purpose: To make one previously stored liquid calibration the new and active calibration. When your analyzer is used for one specific type of liquid only, the liquid select procedure may not be of interest to you. 3.1.2 Procedure (manual selection): The Liquid Selection menu is accessible through the Liquid menu on the Main Menu. -
Page 27: Purpose
To restore field calibration data or duplicate field calibration data from other analyzers into this analyzer. To edit polynomial constants according to Liquid Datasheet sent by Rhosonics 3.2.3 Preparation for editing liquid parameters Obtain the liquid data sheet from the factory ... -
Page 28: Adjusting Polynomials
Changing polynomials may lead the incorrect concentrations. Only perform this action if Rhosonics asked you to do so. Rhosonics may send you a new Liquid Datasheet with new liquid polynomials to improve the concentration calculation. To enter the new polynomial values into a liquid follow the next steps. -
Page 29: Calibration
4. Calibration You may calibrate the analyzer in order to assure optimal analysis results. This section describes the different calibration routines, and the intervals which are required. 4.1 Types of calibration The following table lists the different types of calibration, their purpose and the interval required to perform these calibrations. -
Page 30: When Needed
The analysis result and the linearity highly depends on the integrity of the temperature circuit. The temperature offset calibration provides a simple and effective way to apply corrections to the temperature measurement, should this be necessary. 4.2.2 When needed Check the temperature reading regularly, and perform a calibration when the reading error exceeds 0.5 ºC. -
Page 31: Field (Sample) Calibration
IMPORTANT: The zero calibration must be preferably done inline, with water, WITHOUT ANY GAS BUBBLES. When done inline, at atmospheric pressure, the water may be treated by ultrasonic removal of all gas bubbles. In the Calibration menu press [US Zero] ... - Page 32 calibration will have effect ONLY on the liquid which you have made the active liquid calibration. The below procedure provides a brief guideline for the necessary steps. The analyzer must be powered up for at least 4 hours Select the product from the list (Through menu Liquids-Liquid Select). ...
-
Page 33: Automation And Communication
5. Automation and communication. The Rhosonics analyzer has several features to minimize operator interference. Most of them are related to remote product switching and regular calibration routines. CAUTION: Be aware that changing of any data can stop the communication. Do not change any data if you do not fully understand the effect of all actions to the performance of the analyzer. -
Page 34: External Hold Function
5.4 External Hold function 5.4.1 Purpose External HOLD is useful during product stand still. Due to the heating of the pipe, the temperature of the liquid may not be stable. The External Hold function will stop the measurement and freeze all outputs. 5.5 Automatic calibration 5.5.1 Auto dead time calibration The purpose of this feature is to reduce small errors, both operator and system errors. -
Page 35: Maintenance
6. Maintenance 6.1.1 Introduction Most maintenance is covered by the Chapter “Calibration” of this manual. The table in this chapter gives an overview of the most common maintenance requirements of the system. 6.1.2 Probe maintenance The operation of the probe can be checked by following the procedure as described in the Calibration Chapter of this manual. -
Page 36: Ma Output Calibration
6.1.4 4-20 mA OUTPUT calibration It is normally NOT necessary to (re)calibrate the analog ouputs. If there is a doubt about the analog conversion of the concentration value, or in case you wish to do a system loop calibration, this procedure may be followed. Note that the sole purpose of this calibration is to calibrate the electronic output, which is normally drift free. -
Page 37: Frequently Asked Questions
7. Frequently asked questions 7.1.1 Installation questions Q: Do I need to calibrate the analyzer prior to installation? A: The analyzer has been calibrated and tested in the factory. There is no need to (re)calibrate the analyzer before installation, because all specific adjustments and calibrations can be done with a fully installed analyzer. - Page 38 Q: During certain process conditions, it can happen that gas bubbles are present in the liquid. How does this affect the measurement? A: The Rhosonics Ultrasonic Analyzer automatically detects the presence of product and gas bubbles. It will then freeze the measurement until a next valid measurement is possible. Due to its unique method of operation, the analyzer continues to operate reliably during upset process conditions.
-
Page 39: Calibration (Us System)
7.1.3 Calibration (US system) Q: I just installed the analyzer. Do I need to calibrate the analyzer prior to first use? A: Some calibrations are necessary. Please see following 2 questions and answers. Q: How can I calibrate the analyzer? A: Instrument calibration, i.e. - Page 40 Q: We are processing a different liquid than the analyzer originally was calibrated for. Do I need to return the analyzer and include a sample for recalibration? A: It is usually not necessary to return the analyzer. Please consult the factory or your local agent for a recommendation.
-
Page 41: Technical Specifications
8. Technical specifications 8.1 Operation characteristics Temperature circuit: Resolution ± 0.001 °C (24 hours warm-up) Reproducibility ± 0.005 °C (24 hours warm-up) Range -10 °C through 110 °C Sound speed circuit: Resolution ± 0.002 m/s Reproducibility ± 0.01 m/s Range 500 m/s through 3000 m/s Conductivity circuit: ±... -
Page 42: Environmental Conditions
8.4 Environmental conditions WARNING: To prevent electrical fire or shock hazards, do not expose the instrument to rain or excessive moisture. 8.4.1 Ingress Protection External touch screen display front side: IP65 (when using gasket) External touch screen display rear side: IP20 Control unit front side: IP20/55 Control unit rear side: IP20/24 Sensor: IP68... -
Page 43: Technology
9. Technology 9.1 Measurement sequence Send pulse to transmitter Receive echoes within echo window from receiver Check validity of echo Determine transit time and strength of echo Measure temperature Calculate sound speed Calculate concentration 1 ... -
Page 44: Attenuation
For ternary analysis using the sound velocity and conductivity, the attenuation is not important and although it is measured, it is not being used for the calculation of the end result. 9.4 Attenuation Many years of practical experience have shown that measurement of ultrasonic attenuation in slurry is directly proportional to the percentage of suspended solids. -
Page 45: Appendices
10. Appendices 10.1 Operating software structure for level 1, 2 and 3 in the Configuration menu Analog Configuration 4-20 mA IN Digital Calibration Temp. Sensor 1 Temperature Temp. Sensor 2 Sensor 1 Ultrasonic Sensor Sensor 2 Configuration Conductivity Calibration (Zero + Ref) Configuration Settings Density... -
Page 46: Options
10.3 Options No options 10.4 Appendix A: Sound speed of water at 0 to 100 °C T [°C] c [m/s] T [°C] c [m/s] T [°C] c [m/s] T [°C] c [m/s] 1402.388 1496.687 1542.551 1555.133 1407.367 1499.323 1543.619 1555.081 1412.232 1501.883 1544.636...
