Summary of Contents for Amart Furniture Signature 65927
Page 1

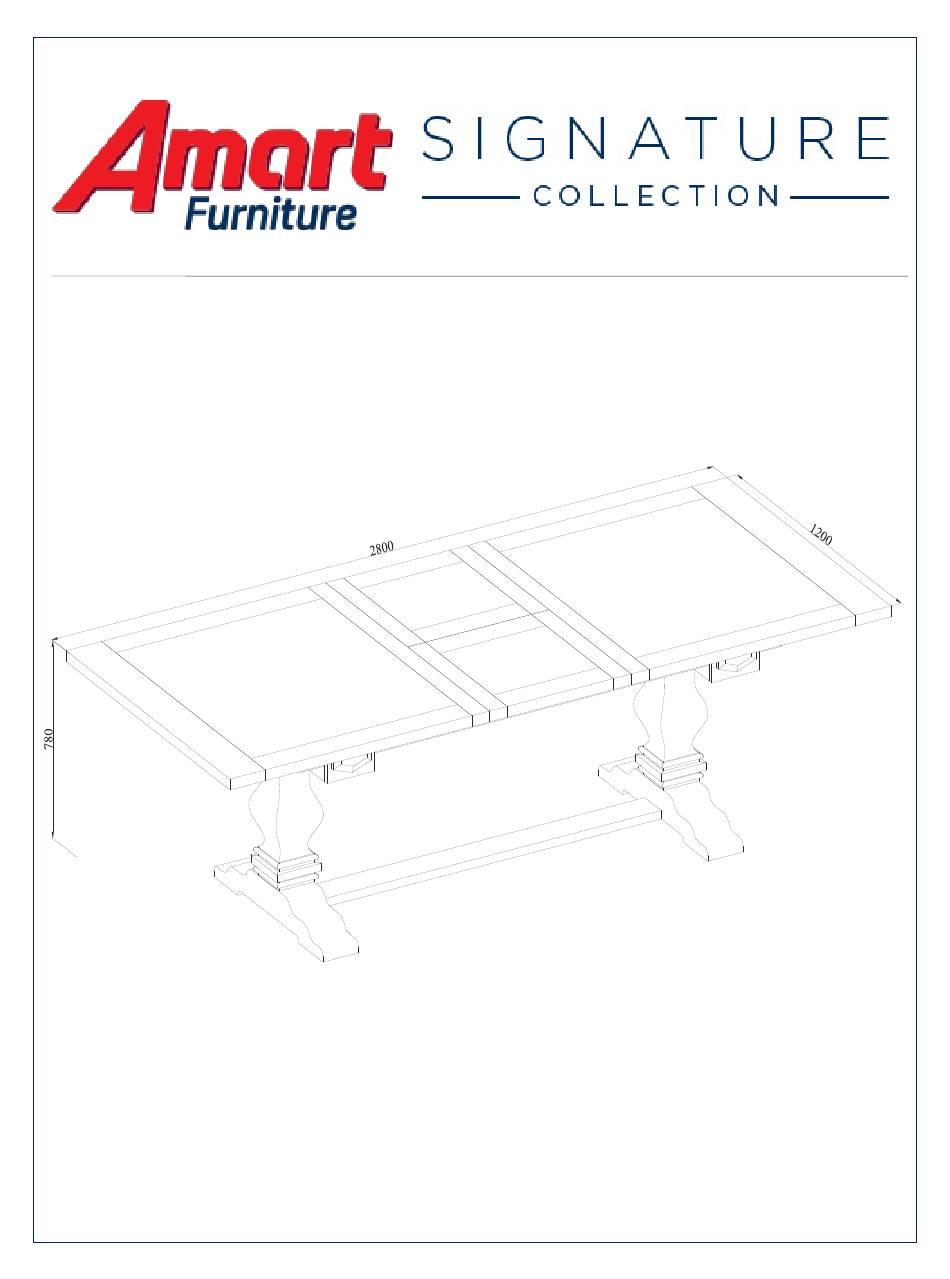

ASSEMBLY INSTRUCTION LA SALLE MK3 EXTENSION DINING TABLE ITEM CODE 65927 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084...
Page 2
IMPORTANT: CARE GUIDE FOR YOUR TIMBER FURNITURE • Congratulations! You have just purchased a quality product from Amart furniture, Australia's largest discount furniture retail store. Please read on for important information regarding your purchase. • A multi-step finish is applied to all our furniture, but all wood comes from nature.
PRE-ASSEMBLY PREPARATION Before you start: Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product Take care when lifting. Product should be assembled as near as possible to the point of use Ensure that you have all required contents for complete assembly Always read the assembly instructions carefully before beginning assembly.
PARTS LIST Part DESCRIPTION In box Part DESCRIPTION In box TOP TABLE CROSSBAR PEDESTALS LEGS A M6 X 45 BOLT B M8 X 100 BOLT C M6.5 X 19 FLAT D M6.5 X 9 PCES PCES WASHER PCES SPRING PCES WASHER E HEXAGON NUT F M8.5 X 30 FLAT...
Page 5
Step 1 You should have started by opening box 1, upside down. Keep the table top inside the box until later advised. Step 2 As per the diagram below, detach the two rails with the Allen Key provided (item I). You will need to re-attach these pieces later, so please safely store the bolts, flat washers and spring washers (Items K,L and M).
Page 6
Step 4 Now attach one of the rails removed from step 2 to a pedestal (part 2). Start by placing the rail through the threads, onto the pedestal with the threads facing up. This is a 2 person job with one person holding the pedestal at all times.
Page 7
Step 5 Now we’ll be attaching the pedestal and rail structure to the table top. Start by placing the pedestal and rail structure into position guided by the dowels in the table top. Then fix the pedestal and rail structure with the 4, M6 x 70 bolts (item K), 4, M6.5 x 13 flat washers (item L) and 4, M6.5 x 9 spring washers (item M) removed from step 2 with the Allen key provided (item I).
Page 8
Step 7 Assembling you bolts (item B), spring washers (item F), and flat washers (item G), as per diagram below. YOU WILL NEED B M8 X 100 BOLT F M8.5 X 13 G M8.5 X 19 FLAT I ALLEN KEY 1 PCE PCES SPRING...
Page 9
Step 10 Assembling you bolts (item A), spring washers (item D), and flat washers (item C), as per diagram below. YOU WILL NEED A M6 x 45 BOLT D M6.5 X 9 C M6.5 X 19 FLAT I ALLEN KEY 1 PCE PCES SPRING...
Page 10
Step 12 The final step is to flip the table over. This requires 4 people, do not attempt alone. Before starting, double check that both latches are firmly secured. If not follow the diagram below. Next start with lifting the table out of its packaging. Have one person take a corner each.When swinging the table the right way up, do not pivot on the legs Assembly is complete.
Page 11
Operational Guide To open the table, start by unlocking the latches. Then with 2 people extend the top as shown below. Then fold out the leaf as shown below. Push the table top close firmly, then lock all 4 latches, before use. 65927...
Page 12
Operational Guide To close, unlock all 4 latches, then pull table top open from each end. Then fold in the leaf as shown below. Push the table top close firmly, then lock both latches, before use. 65927...
