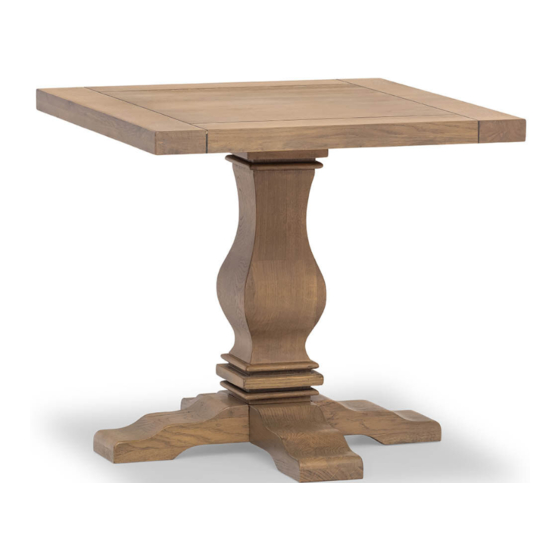

- Page 1 ASSEMBLY INSTRUCTION LA SALLE MK2 LAMP TABLE ITEM CODE 65966 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084 65966...
- Page 2 IMPORTANT: CARE GUIDE FOR YOUR TIMBER FURNITURE • Congratulations! You have just purchased a quality product from Amart Furniture. Please read on for important information regarding your purchase. • A multi-step finish is applied to all our furniture, but all wood comes from nature.
-
Page 3: Before You Start
PRE-ASSEMBLY PREPARATION Before you start: Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product Take care when lifting. Product should be assembled as near as possible to the point of use Ensure that you have all required contents for complete assembly Always read the assembly instructions carefully before beginning assembly. -
Page 4: Parts List
PARTS LIST Part DESCRIPTION Part DESCRIPTION TABLE TOP LEG UPPER PLATE LEG LOWER PEDESTAL A M6 X 30 BOLT B M6 X 80 BOLT C M6.5 X 19 FLAT D M6.5 X 9 PCES PCES WASHER PCES SPRING PCES WASHER E ALLEN KEY PCES 65966... - Page 5 Step 1 You should have started by opening the box upside down. Keep the table top inside the box until later advised. Step 2 Next you will need to assemble the M6 x 30 bolts (item A) with the M6.5 x 9 spring washers (item D) and the M6.5 x 19 flat washers (item C) YOU WILL NEED A M6 X 30 BOLT...
- Page 6 Step 3 Take 4 of the assembled bolt sets from step 2 and affix the plate (part 2) to the pedestal (part 3) with the Allen key provided (item E). Fasten firmly, but do not over tighten, over tightening may damage surface of item.
- Page 7 Step 5 Start by turning the pedestal upside down, resting on the plate. Criss- cross the upper and lower legs as per the diagram below. Then fix the legs to the pedestal with the 4 assembled bolts set from step 4, using the Allen key provided (item E).
- Page 8 Step 6 Take the remaining 8 assembled bolt sets from step 2 and use them to fasten the plate and pedestal structure to the table top. Use the Allen key provided (item E). Fasten firmly, but do not over tighten, over tightening may damage surface of item.
- Page 9 Attaching the anti-tipping kit. As wall types vary, we do not supply the screws that you will need, to fasten onto your wall. Please seek advice from you trusted local specialist. Step 1 Attach one of the anchors to the underside of lamp table top. Step 2 Mark the spot on the wall that will best line up with the anchors already fixed on the unit.
- Page 10 Assembly is complete 65966...
