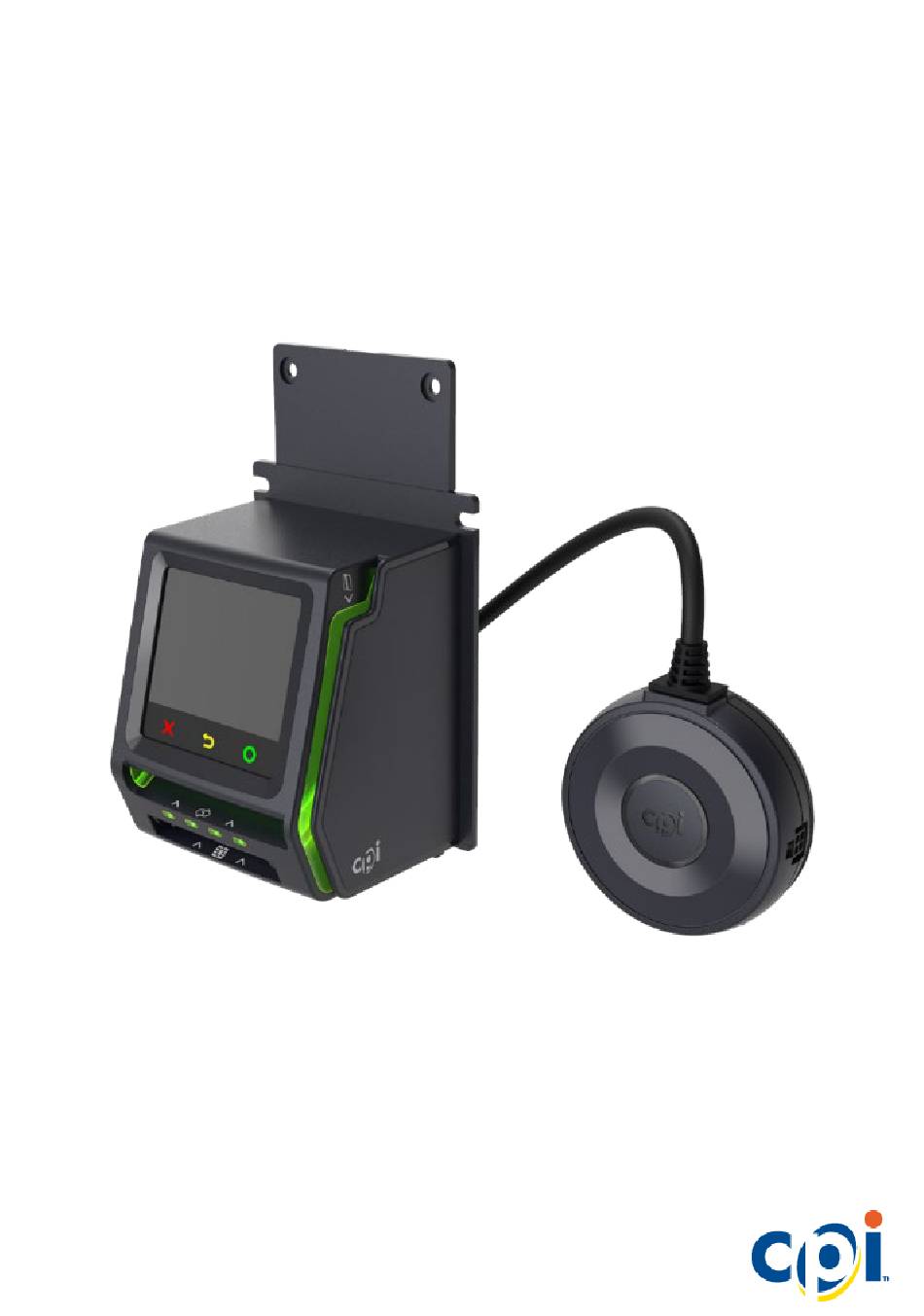

- Page 1 Installation Guide Alio™ Note Card Reader 250659086 R2...
- Page 2 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by CPI could void the user's authority to operate the equipment.
-
Page 3: Table Of Contents
Installation ....................... 6 Parts included ..........................6 Tools required ..........................6 Card reader identifier ........................6 Installing the Alio Note card reader ....................7 3.4.1 Removing existing old telemeter and bezel from note validator ..............8 3.4.2 Installing the Alio Note card reader ......................8 3.4.3... -
Page 4: Version History
Alio™ Note Card Reader Version history Change Chapters Concerned Editor Date D. Sanders v1.0 First version K. Roese Nov. 18, 2021 Document Data 250659086 Part Number Release November 18, 2021 – Edition Part Change Number Published by CPI 44060-IG-01-01-EN_CPI_Alio Note Card Reader_Installation Guide_V1.0_.docx... -
Page 5: About This Installation Guide
Short guide that summarizes a chapter and provides links to subsections. Additional useful technical documentation Apart from this installation guide, further documentation is available for the Alio Note card reader. All documentation can be downloaded from Crane Payment Innovations web site as pdf file. -
Page 6: Installation
Card reader identifier The Alio Note card reader can be identified by its serial number on the product label. There are three optional positions for the product label: Above the bezel, on the bottom side of the card reader, or on the bottom side of the card reader’s connection hub. -
Page 7: Installing The Alio Note Card Reader
Series 2000 and Talos note validators, both with or without recycler modules, and replace the bezel. If the Alio Note card reader is supposed to replace a telemetry system in an already existing note validator, the note validator and the old telemeter and antenna have to be removed before the Alio Note card reader can be installed. -
Page 8: Removing Existing Old Telemeter And Bezel From Note Validator
Fig. 5: Removing note validator bezel and mounting plate 3.4.2 Installing the Alio Note card reader Use two of four identical fixing screws enclosed in the hardware bag to fasten the card reader’s mounting plate to the note validator. Route card reader ribbon cable to the top and over the mounting plate. - Page 9 Alio™ Note Card Reader Installation Fig. 6: Monting the Alio Note card reader Fig. 7: Routing connection hub and ground cable Fig. 8: Connecting card reader to note validator Fig. 9: Reattaching note validator’s control board cover Reattach the control board cover.
-
Page 10: Mounting Connection Hub And Connecting Other Vendor Peripherals
Alio Note card reader will connect to the cellular network. After installation The Alio Note card reader is fully configured for operation from the factory and once mechanically installed onto a Talos or Series 2000 note validator and powered. The card reader is ready to accept cards for transactions. - Page 11 (natural or computer) without the prior written permission of Crane Payment Innovations (CPI). CPI reserves the right to change the product specifications at any time. While every effort has been made to ensure that the information in this publication is accurate, CPI disclaims any liability for any direct or indirect losses (howsoever caused) arising out of use or reliance on this information.
