Meter Stick Optics Components Kit Meter Stick Optics Components Kit
OS-7053
About the product About the pr oduct

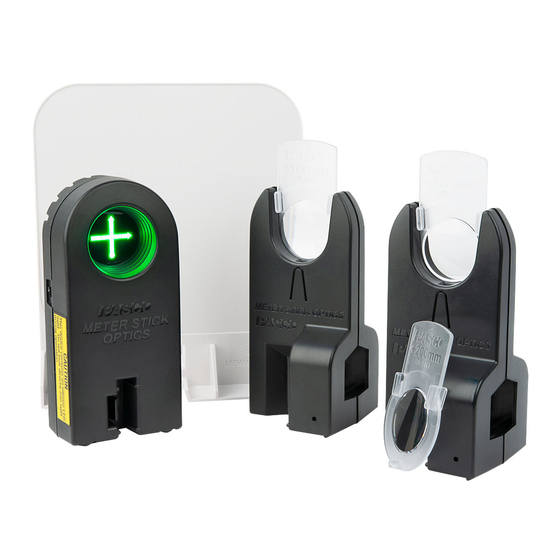

This set includes the components needed to perform a variety of
optics experiments with a meter stick. All the components are
designed to work with the Aluminum Meter Stick (ME-7032), but are
also compatible with most standard wood meter sticks.
What' What's included s included
• Light Source (OS-7054) Light Source (OS-7054)
Includes a USB cable for charging the battery.
• 2×Component Holder (OS-7055) 2×Component Holder (OS-7055)
• Viewing Screen (OS-7056) Viewing Screen (OS-7056)
• Lens Set (OS-7057) Lens Set (OS-7057)
Includes three lenses: -150 mm, +100 mm, and +200 mm.
• Storage Box Storage Box

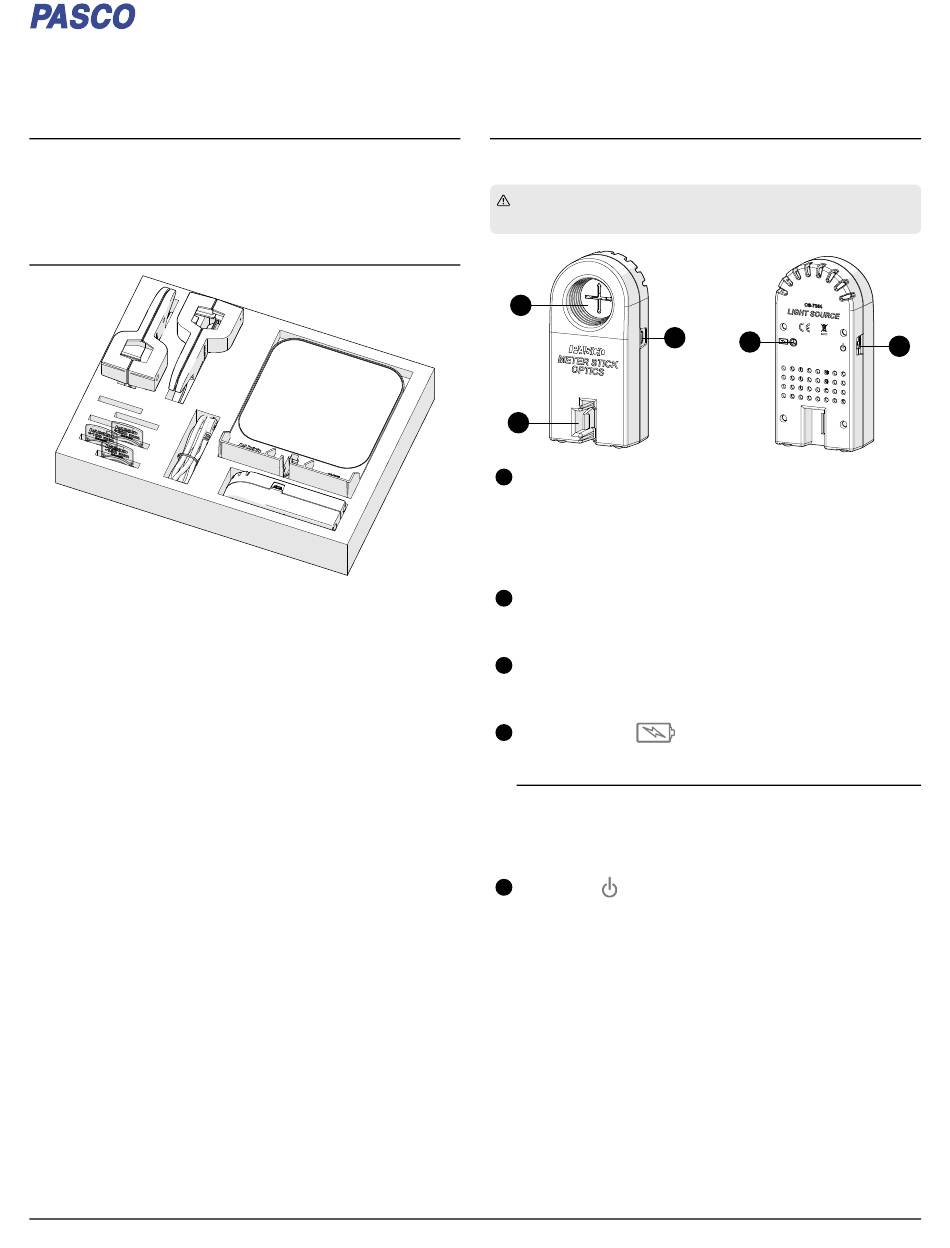

F F eatur eatures es
Light Sour Light Source ce
CAUTION: This device contains an intense LED light. Do not look CAUTION:
directly into the light during operation.
1
2
Object Object
1
The object is a backlit, translucent screen with crossed arrows
printed on it. The pattern is asymmetrical so you can tell if the
image is reversed or inverted. The horizontal and vertical arrows
are 2 cm long. The horizontal arrow also includes two lines that
are spaced 1 cm apart.
Meter stick slot Meter stick slot
2
Insert the zero end of the meter stick into this slot. This places
the object at the zero-centimeter mark.
USB charging port USB charging port
3
Use the USB cable to connect the USB port to a USB wall charger
to charge the battery.
Battery status light Battery status light
4
The light indicates the battery level and charging status:
L L
IGHT
Red, blink
Green, solid
Yellow, solid
Power switch Power switch
5
Use the switch to turn the light source on and off.
Product Guide
012-17016A
3
4
S S
TATUS
Low battery level
Fully charged
Charging
Meter Stick Optics Components Kit | 1
