PASCO OS-8458 Instruction Sheet

Introduction

PASCO models OS-8458 and OS-8525A are diode lasers
designed for use with PASCO Basic Optics systems. Each laser is
permanently mounted in a holder that can be snapped into a Basic
Optics bench or used freestanding on a tabletop. The holder
includes vertical and horizontal adjustment screws for fine-tun-
ing the angle of the laser beam. An included AC adapter provides
power.

Compatible Equipment

The laser can be used with PASCO Basic Optics equipment
including the Basic Optics System (OS-8515C), 120 cm Basic
Optics Bench (OS-8508), Diffraction Optics Kit (OS-8531), and
more. See the PASCO catalog or the on-line store at
www.pasco.com for a complete description of all Basic Optics
equipment.
800-772-8700
®
Basic Optics Diode Laser

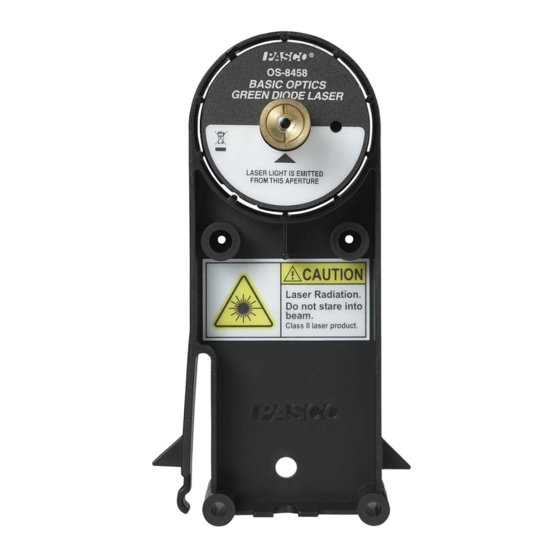

OS-8458 (green)
Green Laser
in mount

Included Equipment

Green Laser in Mount
or
Red Laser in Mount
AC Adapter, 9 VDC output
(not shown)
OS-8525A (red)
Red Laser
in mount
Part Number
OS-8458
OS-8525A
540-007 (120 VAC) or
540-027 and 516-006 (230 VAC)

Set-up

1. Attach the laser to a Basic Optics bench by aligning the base
of the holder with the central channel of the bench and push-
ing down to snap it in place.
2. Squeeze the base of the holder and slide the laser along the
bench to the desired location.
3. Connect the AC adapter to a wall outlet and the power input
jack.
I n s tr u c t i o n S he e t
0 1 2 - 0 9 8 6 7A

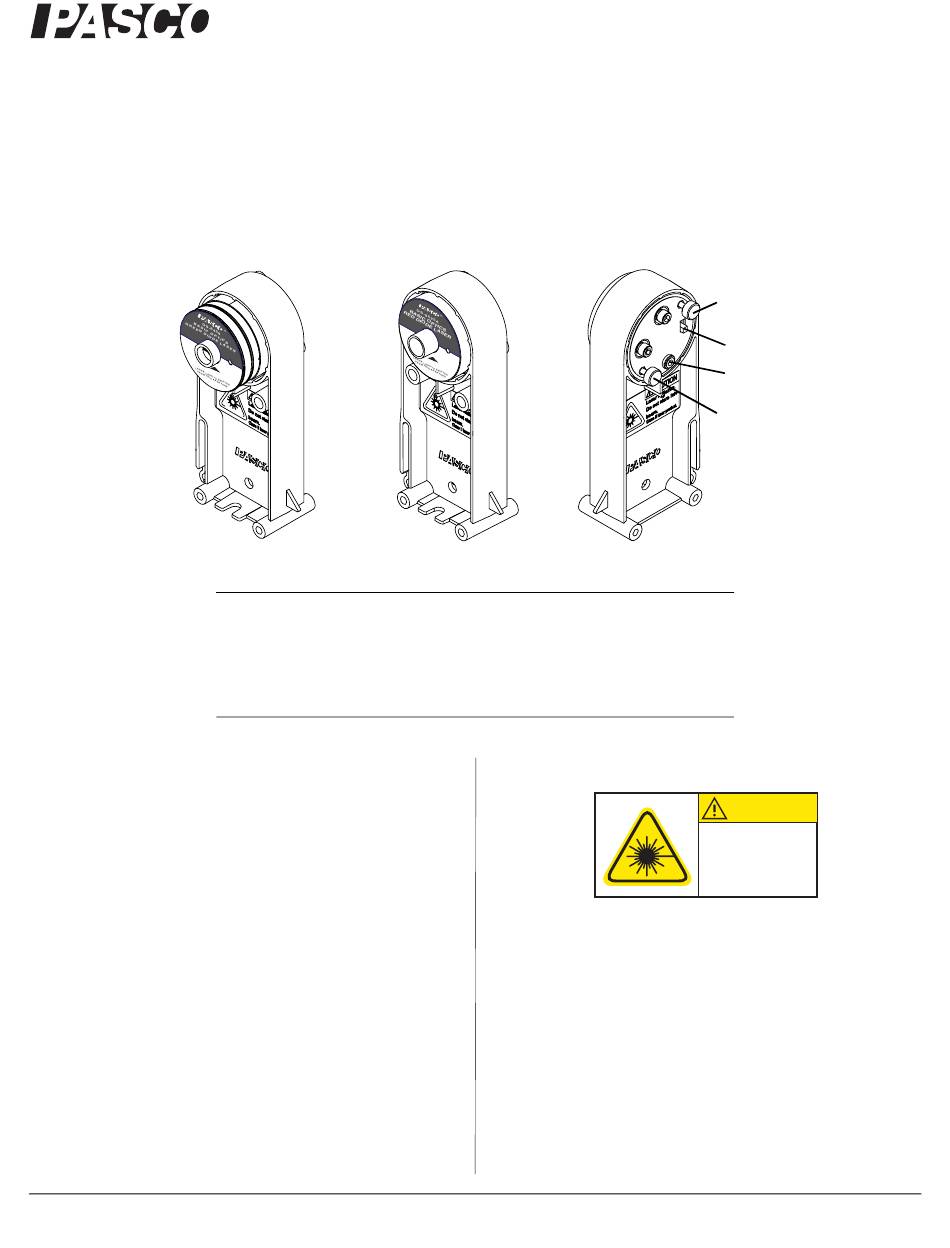

Horizontal adjustment
screw
Power switch
Power input jack
Vertical adjustment
screw
CAUTION
Laser Radiation.
Do not stare into
beam.
Class II laser product.
www.pasco.com
