User Instructions
Video Infrastructure 1080p30 System
High Definition Video Processor Module
DM368 Rapid Prototyping System
Z3-DM368-VI-RPS
Model Name:
DOC-USR-0011-01
Manual Version 1.04.19
Software Version 1.04.15
February 11, 2013
Before attempting to connect or operate this product, please read these
instructions carefully and save the manual for future use.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Z3 Technology Z3-DM368-VI-RPS
Summary of Contents for Z3 Technology Z3-DM368-VI-RPS

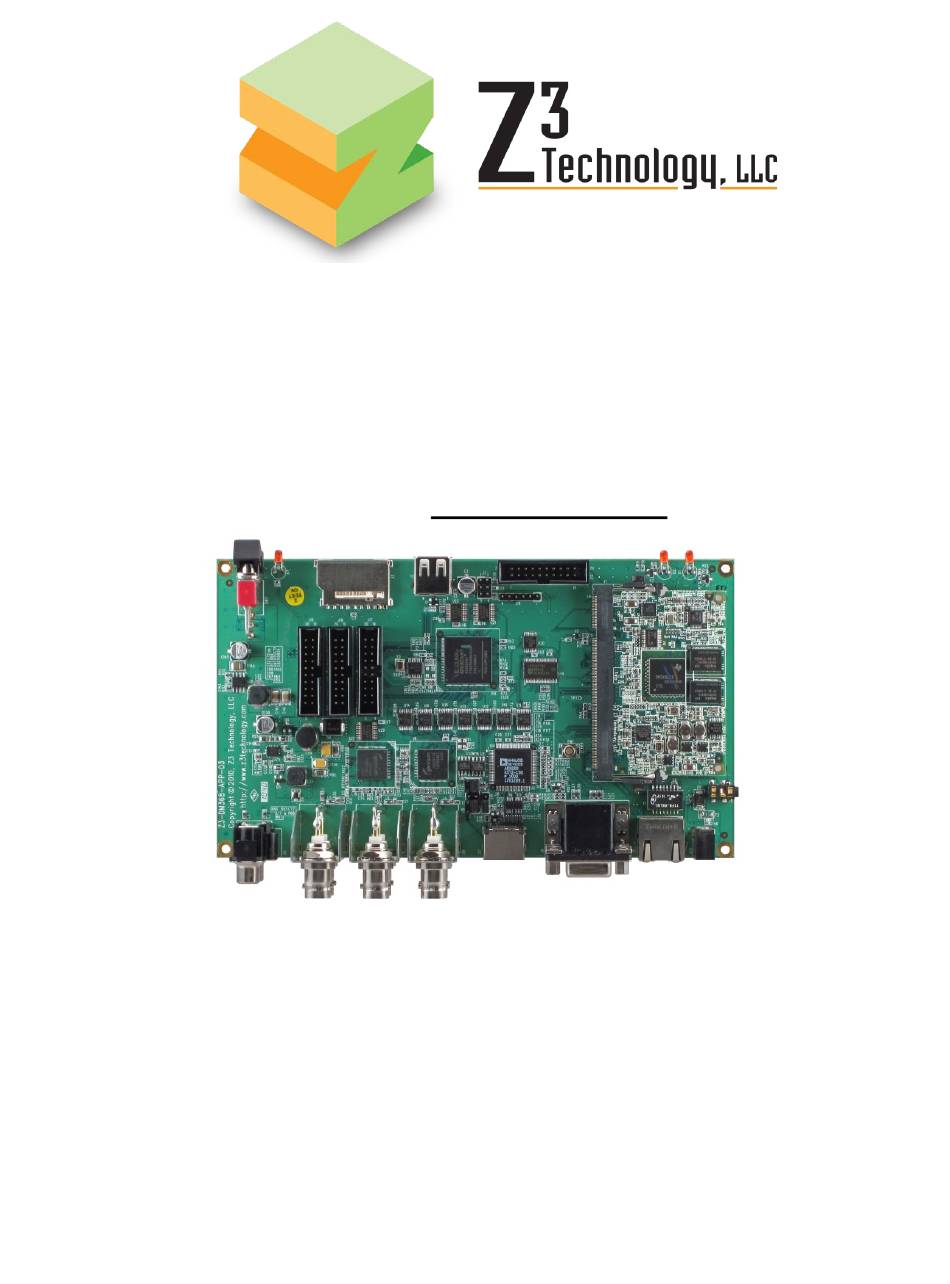

- Page 1 User Instructions Video Infrastructure 1080p30 System High Definition Video Processor Module DM368 Rapid Prototyping System Z3-DM368-VI-RPS Model Name: DOC-USR-0011-01 Manual Version 1.04.19 Software Version 1.04.15 February 11, 2013 Before attempting to connect or operate this product, please read these instructions carefully and save the manual for future use.
- Page 2 1.04.15 5/31/12 Updated SW version 1.04.16 7/16/12 Address Update 1.04.17 10/4/12 Removed Linux SDK sentence 1.04.18 2/11/13 Minor updates. 1.04.19 2/11/13 Format ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
-
Page 3: Table Of Contents
Demo ................................8 Encode & Stream with PC VLC Decode ....................8 Changing Network Parameters ........................13 Updating Firmware ............................14 Troubleshooting ............................15 ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 4: General Description

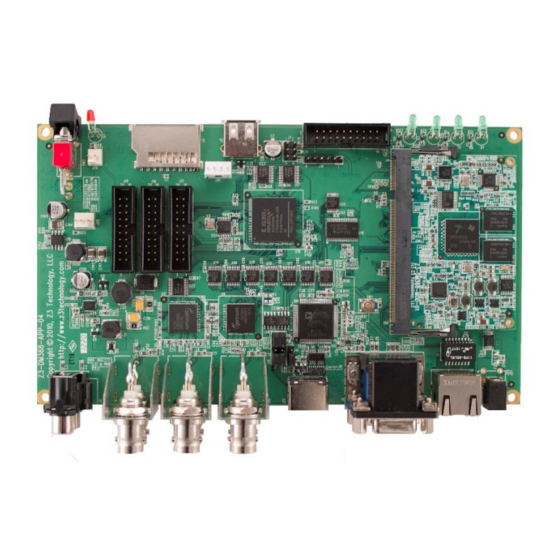

An application board, Z3-DM368-APP-04, is available from Z3 Technology and is included with the Z3-DM368-VI-RPS system. It measures 114mm x 203mm. This application board uses the I/O expansion capability of the Z3-DM368-MOD to implement additional functions not present in the base module. The Z3- DM368-APP-04 application board has HD-SDI, HDMI, DVI, Component, Composite and VGA inputs, Ethernet and ASI outputs and two analog stereo audio inputs. - Page 5 CONFIDENTIAL Z3-DM368-VI-RPS V1.04.19 114mm 203mm Figure 2 Software licensing, additional design services and support are available from Z3 Technology. Please contact Z3 at http://www.z3technology.com or e-mail at sales@z3technology.com. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
-
Page 6: Features
Two MMC/SD Card ports; one with support for Memory Stick Two UARTs for serial interface USB 2.0 OTG interface General Purpose I/O SPI and I2C ports ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 7: Applications
Whether the end application requires encode or decode media from storage or streaming, the readily available, production-ready Z3-DM368-MOD will simplify the overall system design, reducing time to market and costs. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 8: Demo
Ethernet RS-232 Analog Audio Top: Composite In Top: SDI/ASI In Bottom: Component Y Bottom: Component Pr Top: ASI/SDI Out Bottom: Component Pb ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... - Page 9 6. Connect HDMI out of Brite-View Box to the HDMI in of the TV One HD-SDI converter. 7. Connect Ethernet from Z3-DM368-VI-RPS to a PC. 8. Set the PC IP address to 192.168.1.110 – This is the default address the Z3-DM368-VI-RPS streams to. 9. Connect 12V Power supply to the Z3-DM368-VI-RPS.
- Page 10 +--------------------------------------------------------------------------------------------------------+ | S - Start streaming | W - Write configuration to flash | X - eXit to prompt +==============================================================+ Enter option: ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
- Page 11 Please note that you must type in “rtp://” before you enter your computer’s static IP address. 15. Open VLC 16. Under Media, press “Open File” and open the SDP file (provided by Z3 Technology on your Z3 Server Account). 17. You should now see video playing on VLC.
- Page 12 17. You should now see video playing on VLC. *It is possible that you may need to reboot if you do not see video in VLC ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
-
Page 13: Changing Network Parameters
Network parameters can be check by going into uboot mode and using the following command (for ipaddr as an example: >printenv ipaddr ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702... -
Page 14: Updating Firmware
The Programming SD Card provided is used to re-program the system by creating a new image or update from Z3 Technology. Do not use the “Programming SD Card” until you are ready to update your system. If you are ready to update your system: Locate the *.img file you want to use to update your system... -
Page 15: Troubleshooting
7. Troubleshooting No video is usually caused by networking issues. First: check IP address and Netmask. Ping PC from Z3-DM368-VI-RPS and ping Z3-DM368-VI-RPS from PC. Use direct connection from Z3-DM368-VI-RPS system to PC without router/customer network. Once video connections are established, then add in customer specific network equipment.
