Summary of Contents for Teledyne Lecroy PPE6KV-A

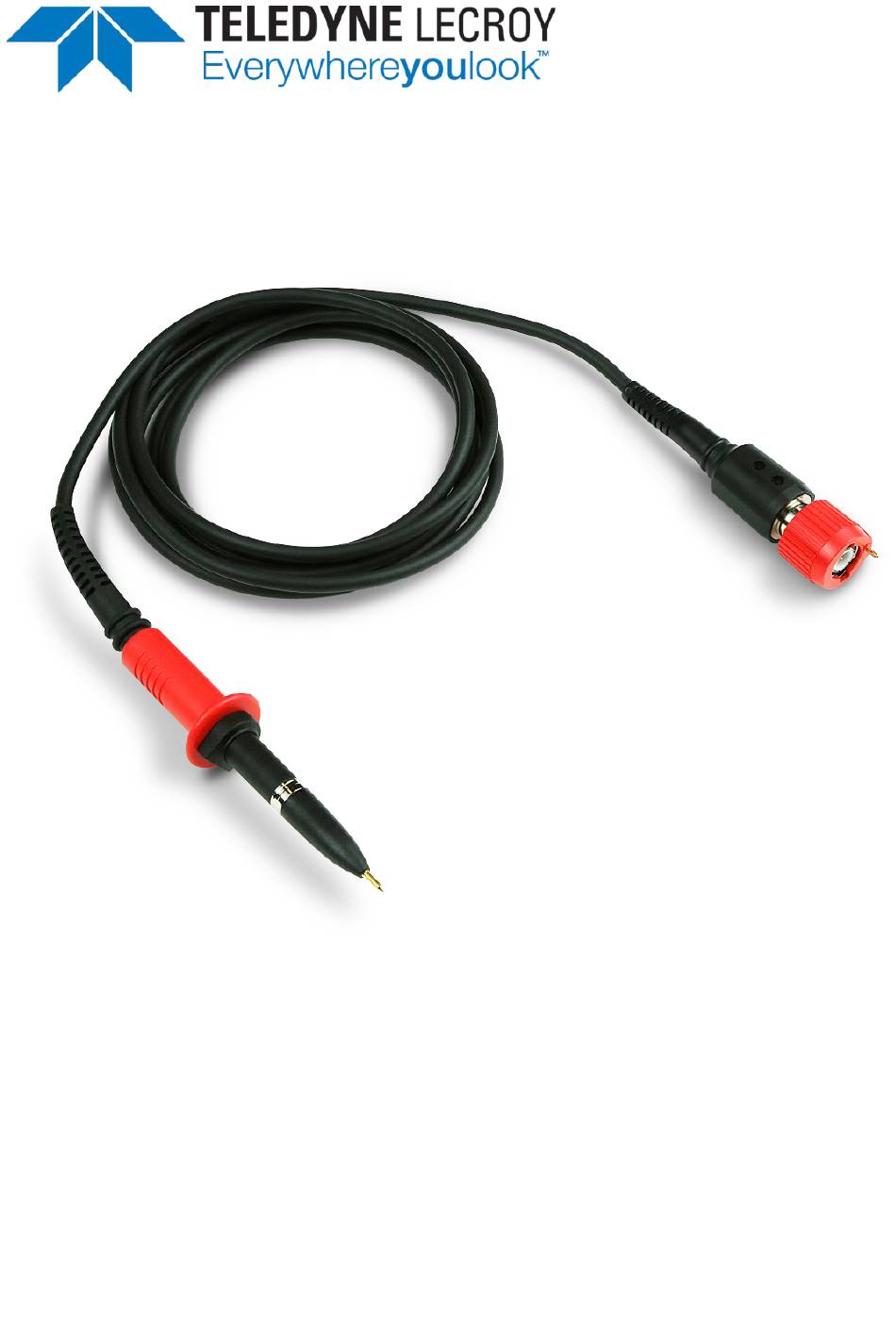

- Page 1 User Manual PPE6KV-A High Voltage Passive Probe...
- Page 2 Resale or unauthorized duplication of Teledyne LeCroy documentation materials is strictly prohibited. Teledyne LeCroy is a registered trademark of Teledyne LeCroy, Inc. Other product or brand names are trademarks or requested trademarks of their respective holders.
-
Page 3: Table Of Contents
Specifications ........................5 Electrical Characteristics ....................5 Environmental Characteristics ..................5 Physical Characteristics ....................5 Overview ..........................6 PPE6KV-A Accessories ....................7 Voltage Derating for Accessories .................. 8 Operation ..........................9 Grounding the Probe ....................... 9 Handling the Probe ......................9 Adjustment Procedures ...................... -
Page 4: Safety Instructions
PPE6KV-A High Voltage Passive Probe Safety Instructions Follow generally accepted safety procedures in addition to the precautions listed here. The overall safety of any system incorporating this product is the responsibility of the assembler of the system. IEC Safety Symbols These terms and symbols may appear on the probe body or in this manual. -
Page 5: Voltage Vs. Frequency Derating Curve
Do not operate with suspected failures. Before each use, inspect the probe, leads and accessories for damage such as tears or other defects. If any part is damaged, cease operation immediately and sequester the probe from inadvertent use. Voltage vs. Frequency Derating Curve Typical Voltage Derating PPE6KV-A 10 K 100000 10 M... -
Page 6: Input Impedance Vs. Frequency Derating Curve
PPE6KV-A High Voltage Passive Probe Input Impedance vs. Frequency Derating Curve Typical Input Impedance PPE6KV-A 100 M 10 M 100 K 10 K 1000 10000 100000 10 M 100 M Frequency (Hz) -
Page 7: Specifications
User Manual Specifications Electrical Characteristics Bandwidth 500 MHz Rise Time (10-90%) 800 ps (typical) Maximum Input Voltage (as defined in IEC 61010-031) CAT II 1000 Vrms or 1500 VDC 2, 3 CAT I 2000 Vrms No Measurement Category 4000 V transient overvoltage 6 kV (DC + peak AC) Input Resistance (system ) 50 MOhms ±1%... -
Page 8: Overview

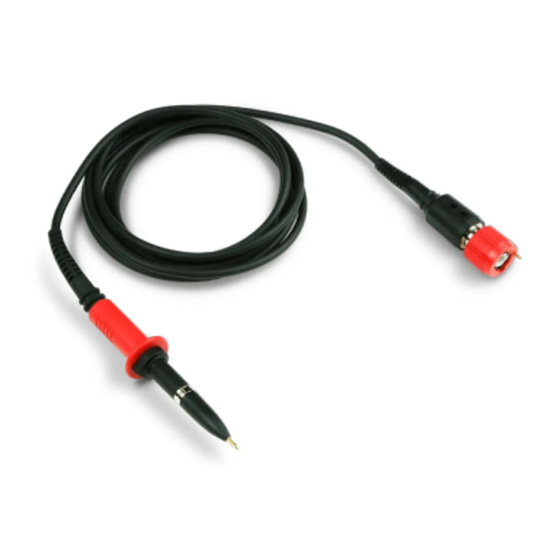

PPE6KV-A High Voltage Passive Probe Overview The PPE6KV-A is a general purpose, high voltage probe with a 100:1 attenuation. Its fast rise time and accurate frequency response make it suitable for a variety of measurement applications. The following items are delivered with the PPE6KV-A probe. Please check the delivery for completeness. -
Page 9: Ppe6Kv-A Accessories
User Manual PPE6KV-A Accessories... -
Page 10: Voltage Derating For Accessories
PPE6KV-A High Voltage Passive Probe Voltage Derating for Accessories Derated Max. Input Voltage for Accessory Accessory Voltage Rating Combined Probe & Accessory BNC Adapter 100 V No Measurement Category 100 V No Measurement Category Sprung Hook 1000 V CAT II... -
Page 11: Operation
User Manual Operation The PPE6KV-A is rated for 1000 Vrms or 1500 VDC CAT II. CAUTION: The maximum input voltage decreases as frequency increases. Observe the Voltage vs. Frequency derating curve on p.3 and the Voltage Rating for Accessories table on p.8. -
Page 12: Adjustment Procedures
PPE6KV-A High Voltage Passive Probe Adjustment Procedures The probe can be compensated for low frequency (LF) and high frequency (HF). Proper compensation of the probe is required to assure amplitude accuracy of the waveform being measured. Compensation matches the probe’s cable capacitance to the oscilloscope’s input capacitance. -
Page 13: Maintenance
A modest fee is charged for this service. Returning a Probe Contact your local Teledyne LeCroy service center for calibration or other service. If the product cannot be serviced on location, the service center will give you a Return Material Authorization (RMA) code and instruct you where to ship the product. -
Page 14: Warranty
Spare parts, replacement parts and repairs are warranted for 90 days. In exercising its warranty, Teledyne LeCroy, at its option, will either repair or replace any assembly returned within its warranty period to the Customer Service Department or an authorized service center. -
Page 15: Certifications
User Manual Certifications Teledyne LeCroy certifies compliance to the following standards as of the date of publication. See the EC Declaration of Conformity shipped with the product for current certifications. EC Declaration of Conformity - Safety The product meets the intent of EC Directive 2014/35/EU for Product Safety. Compliance... - Page 16 933979-00 Rev A October, 2021...
