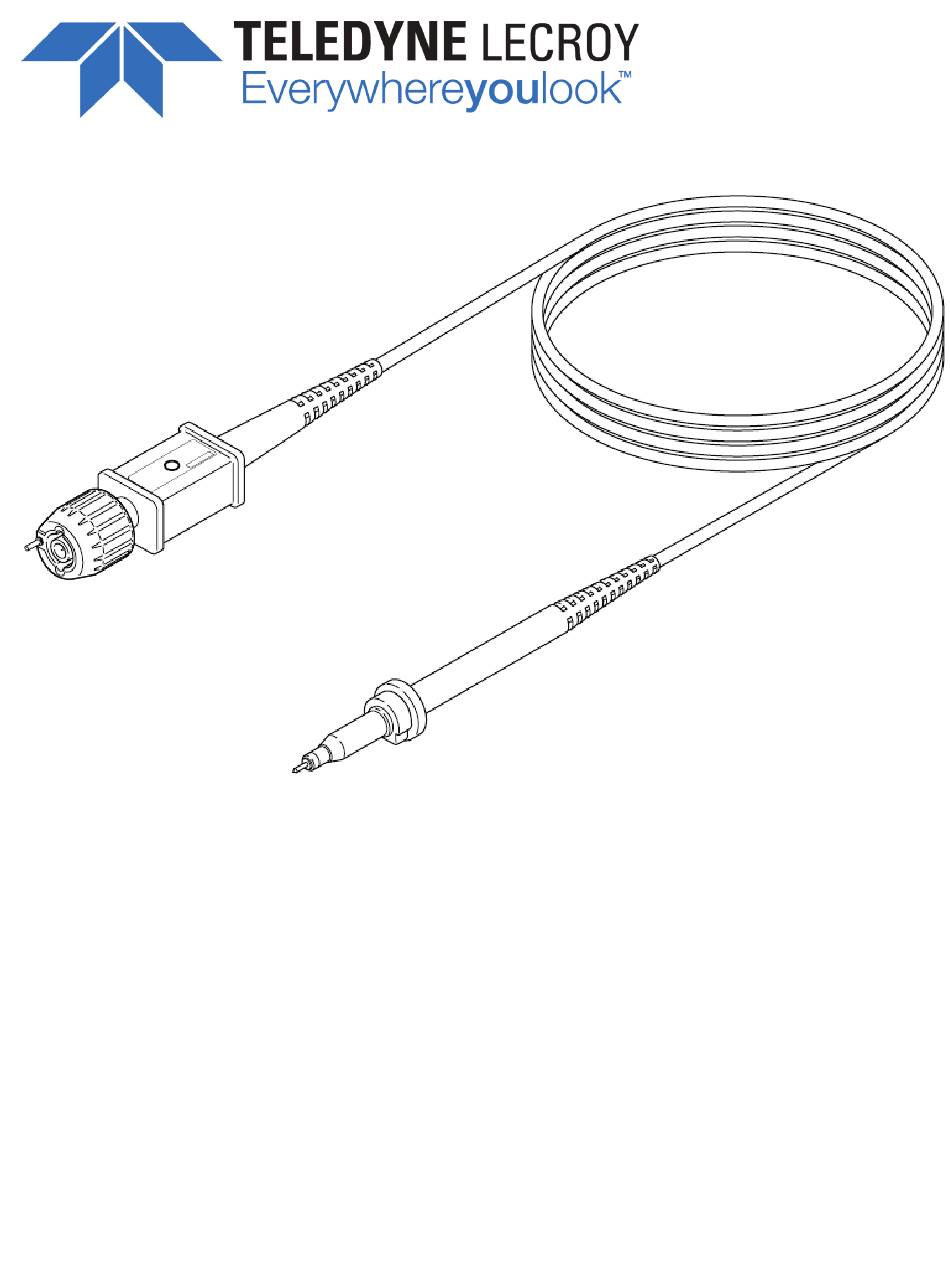

- Page 1 PP006C Passive Probe Operator’s Manual...
- Page 2 Teledyne LeCroy documentation for their own internal educational purposes. Teledyne LeCroy is a trademark of Teledyne LeCroy, Inc. Other product or brand names are trademarks or requested trademarks of their respective holders. Information in this publication supersedes all earlier versions.
-
Page 3: Specifications
Operator’s Manual Introduction The Teledyne LeCroy PP006C is a passive probe with a wide range of probing accessories. It is designed to give high-impedance probing capability to a circuit when attached to a Teledyne LeCroy oscilloscope. Specifications System Input Cable... - Page 4 PP006C Passive Probe Input Impedance Profile...
-
Page 5: Voltage Vs. Frequency Derating Curve
Operator’s Manual Voltage vs. Frequency Derating Curve... -
Page 6: General Safety Information
Connect only to grounded instruments. Use only with compatible Teledyne LeCroy oscilloscopes that have their BNC input connected to an earth ground. Do not connect the probe reference lead to any point which is at a potential other than earth ground. -
Page 7: Ec Declaration Of Conformity
This electronic product is subject to disposal and recycling regulations that vary by country and region. Many countries prohibit the disposal of waste electronic equipment in standard waste receptacles. For more information about proper disposal and recycling of your Teledyne LeCroy product, visit teledynelecroy.com/recycle. -
Page 8: Probe Compensation
PP006C Passive Probe Probe Compensation Proper compensation of the probe is required to assure amplitude accuracy of the waveform being measured by matching the probe to the oscilloscope’s input capacitance. Compensation should be adjusted whenever the probe is connected to or transferred between oscilloscopes. - Page 9 Do not subject the probe to solvents or solvent fumes as these can cause deterioration of the probe body, cables, and accessories. Service Refer all repairs to qualified service personnel. Contact Teledyne LeCroy at the following address to arrange to return the probe for service: Teledyne LeCroy, Inc.
-
Page 10: Replaceable Parts
PP006C Passive Probe Replaceable Parts Item Description Quantity Sprung Hook Ground Lead, 11 cm Ground Lead on probe tip IC Insulating Tip Color Bands (yellow, red, blue, green) 4 x 2 Trimmer Tool All replacement parts contained in Standard Accessory Replacement Kit PK116. -
Page 11: Warranty
The customer will be responsible for the transportation and insurance charges for the return of products to the service facility. Teledyne LeCroy will return all products under warranty with transportation charges prepaid. This warranty replaces all other warranties, expressed or implied, including, but not limited to, any implied warranty of merchantability, fitness, or adequacy for any particular purposes or use. - Page 12 924498-00 v2...
