Summary of Contents for Teledyne Lecroy PP016

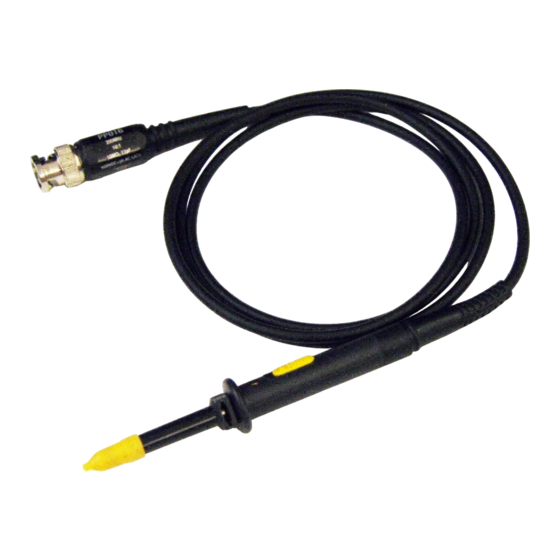

- Page 1 Operator’s Manual PP016 Passive Probe...
- Page 2 The customer will be responsible for the transportation and insurance charges for the return of products to the service facility. Teledyne LeCroy will return all products under warranty with transportation charges prepaid.
-
Page 3: Safety Instructions
Operator’s Manual Safety Instructions Follow generally accepted safety procedures in addition to the precautions specified in this section. The overall safety of any system incorporating this accessory is the responsibility of the assembler of the system. Symbols These terms and symbols may appear on the probe body or in this manual to alert you to important safety considerations. - Page 4 PP016 Passive Probe Do not overload; observe all terminal ratings. To avoid electric shock or fire, do not apply any potential to the probe leads that exceeds the maximum rating of the probe. Consult the respective oscilloscope product manual for further ratings information.
-
Page 5: Specifications
Operator’s Manual Introduction PP016 is a passive probe designed to be used with Teledyne LeCroy WaveAce oscilloscopes. Keep fingers behind the probe’s finger guard during use. Rated for indoor use only. Do not operate where conductive pollutants may be present. - Page 6 PP016 Passive Probe General Characteristics Cable Length 1.2 m Weight (probe only) 54 g Connector Type Voltage Derating Curve (Max. V vs. Frequency)
-
Page 7: Connectivity Accessories
The following accessories are included standard with the PP016: Standard Ground Lead Sprung Hook Color Coding Rings (set) Adjustment Tool Ground Attachment Replacement Probe Tip BNC Adaptor IC Test Tip The Standard Accessory Replacement Kit for the PP016 probe is P/N PKIT3-5MM-101. -
Page 8: Use And Maintenance
PP016 Passive Probe Use and Maintenance Cleaning The outside of the probe should cleaned with a soft cloth dampened with either deionized / distilled water or isopropyl alcohol. Allow the surface to dry completely before returning the probe to service. Never immerse the probe in any liquid. -
Page 9: Environmental Compliance
Operator’s Manual Certifications Teledyne LeCroy certifies compliance to the following standards as of the date of publication. See the EC Declaration of Conformity shipped with the product for current certifications. EC Declaration of Conformity - Safety The probe meets intent of EC Directive 2014/35/EU for Product Safety. - Page 10 PP016 Passive Probe...
- Page 12 928602-00 Rev A July, 2017...
