Vernier EasyLink EZ-LINK Quick Start Manual

Vernier EasyLink
(Order Code EZ-LINK)

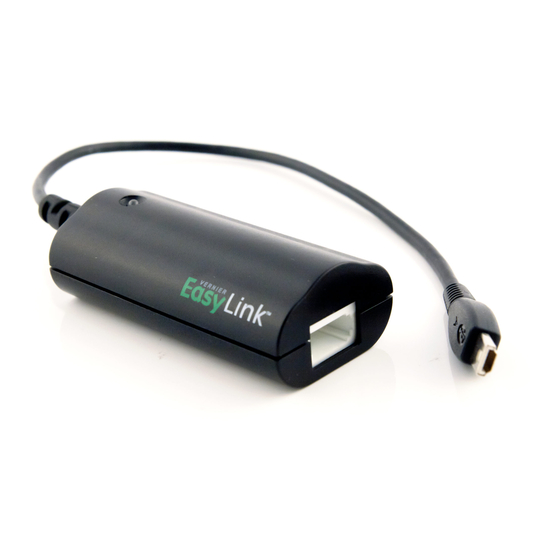

EasyLink is a single channel interface that plugs into the USB port of the TI-84 Plus
or TI-84 Plus Silver Edition calculator. EasyLink's flexibility and ease of use make
it perfect for a variety of activities in science and math. It supports over 30 analog
sensors, including Gas Pressure, pH, and Dual-Range Force, among others. (A
complete list of compatible sensors appears on the next page.)
Using the Vernier EasyLink with TI-84 Plus and TI-84 Plus Silver
Edition Graphing Calculators
Follow this general procedure when using the EasyLink with the TI-84 Plus family
of calculators.
1. Confirm that the EasyData application is installed on the calculator. Do that by
pressing the button and scrolling through the alphabetical list of
applications. When you know that EasyData is there, press
return to the home screen. If EasyData is not installed, refer to the Obtaining
EasyData section.
2. Connect one of the compatible sensors (listed in the chart) to EasyLink.
3. Connect EasyLink to the USB port on the calculator. The calculator will
automatically launch EasyData and detect the sensor.
4. You are now ready to collect data.
Data collection with EasyLink and the EasyData application is simple, yet powerful.
EasyData supports numerous data-collection modes, and EasyData version 2.0 or
newer has built-in analysis tools, such as linear regression, and statistical analysis.
For more information about EasyData, visit our web site at www.vernier.com/easy.

Power Considerations

EasyLink draws its power and the power for the sensor from the calculator battery.
Both of these power draws will affect the calculator battery lifetime. With average
use of most sensors, your calculator batteries should last a semester. Of course
battery life will be determined by the amount of use and the type of sensor.

Obtaining EasyData

If EasyData is not installed on your TI-84 Plus calculator, you will need to install the
application onto your calculator. EasyData can be downloaded free from our web
site (www.vernier.com/easy/easydata.html). Download the application to your
computer and then use a
TI-Connectivity™
the application from the computer to the calculator. Your calculator will also need
operating system version 2.30 or newer. If necessary, download the operating system
from the TI web site (education.ti.com) and install it on your calculator.
™
[QUIT] to
cable and TI Connect™ software to send

Compatible Analog Sensors

Go to www.vernier.com/sensors for more information on any of these sensors.
Order
Sensor
Code
25-g Accelerometer ACC-BTA
Low-g Accelerometer LGA-BTA
Barometer BAR-BTA
Charge Sensor CRG-BTA
◊
COL-BTA
Colorimeter
Conductivity Probe CON-BTA
Current Probe DCP-BTA
Differential Voltage Probe DVP-BTA
Dissolved Oxygen Probe *
DO-BTA
Dual-Range Force Sensor DFS-BTA
◊
*
EKG EKG-BTA
Electrode Amplifier EA-BTA
Extra-Long Temperature Probe TPL-BTA
Flow Rate Sensor FLO-BTA
Force Plate FP-BTA
Gas Pressure Sensor GPS-BTA
Hand Dynamometer HD-BTA
*
HGH-BTA
Hand-Grip Heart Rate Monitor
§
Instrumentation Amplifier INA-BTA
Ammonium Ion-Selective
NH4-BTA
*
Electrode
Calcium Ion-Selective
CA-BTA
*
Electrode
◊
This sensor can quickly drain the calculator batteries.
*
This sensor is not supported in EasyData version 1.0.
§
This is not an auto-ID sensor. It is supported in EasyData version 2.0 or newer, and
it must be manually set up from the Other Sensors option of the Setup menu.
Order
Sensor
Code
Chloride Ion-Selective
CL-BTA
*
Electrode
*
Nitrate Ion-Selective Electrode
NO3-BTA
Light Sensor LS-BTA
Magnetic Field Sensor MG-BTA
O Gas Sensor O2-BTA
2
ORP Sensor ORP-BTA
pH Sensor PH-BTA
Relative Humidity Sensor RH-BTA
Respiration Monitor Belt
RMB
(requires GPS-BTA)
Salinity Sensor SAL-BTA
Soil Moisture Sensor SMS-BTA
§
Sound Level Meter SLM-BTA
Spirometer SPR-BTA
Stainless Steel Temperature
TMP-BTA
Probe
Surface Temperature Sensor STS-BTA
Thermocouple TCA-BTA
TI Light Sensor TILT-BTA
*
Turbidity Sensor
TRB-BTA
UVA Sensor UVA-BTA
UVB Sensor UVB-BTA
Voltage Probe VP-BTA
