Summary of Contents for Kohler BEAM K-30939T

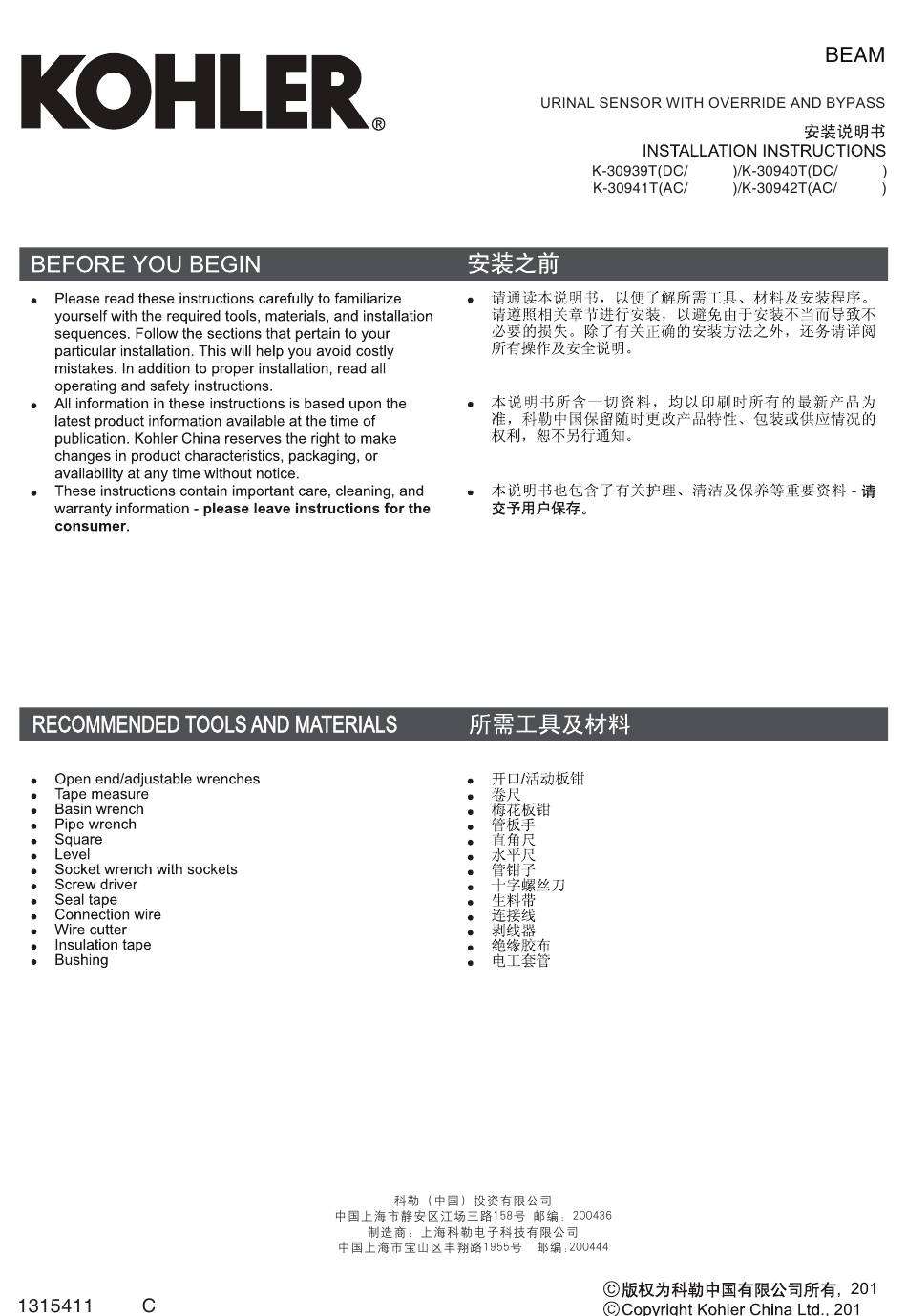

- Page 1 柏明 小便器感应器 直流型 直流型 交流型 交流型 -T01-...
- Page 2 Flushing Mode 冲洗方式...
- Page 3 K-30939T/K-30941T K-30940T/K-30942T /Model 0.5L 18645T-Y-0 4904T-ET/ER-0 4960T--ET/ER-0 4978T-ET/ER-0 4986T-ER-0 5016T-YET/YER-0 5777T-ET/ER-0 5889T-ET/ER-0 K-4960T-ET K-4960T-ER Spud Spud Spud Spud Spud K-4978T-ET K-4978T-ER Spud Spud Spud Spud Spud Spud...
- Page 4 K-5016T-YET K-5016T-YER Spud Spud Spud Spud Spud Spud K-18645T-Y-0 K-4986T-ER 1/2" Spud 1/2" Spud 420 40 Spud Spud Spud K-4904T-ER K-4904T-ET Spud Spud Spud 3/4" Spud Spud 3/4" Spud 2" N.P.S. 2" N.P.S.
- Page 5 K-5777T-ER K-5777T-ET Spud Spud Spud Spud 3/4" Spud G1/2 Spud K-5889T-ET K-5889T-ER Spud Spud Spud Spud 3/4" Spud 1/2" Spud...
- Page 6 产品需使用交流电源时， please clean the inside of water supply pipe before NOTE: connecting to the product. The end of bushing is not less than 5mm. 当使用交流电源时 手动推钮...
- Page 7 使用直流电源的情况时，从面板反面取下电池盒组件，用十字 螺丝刀旋开电池盒盖螺丝，装入2节7号碱性电池，拧紧电池盒 盖的螺丝后，将电池盒组件放回原处，然后连接电磁阀和控制 盒组件及电子按钮和电控盒组件的接插件，最后连接电源和控 制盒的接插件。 使用交流电源的情况时，连接电磁阀和控制盒组件的接插件， 最后连接交流电源和控制盒的接插件。 插头对应导线保持一 致。...
- Page 8 Installation AC power unit only for AC) Please （ match 16306T-NA AC power unit The way of installation is as below. Outlet downwards CAUTION: Outlet upwards a. Outlet of AC power unit upward prohibited. b. Do not connect 220V C power supply to DC wiring terminal.
- Page 10 Set Working Status 直流型 交流型 工作状态为二段式冲洗状态。 直流型 交流型 0.5L&1L flush mode change The default flush mold of sensor is 0.5 L, you can switch to the 1L flush mode with flushing control stick. Operate as follow: after initial power on, during the first 5 minutes, you can switch the flush mode by putting the flushing control stick near the right part of the sensor lens.
- Page 11 Manual Flushing This system can have a good sense toward most of the clothes. However, it may have abnormal sense to a very small number of clothes. If this occurs, you may use the mode of manual flushing. Notice: a. The button is a standby device that will be used when the sensor cannot perform correctly or the toilet is being repaired.
- Page 12 手动装置损坏 检查手动装置 电池指示灯每2秒闪烁一次 而不出水 电池指示灯每6秒闪烁一次， 电池可用一周时间左右 更换新电池 但此时可以正常工作...
- Page 14 Toxic or Hazardous Substance or Elements Part name Hexavalent Polybrominated Polybrominated Mercury Lead Cadmium Chromium biphenyls Diphenyl Ethers （PBB） （PBDE） (Cr(VI)） ○ ○ ○ ○ ○ ○ Cover Assy. ○ × ○ ○ ○ ○ Valve Assy. × ○ ○ ○...
- Page 15 ○ ○ ○ ○ ○ ○ ○ × ○ ○ ○ ○ × ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○...
