TIS VENERA Installation Manual

INSTALLATION MANUAL
VENERA TOUCH PANEL

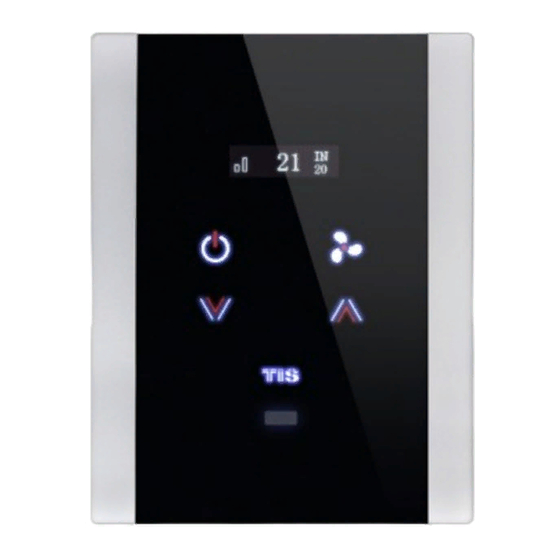

TIS VENERA AC THERMOSTAT
Model: VEN-AC-3R-HC
Power Supply
Output
Output switching current
Output service life
Output switching times
TIS AIR
Reaction time
Operating and display elements
Dimensions
Housing
BARCODE (UPC-A)
6 58921 79604 7
PRODUCT INFORMATION
This wall panel has three elegantly designed touch
buttons to ramp up and dim down lighting. You can
customize the dimming percentage based on your
personal aesthetic desires.
P R O D U C T S P E C I F I C AT I O N S
Input Voltage
Output Power
Protection
Current consumption
Number of channels
Nominal voltage
Nominal current per channel
Max Continues Current
Max. Switching Voltage
Mechanical Endurance
Operating time
Releasing time
Max. operating frequency
WIFI Signal
Protocol Standard
Display
touch buttons
Temp sensor
Infrared Receiver
Backlight
TIS AIR
Upgrading
Length × Width × Height
Materials
Internal Parts color
IP rating
110-240 VAC 50/60 Hz
3W / 12V
Built-in protection fuse
10-30 mA / 12 V DC
3 relays for cool, heat, fan control
110– 230 V AC 50/60 Hz
8 A / 230 VAC
8A/230 VAC
277VAC / 30VDC
> 10,000,000 OPS
8mS (at nomi. Volt)
5 mS (at nomi. Volt)
25 cycle/min
2.4 GHz
802.11 b/g/n
approx. 30ms
0.9-inch OLED Screen
4 touch Capacitive Control Buttons
Built-in Resistive Temp Sensor
Controlled by TIS Remote Control
2 colors Backlight indicators
TIS Protocol Messages & Commands
By WIFI Connection
85mm × 42mm × 109mm
PC fire-proof/ Glass in front
Black or White
IP 50
