TIS IO-AC-4G Installation Manual

insTallaTion manual
Tis io ThermosTaT Panel
ThermosTaT wiTh 4 Push-buTTon Panel
Model: IO-AC-4G
Input
Output
TIS Bus``
Operating and display
elements
Functions
Dimensions
Housing
barCoDe (uPC-a)
6 58921 80006 5
P R O D U C T S P E C I F I C AT I O N S
Temp / Humidity Sensor
Using Panel Addition
Using Panel Addition 3R
Using Panel Addition 3DL-12V
Using Panel Addition 2DL-IRE
Number of devices on 1 line
Bus voltage
Current consumption
Display
Rotating Knob
push buttons
TIS bus
Rotating / Press (knob)
1 Press (push button)
Long Press (push button)
Double click (push button)
Width × Length × Height
Materials
Casing color
Internal Parts color
IP rating
Automation Made Easy
ProDuCT inFormaTion

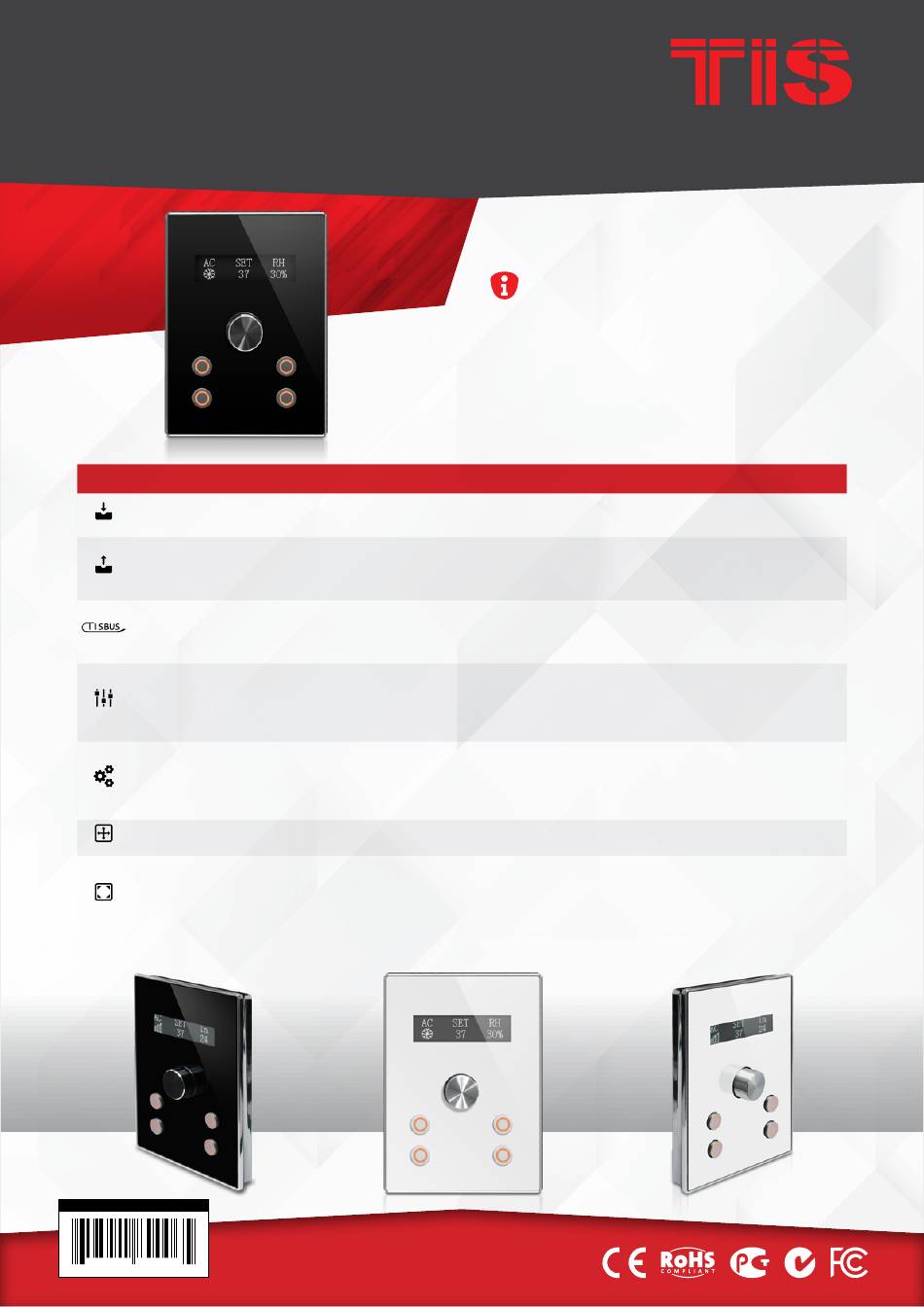

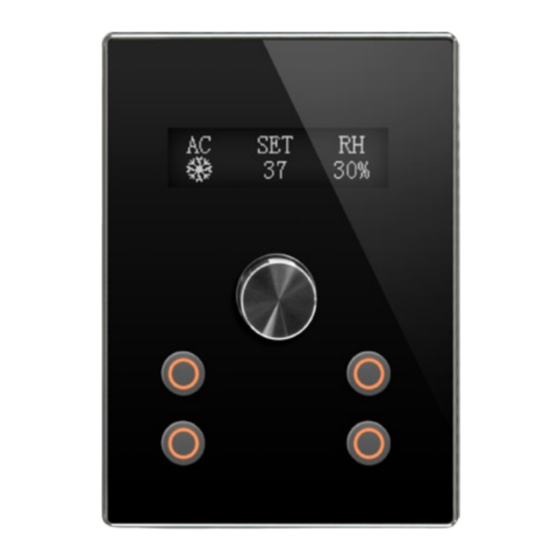

With its elegant shape and design, the IO AC 4G
is available in black or white and includes a stylish
rotating knob for air condition control and 4 push
buttons for lights and shutter control.
0-100C / 0-99% RH
2-3 Digital Input
3 Relay Output 3A/5A
12V DC 50mA Output
IR Emitter
Max. 64
12-32 V DC
<50 mA / 24 V DC
2.3-inch OLED Screen
×
1 Rotating and pushing knob
4 push buttons with White/Orange LED
TIS Protocol messages and commands
Change Temperature / AC ON-OFF
ON/OFF/Scene
Dim or ramp the lights
Extra Scene
90mm × 23mm(including knob) × 129mm
PC fire proof / acrylic in front
Silver plating frame, acrylic white or black
Black & White
IP 50
