TIS MARS MRS-8G Installation Manual

InsTallaTIOn ManUal

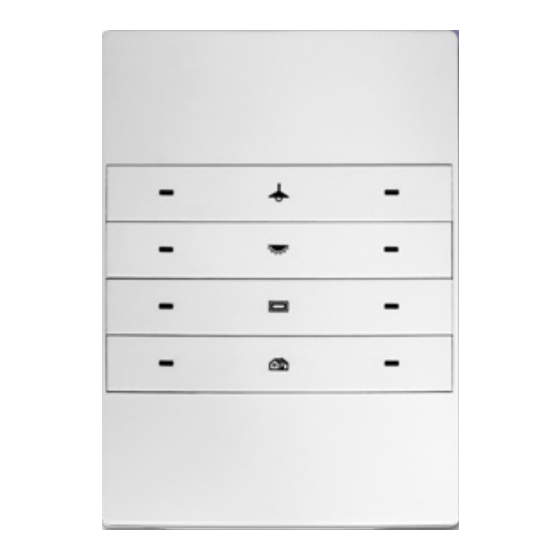

Mars 8 GanGs Wall Panel
Model: MRS-8G
Input
Output
TIS Bus
Operating and
display elements
Functions
Dimensions
Housing
BarCODe (UPC-a)
6 58921 79763 1
With its elegant shape and design, the Mars
Series is available in seven different colors with
stylish push buttons. This capability is of great
value to elderly people because they can enjoy a
combination of classic and new technology.
P R O D U C T S P E C I F I C AT I O N S
IR receiver
Using Panel Addition
Using Panel Addition 3R
Using Panel Addition 3DL-12V
Using Panel Addition 2DL-IRE
Number of devices on 1 line
Bus voltage
Current consumption
8/4 Buttons
Indicator LED
Backlight
TIS bus
Upgrading
1 Press
Long Press
Double click
IR receiver
Width × length × height
Materials
Casing color
Internal Parts color
IP rating
Automation Made Easy
PrODUCT InFOrMaTIOn
TIS Infrared code receiver
2-3 Digital Inputs
3 Relay Output 3A/5A
12V DC 50mA Output
IR Emitter
Max. 64
12-32 V DC
<35 mA / 24 V DC
For controlling lights, scene, etc...
8 Blue and Orange LED
2 pairs of White LED
TIS Protocol messages and commands
1 X mini USB for up-to-date upgrading
ON / OFF / Scene
Dim or ramp the lights
Extra Scene
Music, scene, lights control
90mm × 125mm × 15mm (21mm peak)
PC anti fire
Black, Titanium, Silver, White, Champaign,
Coal, Bronze or special color
Black & White
IP 30
