INSTALLATION INSTRUCTION
Please read this instruction carefully before installation .

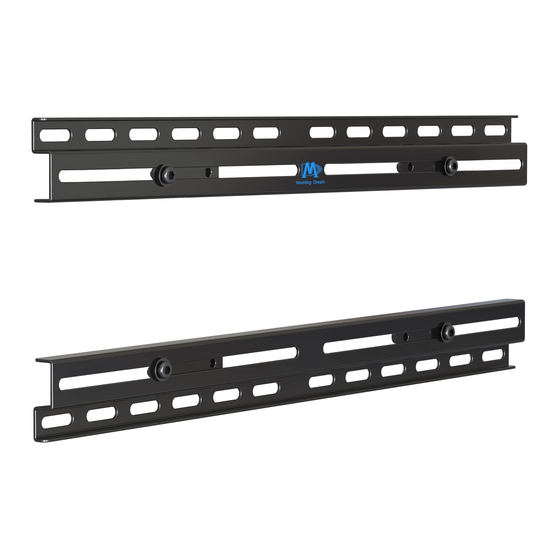

Extended wall plate for wall mounts with 16" or less than
16" wall plate, fits wood stud spacing from 18" to 24".
Weight capacity: 70 kg (154 lbs) .
Thank you for purchase!We strive to provide products and services of exceptional quality.
We sincerely invite you to write an unbiased review. For parts missed or installation problems,
please contact us at telephone (626) 604-9048 (USA) Mon - Fri 10am - 6pm (Pacific time) or email
us by customerservice@mountingdream.com , so that we may solve the issue for you.
MODEL : MD5232
A1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mounting Dream MD5232
Summary of Contents for Mounting Dream MD5232
- Page 1 INSTALLATION INSTRUCTION MODEL : MD5232 Please read this instruction carefully before installation . Extended wall plate for wall mounts with 16" or less than 16" wall plate, fits wood stud spacing from 18" to 24". Weight capacity: 70 kg (154 lbs) .
- Page 2 Avertissement de sécurité: bienvenue à choisir le support suspendu de téléviseur de la Vue Aérienne, pour garantir un usage sécurité du produit MD5232, préserver le risque contre vous-même et des tiers et éviter ledommage des biens, veuillez lire soigneusement ce manuel avant l'usage. Si vous ne pouvez pas comprendre cette notice ou en cas de doute sur la sécurité...
- Page 3 Before getting started, let's make sure this mount is perfect for you! Is the width of your wall plate16 inches or less than 16 inches? ≤16" Yes --- Perfect! No --- This mount is NOT compatible. Does your TV (including accessories) plus wall plate weigh more than 154 lbs (70kg)? NO --- Perfect! 154 lbs...
-
Page 4: Part List
For parts shortage or damage, please contact us directly by customerservice@mountingdream.com. Attention: New delivery will be timely arranged to replace missed or defective parts. Installation tools: Installation tools: 2M 2M Socket wrench Band tape Stud finder Pencil 1/2"(13mm) Hammer (7/32") Electrodrill Wood Drill Bit Part list ：... - Page 5 Step 2 Wall plate installation : Wall plate installation in wood stud To avoid potential body injury or property damage: 1. Wall mount must be installed into wood stud's center, not drywall alone. 2. Drywall covering the wood stud must not exceed 16 mm (5/8 in.). 3.
-
Page 6: Product Dimensions
Step 3 Locate the wall mount unit by sliding left or right then tighten Bolts (I) with Allen Key (K) to lock the mount at desired position. Product dimensions: 635mm 610mm(24") 406mm(16") 20mm 63.5mm 406mm(16") 102mm(4") If you have any questions about the installation, please feel free to contact us at telephone (626) 604-9048 (USA) Mon - Fri 10am - 6pm (Pacific time) or email us by customerservice@mountingdream.com .
