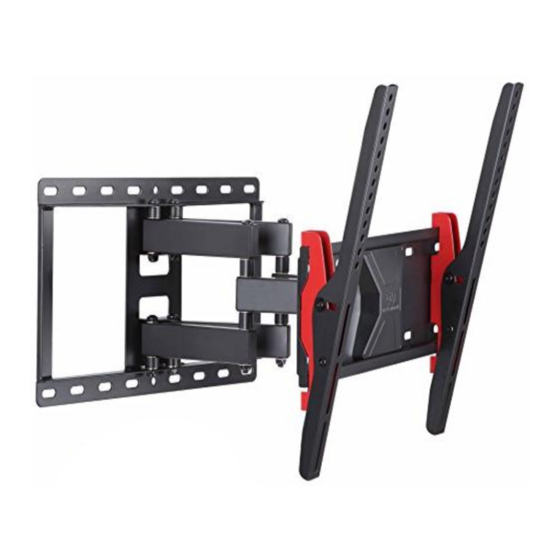

- Page 2 Avertissement de sécurité: bienvenue à choisir le support suspendu de téléviseur de la Vue Aérienne, pour garantir un usage sécurité du produit MD2731, préserver le risque contre vous-même et des tiers et éviter ledommage des biens, veuillez lire soigneusement ce manuel avant l'usage. Si vous ne pouvez pas comprendre cette notice ou en cas de doute sur la sécurité...
- Page 3 Before getting started, let's make sure this mount is perfect for you! Is your TV VESA equal to/greater than 100x100mm and equal to/less than 400x400mm? MAX:400mm Yes --- Perfect! MAX:400mm No --- This mount is NOT compatible. Does your TV (including accessories) weigh more than 99 lbs (45kg)? NO --- Perfect! 99 lbs...
-
Page 4: Part List
For parts shortage or damage, please contact us directly by customerservice@mountingdream.com. Attention: New delivery will be timely arranged to replace missed or defective parts. Installation tools: Installation tools: Socket wrench Band tape Band tape Screwdriver Stud finder Pencil Pencil 1/2"(13mm) Hammer Hammer 3/8"... -
Page 5: Installation Hardware
Installation hardware ： For concrete installations ONLY CAUTION: Do not use in drywall or wood H--Lag bolt I--Concrete Anchor J--M8 Washer 4pcs 4pcs 4pcs K--4mm Allen key Hardware for TV installation ： a--M4X12 bolt b--M5X12 bolt c--M6X12 bolt d--M8X20 bolt 4pcs 4pcs 4pcs... -
Page 6: Installation Instruction
Installation instruction ： Step 3 Step 1 Step 2 7/32" Take down the Mounting Use 7/32" diameter drill bit to Use a stud finder to make marks at drywall with template, put 4 lag bolts (H) drill 4 pilot holes at marked the edges of two studs, and mark wood stud through the washers (J) into the... - Page 7 Step 4 Select TV hardware (diameter / length / combination) Bolt diameter: hand thread bolts into threaded inserts on the back of TV to determine correct bolt diameter (M4, M5, M6, M8). Bolt length: verify adequate thread engagement with bolts or bolts/spacers combination.We recommend thread engagement by at least 5 turns.
- Page 8 Step 5 Attach brackets to the back of the TV: For the TV with flat back, mount the wall plate with bolt/washer combination of a+k, b+k, c+l, d. M4 Diameter Bolt M5 Diameter Bolt Tips: Make sure the ends of TV brackets (B) with round holes are facing upward.
- Page 9 For TV with irregular back, mount the wall plate with bolt/washer/spacer combination of e+k+i, f+k+i, g+l+i, h+j+m. (Spacers are highly recommended to be added, thus enlarge the space between TV and brackets for better functionality.) Attention: Because of the TV with inset mounting hole which makes the VESA holes recessed, you might need spacers to fill the gap.
- Page 10 Step 6 Hang the pre-assembled TV unit on the wall plate unit, then fasten the safety bolt ① with screwdriver. ① Attention: Cables are highly recommended to plug in before hanging the TV on to the wall plate. Two people are recommended to hold and position the TV .
- Page 11 Step 7 Level the mount (±3°): Loosen 4 leveling bolts by MAXIMUM 2 turns to adjust the TV plate, and fasten leveling bolts with Allen key (K) after adjustment. (figure 1) WARNING: Don't over loose the bolts to prevent the TV falling off. ±3°...
- Page 12 This mount can be separated into two parts and use as two mounts, as follow: Step 1 Remove the four bolts ② with Allen key (K) to separate wall plate unit (A) into two parts. ② Ⅰ Ⅱ...
- Page 13 Part Ⅰ can be adapted to the TV with 75x75mm (3inx3in),100x100mm (4inx4in) VESA dimension. Mount it on the wall (steps have been mentioned before), then use the bolts and washers combination of a+k , b+k , c+l to fasten TV to part Ⅰ . M4 Diameter Bolt M5 Diameter Bolt M6 Diameter Bolt...
- Page 14 Part Ⅱ fits for TV with MAX 400mmx400mm (16inx16in) VESA dimension. Take the following steps as reference. You may need to purchase extra lag bolts and concrete anchors according to your actual condition. Installation instruction ： Step 4 Step 2 Step 3 16"...
- Page 15 Step 5 Hang the pre-assembled TV unit on the wall plate unit, then fasten the safety bolt ① with screwdriver. ① Attention: Cables are highly recommended to plug in before hanging the TV on to the wall plate. Two people are recommended to hold and position the TV .
-
Page 16: Product Dimensions
Step 6 Adjust the tilting angles (from +3° to -15°): Hold and pull TV to your desired angle,and please remember to fasten the bracket bolts with Allen key (K) after the adjustment. -15° +3° Product dimensions: 435mm Max:400mm 430mm +3° Max:400mm -15°...
