INSTALLATION INSTRUCTION
Please read this instruction carefully before installation .
Fits for most 42-60 inches Plasma, LCD and LED TVs .
Weight capacity: 45 kg (99 lbs) .
Thank you for purchase!We strive to provide products and services of exceptional quality.
We sincerely invite you to write an unbiased review. For parts missed or installation problems,
please contact us at telephone (626) 604-9048 (USA) Mon - Fri 10am - 6pm (Pacific time) or email
us by customerservice@mountingdream.com , so that we may solve the issue for you.
Max VESA:600X400mm/24X16"

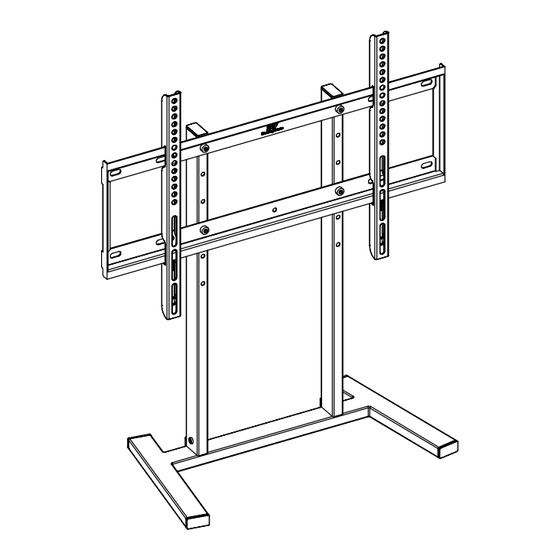

MODEL : MD5108
(A2)
Advertisement
Related Manuals for Mounting Dream MD5108
Summary of Contents for Mounting Dream MD5108
- Page 1 INSTALLATION INSTRUCTION Max VESA:600X400mm/24X16" MODEL : MD5108 Please read this instruction carefully before installation . Fits for most 42-60 inches Plasma, LCD and LED TVs . Weight capacity: 45 kg (99 lbs) . Thank you for purchase!We strive to provide products and services of exceptional quality.
- Page 2 Avertissement de sécurité: bienvenue à choisir le support suspendu de téléviseur de la Vue Aérienne, pour garantir un usage sécurité du produit MD5108, préserver le risque contre vous-même et des tiers et éviter ledommage des biens, veuillez lire soigneusement ce manuel avant l'usage. Si vous ne pouvez pas comprendre cette notice ou en cas de doute sur la sécurité...
- Page 3 Before getting started, let's make sure this mount is perfect for you! Is your TV VESA equal to/greater than 75x75mm and equal to/less than 600x400mm? MAX:600mm MAX:400mm Yes --- Perfect! No --- This mount is NOT compatible. Does your TV (including accessories) weigh more than 99 lbs (45kg)? 99 lbs (45kg)
- Page 4 For parts shortage or damage, please contact us directly by customerservice@mountingdream.com. Attention: New delivery will be timely arranged to replace missed or defective parts. Installation tools: 2M 2M Band tape Bubble level Screwdriver Gifts ： HDMI cable Velcro cable tie Bubble level 3pcs Part list ：...
-
Page 5: Stand Unit
TV mounting hardware ： a--M4X12 bolt b--M5X12 bolt c--M6X12 bolt d--M8X25 bolt 4pcs 4pcs 4pcs 4pcs e--M4X30 bolt f--M5X30 bolt g--M6X35 bolt h--M8X50 bolt 4pcs 4pcs 4pcs 4pcs i--M5/M6 j--M8 spacer k--M5/M4 l--M6 washer m--10mm n--2.5mm spacer 4pcs 4pcs washer 4pcs 4pcs spacer 4pcs spacer 8pcs... - Page 6 Step 2 Assemble plate to the stand unit by using bolts with allen key According to your TV size to choose suitable holes in the stands to get a good distance from the desk. ③...
- Page 7 Step 3 Select TV hardware (diameter / length / combination) Bolt diameter: hand thread bolts into threaded inserts on the back of TV to determine correct bolt diameter (M4, M5, M6, M8). Bolt length: verify adequate thread engagement with bolts or bolts/spacers combination.
- Page 8 Step 4 Attach brackets to the back of TV ① For the TV with flat back, mount the brackets withbolt/washer/spacer combination. Tips: Make sure the ends of TV brackets with round holes are facing upward. Round hole is for upper VESA hole, and long slot hole for lower VESA hole.
- Page 9 ② For TV with inset mounting holes, mount the brackets with bolt/washer/spacer combination. (Spacers are highly recommended to be added, thus enlarge the space between TV and brackets for better functionality.) Tips: Make sure the ends of TV brackets with round holes are facing upward.
- Page 10 Step 5 Hang the TV unit on the plate: Hang the top hooks of the brackets over the top bar of the plate. Make sure the hooks securely hang in the bar . (figure 1) Then attach the lower ends of the brackets to the lower bar of the plate.
-
Page 11: Product Dimensions
Step 6 To take down the TV from the mount. You need loosen the safety screws with a screwdriver. Then hold the TV upward to unlock the top hooks from the top bar. ① Product dimensions: 650mm MAX:600mm 66mm 222mm 430mm 400mm 747mm...
