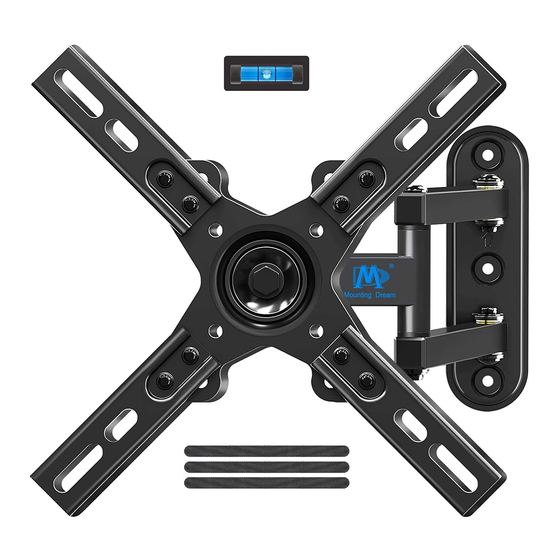

INSTALLATION INSTRUCTION
VESA:
50X50 mm/2X2"
75X75 mm/3X3"
100X100 mm/4X4"
VESA:
200X100 mm/8X4"
Please read this instruction carefully before installation .
Fits for most 17-39 inches Plasma, LCD and LED TVs .
Weight capacity: 15 kg (33 lbs) .
Thank you for purchase! We strive to provide products and services of exceptional quality.
We sincerely invite you to write an unbiased review. For parts missed or installation problems,
please contact us at telephone (626) 604-9048 (USA) Mon - Fri 10am - 6pm (Pacific time) or email
us by customerservice@mountingdream.com, so that we may solve the issue for you.
VESA:
150X150 mm/6X6"
VESA:
200X200 mm/8X8"
MODEL : MD2462
1
2
TV
(A5)

Advertisement

loading
Need help?

Need help?

Do you have a question about the MD2462 and is the answer not in the manual?

Questions and answers

Related Manuals for Mounting Dream MD2462

Summary of Contents for Mounting Dream MD2462

  • Page 1 VESA: 200X200 mm/8X8" VESA: 200X100 mm/8X4" MODEL : MD2462 Please read this instruction carefully before installation . Fits for most 17-39 inches Plasma, LCD and LED TVs . Weight capacity: 15 kg (33 lbs) . Thank you for purchase! We strive to provide products and services of exceptional quality.
  • Page 2 WARNING! Safety Warning: Thank you for choosing Mounting Dream TV mount. For safe application of model MD2462, and preventing yourself or others from danger or property loss, please read through this manual before use. If you do not understand these instructions or have any doubt over safety of installation, please contact qualified contractor or Mounting Dream customer service.
  • Page 3 Before getting started, let's make sure this mount is perfect for you! Is your TV VESA 50x50mm/2x2in, 75x75mm/3x3in, 100x100mm/4x4in, 150x150mm/6x6in, 200x100mm/8x4in, 200x200mm/8x8in? MAX:200mm/8" Yes --- Perfect! MAX: 200mm/8" No --- This mount is NOT compatible. Does your TV (including accessories) weigh more than 33 lbs (15kg)? NO --- Perfect! 33 lbs...

  • Page 4: Part List

    For parts shortage or damage, please contact us directly by customerservice@mountingdream.com. Attention: New delivery will be timely arranged to replace missed or defective parts. Installation tools: Socket wrench Band tape Pencil Stud finder Screwdriver 1/2"(13mm) 3/8" (10mm) 5/32" (4mm) Hammer Electrodrill Masonry Drill Bit Wood Drill Bit...
  • Page 5 f--M5X30 bolt g--M6X35 bolt h--Open-end wrench i--M5/M6 j--M8 spacer 4 pcs 4 pcs 1pcs spacer 4pcs 4pcs k--M5/M4 l--M6 washer m--10mm n--2.5mm washer 4pcs 4pcs spacer 4pcs spacer 8pcs Concrete wall anchor (NOT INCLUDED) Contact us at telephone (626) 604-9048 (USA) Mon - Fri 10am - 6pm (Pacific time) or email us by customerservice@mountingdream.com have...
  • Page 6 Step 2 Wall plate installation: Option 1 Wall plate installation in wood stud To avoid potential body injury or property damage: 1. Wall mount must be installed into wood stud's center, not drywall alone. 2. Drywall covering the wood stud must not exceed 16 mm (5/8 in.). 3.
  • Page 7 Option 2 Wall plate installation on concrete wall To avoid potential personal injury or property damage: 1.Make sure the arrow on the wall plate unit is upward as the picture shows. 2. Solid concrete wall's thickness should be more than 100mm/4", and the wall must be CAUTION capable of supporting five times the weight of the TV plus the mount.
  • Page 8 Step 3 Select TV hardware (diameter / length / combination) Bolt diameter: hand thread bolts into threaded inserts on the back of TV to determine correct bolt diameter (M4, M5, M6, M8). Bolt length: verify adequate thread engagement with bolts or bolts/spacers combination.
  • Page 9 Step 4 Attach TV plate to the back of the TV: Installation option 1: If the VESA dimension is 50mm x 50mm (2in x 2in), 75mm x 75mm (3in x 3in) or 100mm x100mm (4in x 4in), take the following image as reference.
  • Page 10 Installation option 2: If the VESA dimension is 150mm x 150 mm(6in x 6in), attach the extension arms to the TV plate by fastening Bolt with Allen key (see Configuration 1) as shown below. 150mm 150mm Configuration 1 If the VESA dimension is 200mm x 100mm(8in x 4in), attach the extension arms as shown below.
  • Page 11 After the assembly of extension arms, attach the assembled plate to the back of TV (Following steps only take Configuration 3 as example): Mount the wall plate with bolt/washer/spacer combination figure 3 figure 3 Bolt/spacer/washer combination options (only for reference) options spacer Tips: You have to remove the inner circle of 2.5mm washer (n) in order to fit the M6 (g)
  • Page 12 Step 5 Hang the pre-assembled TV unit on the wall plate. Fasten TV plate a screwdriver by bolts with .(Below images only show the TV plate with extension arms--Configuration 3). figure 4 ⑨...

  • Page 13: Product Dimensions

    Step 6 Make sure the TV unit is horizontal, you can adjust the TV plate (360 degrees) to level the TV by loosening the nut with open-end wrench ( h ), and tighten the nut after adjustment. ( figure 5 Adjust the tilting angle (from +15°...
