Populas ACCELLA Assembly Instructions

L-shape desk

Advertisement

Quick Links

PARTS INCLUDED:
LEG PACKAGE:
(3) Telescoping Legs
A
(1) Hand-Crank Assembly
B
(3) Feet
C
(3) Table Support Brace
D
(1) Mending Plate
E
(1) Hardware Bag
F
TABLE PACKAGE:
(1) Main Work Surface
G
(1) Return Work Surface
H
(1) Long Cross Brace
I
(1) Short Cross Brace
J
TOOLS NEEDED:
Phillips Screwdriver
7/16" Open Ended
Wrench
3/16" Hex Key Wrench
2720 West Idaho Street Boise, ID 83702

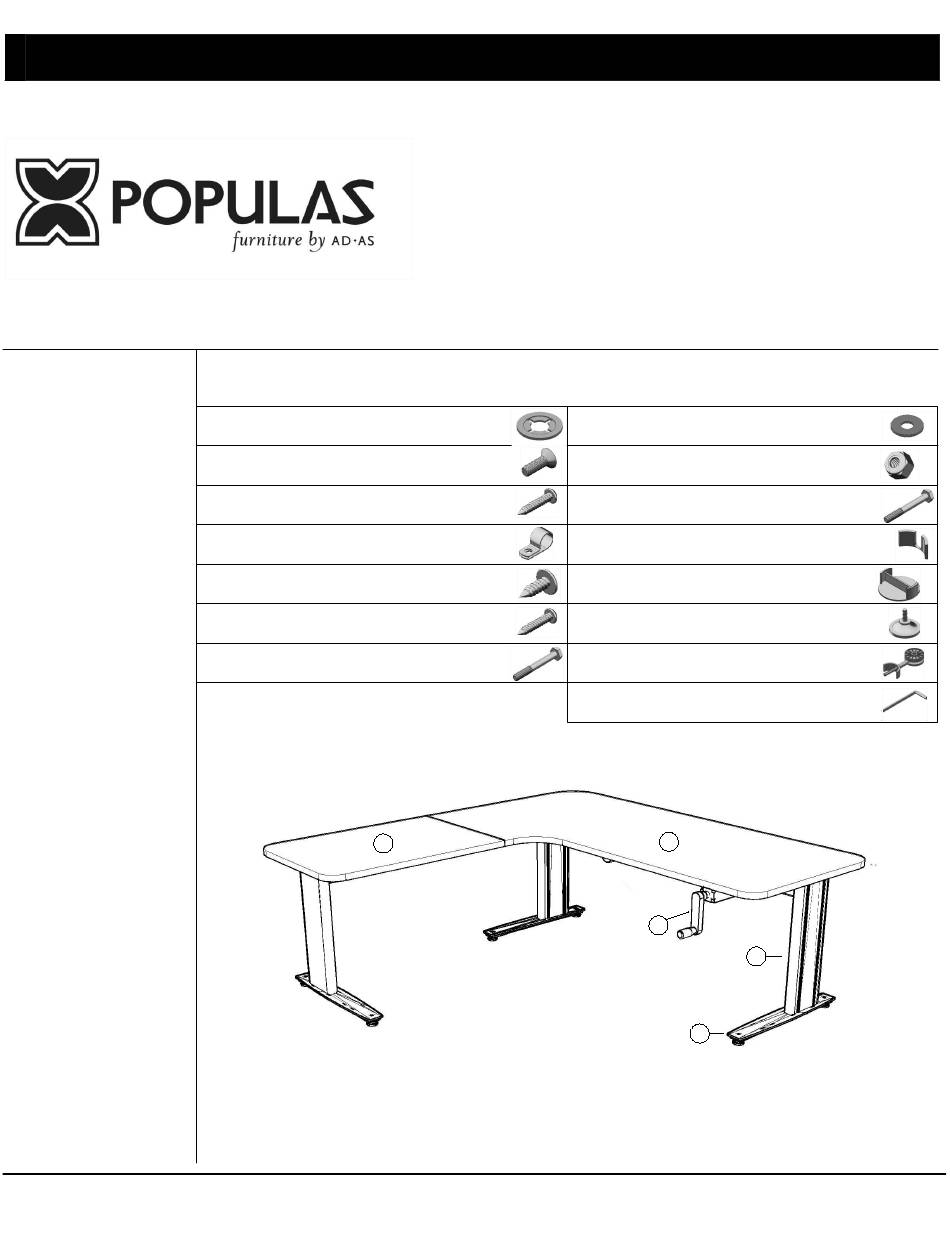

ASSEMBLY INSTRUCTIONS
ACCELLA L-SHAPE DESK
Workstations, desks, and tables with hand-crank adjustment
HARDWARE BAG WITH:
K (3) 1/2" Retaining Washer
L (12) M8 Flat Head Fasteners
M (52) #10 x 1" Phillips Fasteners
N (28) Clamps: (20 Small, 8 Large)
O (28) #8 x 1/2" Phillips Fasteners
P (3) #8 x 2 1/2" Phillips Fasteners
Q (1) 1/4"- 20 x 3/4" Hex Head Cap Fasteners
H
Toll Free 800-957-2720
R (1) 1/4" x 3/4" Flat Washer
S (4) 1/4"- 20 Nylon Insert Stop Nuts
T (3) 1/4"- 20 x 2" Hex Head Cap Fasteners
U (3) Curved Connector Caps
V (4) Connector Plates
W (6) Levelers (Or Optional Casters)
X (2) Draw Bolt Assembly
Y (2) Allen Key
G
B
A
C
Fax 208-362-8009 www.populasfurniture.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the ACCELLA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Populas ACCELLA

  • Page 1 ASSEMBLY INSTRUCTIONS ACCELLA L-SHAPE DESK Workstations, desks, and tables with hand-crank adjustment HARDWARE BAG WITH: PARTS INCLUDED: LEG PACKAGE: (3) Telescoping Legs K (3) 1/2" Retaining Washer R (1) 1/4" x 3/4" Flat Washer (1) Hand-Crank Assembly (3) Feet L (12) M8 Flat Head Fasteners S (4) 1/4"- 20 Nylon Insert Stop Nuts...
  • Page 2 Hand-Crank Assembly Step 1: Preparation (1) Long Hose Feet Unpack and identify all parts. Place Table Top (G and H) upside down on padded surface and (2) Short Hoses Table Braces identify front edge. Main Work Surface Be careful not to damage the hydraulic hose Front Edge Return Work Surface...
  • Page 3 Step 4: Telescoping Leg Attachment L M8 Flat Head Fasteners D Table Brace Insert piston rectangular foot into center of Telescoping Leg (A). Piston hose must route through "mouse hole" Piston Hose Piston of Telescoping Leg (A). Align Telescoping Leg (A) with hose port facing center.
  • Page 4 Step 7: Cross Brace Attachment Cross Brace Hardware is shipped attached. Insert Hex Head of 1/4" - 20 x 2" Fastener (T) of Long Cross Brace (I) into rear slotted grove of Telescoping Legs (A) of Main Work Surface (G). Long Cross Brace (I) sits flat to the underside of the Main Work surface (G).
