PARTS INCLUDED:
HARDWARE BAG WITH:
LEG PACKAGE:
A (2) Telescoping
J (2) 1/2" Retaining Rings
Legs
B (1) Motor Assembly
K (8) 5/16"-18 x1" Hex Head Fasteners
C (1) Control Box
D
(1) Control Switch
L (8) 5/16" Spring Washers
E
(2) Feet
F
(4) Toe Caps
M (4) 1/4" x1" Hex Head Lag Fasteners
G (2) Table Support
Brace
(1) Hardware bag
N (4) 1/4" Spring Washers
O (6) #10 x 1" Phillips Fasteners
P (19) Clamps: (13 Small, 6 Large)
TABLE PACKAGE:
H (1) Cross Brace
I (1) Table Top
TOOLS NEEDED:
Phillips Screwdriver
Pliers or
Snap Ring Pliers
7/16" Wrench
1/2" Socket Wrench

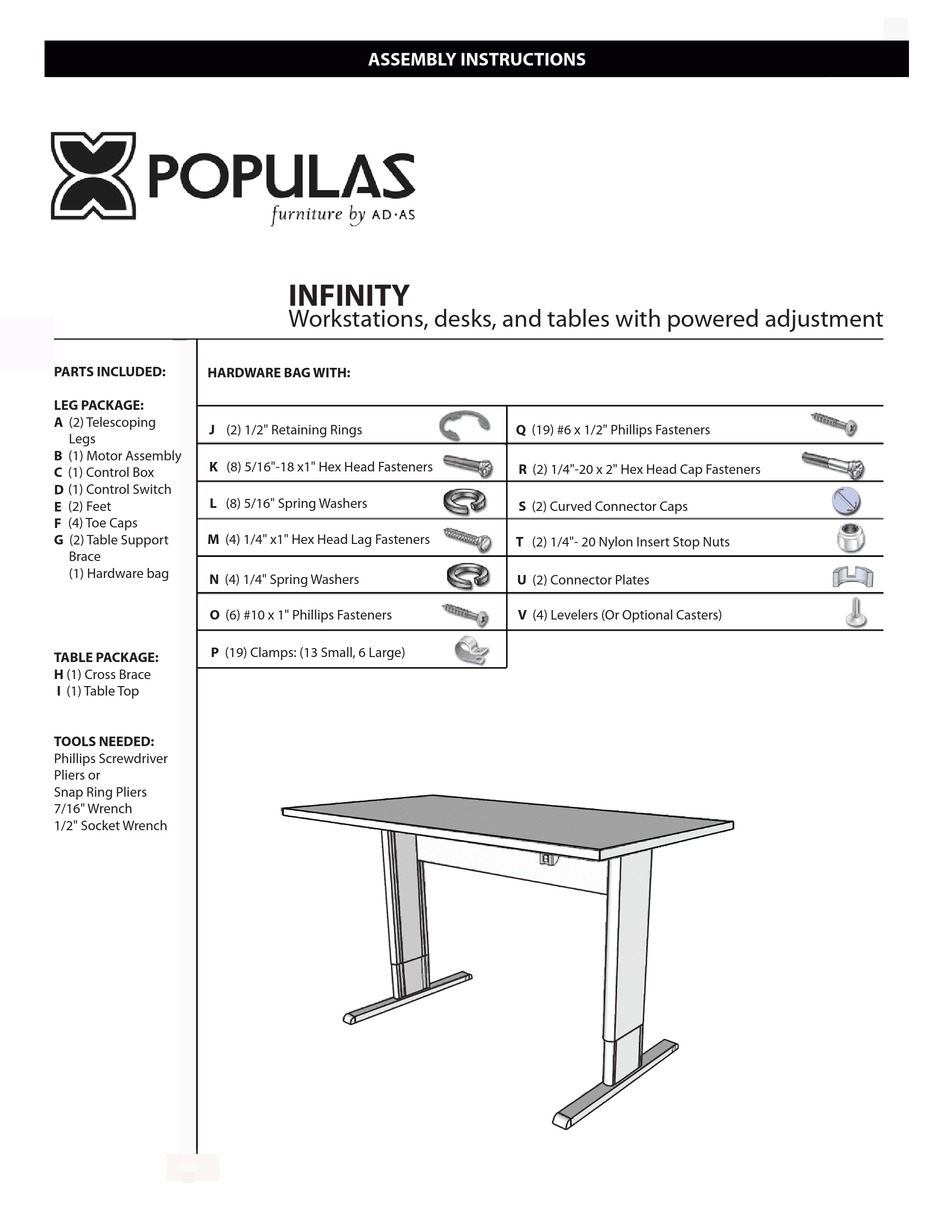

ASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS
INFINITY
INFINITY
Workstations, desks, and tables with powered adjustment
WORKSTATIONS, DESKS, AND TABLES WITH POWERED ADJUSTMENT
Q (19) #6 x 1/2" Phillips Fasteners
R (2) 1/4"-20 x 2" Hex Head Cap Fasteners
S (2) Curved Connector Caps
T (2) 1/4"- 20 Nylon Insert Stop Nuts
U (2) Connector Plates
V (4) Levelers (Or Optional Casters)
Advertisement
Related Manuals for Populas INFINITY
Summary of Contents for Populas INFINITY
- Page 1 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS INFINITY INFINITY Workstations, desks, and tables with powered adjustment WORKSTATIONS, DESKS, AND TABLES WITH POWERED ADJUSTMENT PARTS INCLUDED: HARDWARE BAG WITH: LEG PACKAGE: A (2) Telescoping J (2) 1/2" Retaining Rings Q (19) #6 x 1/2" Phillips Fasteners...
- Page 2 Step 1: Preparation Unpack and identify all parts. Place Table Top (I) Motor Assembly Table Top Table Braces upside down on padded surface and identify front edge. Be careful not to damage the hydraulic hose Step 2: Piston Attachment Insert hydraulic piston into center hole of Table Support Brace (G) with piston top recessed inside brace.
- Page 3 Step 4: Motor Assembly Positioning Place Motor Assembly (B) on table as shown. Step 5: Table Support Brace Attachment Place Table Support Brace (G) and Motor Assembly (B) on underside of table. Locate four guide holes for Motor Assembly (B). Position Telescoping Leg with shorter hose (A, right) Align Table Support Brace (G) to guide holes and attach using four 1/4"...
- Page 4 Step 7: Control Box Attachment and Motor Placement Align Control Box (C) with pre-drilled holes and attach to the table (number side down) using two #10 x 1" Phillips Fasteners (O). Small Clips Plug motor wire into Control Box (C). Secure wires Large Clips with two Large Clamps (P) using #6 x 1/2"...
-
Page 5: Step 11: Operation And Use
Step 10: Feet Attachment Attach Feet (E) to Telescoping Legs (A) using two 5/16"-18 x 1" Hex Head Fasteners (K) and 5/16" Spring Washers (L) tighten using 1/2" socket wrench. Gently insert Toe Caps (F) into feet until nut aligns with hole.
