PARTS INCLUDED:
HARDWARE BAG WITH:
LEG PACKAGE:
A
(2) Telescoping
J (2) 1/2" Retaining Rings
Legs
B
(1) Motor Assembly
K (8) 5/16"-18 x 1" Hex Head Fasteners
C
(1) Control Box
D
(1) Control Switch
E
L (8) 5/16" Spring Washers
(1) Hardware bag
M (4) 1/4" x 1" Hex Head Lag Fasteners
TABLE PACKAGE:
F
(1) Table Support
Brace
N (4) 1/4" Spring Washers
G
(1) Table Top
(1) Foot Brace
H
O (9) #8 x 3/4" Phillips Fasteners
(1) Cross Brace with
I
Hardware
P (22) Clamps: (16 Small, 6 Large)
TOOLS NEEDED:
Phillips Screwdriver
Slotted Screwdriver
7/16" Open Ended
Wrench
1/2" Socket Wrench
7/32" Hex Key Wrench
(For optional Casters)
2720 West Idaho Street Boise, ID 83702
ASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS
INFINITY MULTA SERIES
INFINITY
Workstations, desks, and tables with powered adjustment
WORKSTATIONS, DESKS, AND TABLES WITH POWERED ADJUSTMENT
These instructions apply to the following models:
In nity 4836GT
In nity 7236
In nity 6648
Toll Free 800-957-2720
Q (22) #6 x 1/2" Phillips Fasteners
R (2) 1/4"- 20 x 2" Hex Head Cap Fasteners
S (2) Curved Connector Caps
T (2) 1/4"- 20 Nylon Insert Stop Nuts
U (2) Connector Plates
V (4) Levelers (Or Optional Casters)
In nity Command Center 6040CR
In nity Command Center 7234
Fax 208-362-8009
www.populasfurniture.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Populas Infinity 4836GT
Summary of Contents for Populas Infinity 4836GT

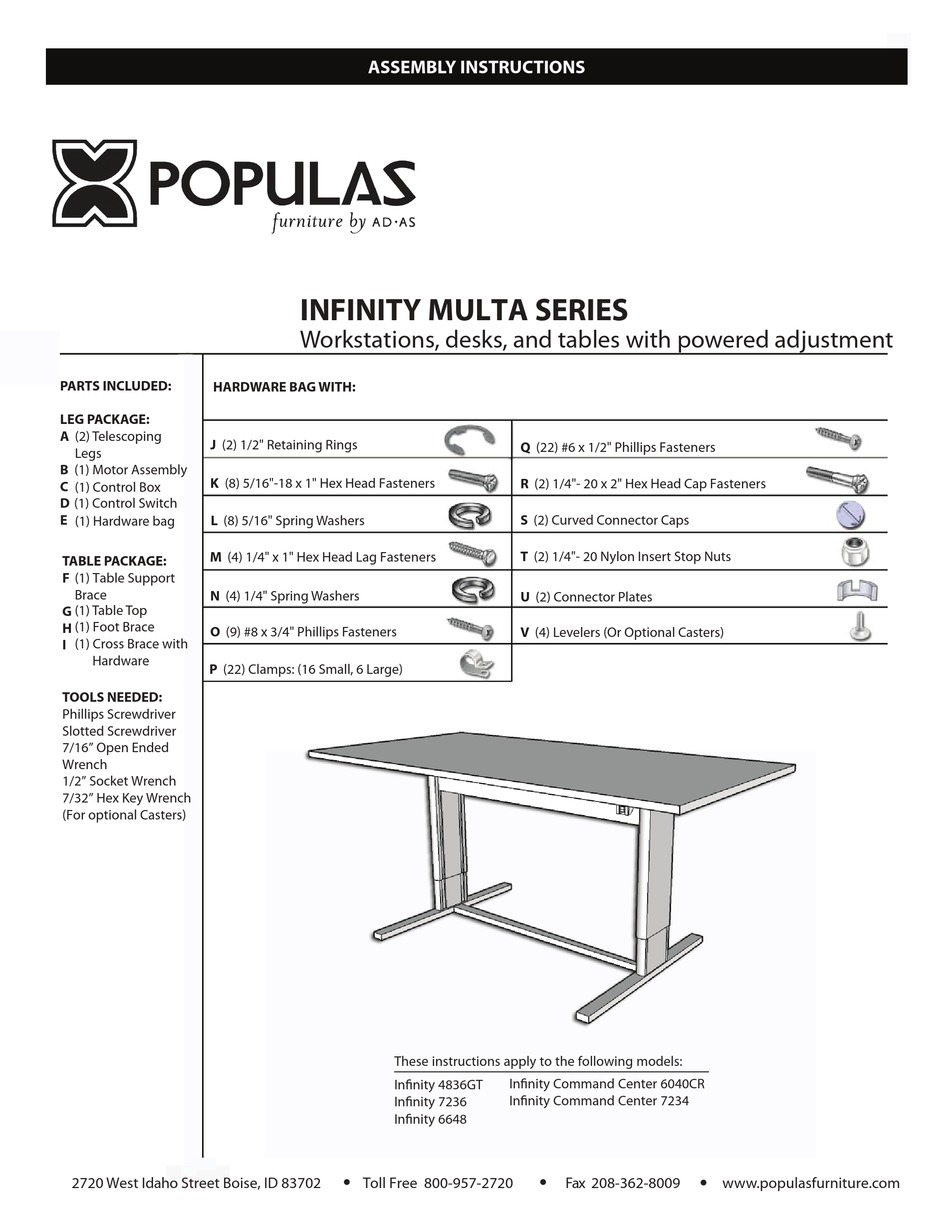

- Page 1 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS INFINITY MULTA SERIES INFINITY Workstations, desks, and tables with powered adjustment WORKSTATIONS, DESKS, AND TABLES WITH POWERED ADJUSTMENT PARTS INCLUDED: HARDWARE BAG WITH: LEG PACKAGE: (2) Telescoping J (2) 1/2" Retaining Rings Q (22) #6 x 1/2" Phillips Fasteners Legs (1) Motor Assembly K (8) 5/16"-18 x 1"...
- Page 2 Step 1: Preparation Foot Brace Unpack and identify all parts. Place Table Top (G) upside down on padded surface and identify front Table Top edge. Long Hose Motor Assembly Short Hose Be careful not to damage the hydraulic hose Front Edge Control Box Telescoping Legs and Switch...
- Page 3 Step 4: Foot Brace Attachment Attach Foot Brace (H) to Telescoping Legs (A) using two 5/16”-18 x 1” Hex Head Fasteners (K) and 5/16”Spring Washers (L) for each Telescoping leg (A), with Fastener heads recessed inside Foot Brace (H). Now tighten the four 5/16”-18 x 1” Hex Head Fasteners from Step 3 Attach Floor Levelers (V).
- Page 4 Step 7: Motor Attachment Small Clamps Align Motor Assembly (B) to three pre-drilled holes and attach using three #8 x 3/4" Phillips Fasteners (O). Route hoses through Small Clamps (P) in pattern shown, and secure using #6 x 1/2" Phillips Fasteners (Q). Step 8: Control Box Attachment Remove clip from Control Box (C) and attach to the table (number side down) using two...
- Page 5 Step 10: Control Switch Attachment Attach Control Switch (D) to pre-drilled location using two # 8 x 3/4" Phillips Fasteners (O). Control Switch (D) may be positioned elsewhere depending upon preference. Secure wire with Small Clamps (P) and #6 x 1/2" Phillips Fasteners (Q). Insert Control Switch (D) plug into Control Box.
