PARTS INCLUDED:
HARDWARE BAG WITH:
LEG PACKAGE:
A (3) Telescoping
L (12) M8 Fasteners
Legs
B (2) Feet
M (12) M6 Fasteners
C (1) Foot Plate
(3) Table Support
D
N (72) #10 x 1" Fasteners
Brace
E (1) Controller
O (20) Clamps (16 small, 4 large)
F (1) Control Switch
G (4) Cross Brace
P (20) #6 x 1/2" Fasteners
Bracket
H (1) Table Mending
Q (2) #8 x 3/4" Fasteners
Plate
I
(1) Hardware bag
TABLE PACKAGE:
J (1) Main Work
Surface; (1) Return
Work Surface
K (2) Cross Brace
TOOLS NEEDED:
Phillips Screwdriver
7/16" Open Ended
Wrench
ASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS

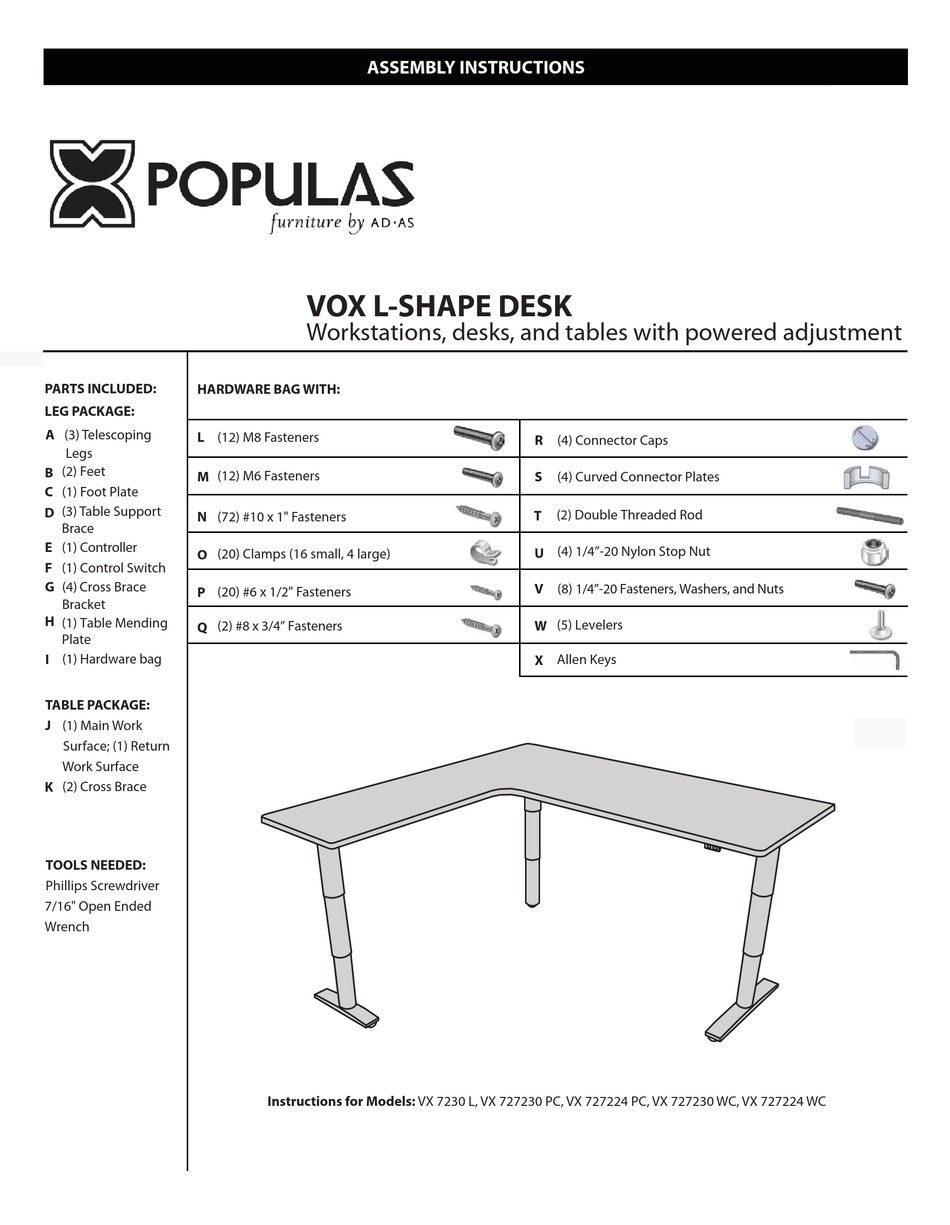

VOX L-SHAPE DESK
INFINITY 7230
Workstations, desks, and tables with powered adjustment
WORKSTATIONS, DESKS, AND TABLES WITH POWERED ADJUSTMENT
Instructions for Models: VX 7230 L, VX 727230 PC, VX 727224 PC, VX 727230 WC, VX 727224 WC
R (4) Connector Caps
S
(4) Curved Connector Plates
(2) Double Threaded Rod
T
(4) 1/4"-20 Nylon Stop Nut
U
V (8) 1/4"-20 Fasteners, Washers, and Nuts
(5) Levelers
W
X Allen Keys
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Populas VOX L-SHAPE DESK
Summary of Contents for Populas VOX L-SHAPE DESK
- Page 1 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS VOX L-SHAPE DESK INFINITY 7230 Workstations, desks, and tables with powered adjustment WORKSTATIONS, DESKS, AND TABLES WITH POWERED ADJUSTMENT PARTS INCLUDED: HARDWARE BAG WITH: LEG PACKAGE: A (3) Telescoping L (12) M8 Fasteners R (4) Connector Caps...
- Page 2 STEP 1: PREPARATION Telescoping Legs Work Surfaces Cross Brace Brackets Unpack and identify all parts. Place Work Surfaces (J) upside down on padded surface and identify Front Edge. Feet & Levelers Controller & Switch Cross Brace Mending Plate Foot Plate Support Braces STEP 2: WORK SURFACE ATTACHMENT Place Curved Connector Plates (S) in connector holes.
- Page 3 STEP 3: SUPPORT BRACE ATTACHMENT TO TELESCOPING LEG Position Table Support Brace (D) over Telescoping Leg (A) as shown. Align the slot in the support brace with the cable exit and securely attach cable in cable cradle. Secure Table Support Brace to Telescoping Legs with four M6 Fasteners (M). STEP 4: TABLE SUPPORT BRACE AND CROSS BRACE ATTACHMENT TO WORK SURFACE Position Table Support Braces (D) as shown with the cables...
-
Page 4: Step 7: Operation And Use
STEP 5: CONTROLLER AND CONTROL SWITCH ATTACHMENT Position Controller (E) and Control Switch (F) as shown on Work Surface. Align with pre-drilled holes and attach Controller to Work Surface as shown using two #10 x 1” Fasteners (N). Plug power cord into Controller (E). Plug each cable from the Telescoping Legs (A) into the M1, M2, and M3 slots. - Page 5 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS INFINITY VOX SYSTEM CONTROLLER RESET PROCEDURE WORKSTATIONS, DESKS, AND TABLES WITH POWERED ADJUSTMENT The following instructions can be used to perform the reset procedure on Vox powered workstations. These instructions should be used if a new controller is introduced to the system, the limits have changed on the controller, or if the system is simply behaving unexpectedly.
-
Page 6: Advanced Functionality
OPTIONAL PROGRAMABLE CONTROL SWITCH INSTRUCTIONS 4.2 Advanced Functionality Note: Functionality described in this chapter is only accessible if you have a handset with position keys and a save key ! 4.2.1. Saving a Position This function allows to save one desk-height per position key. To save a desk position, proceed as follows: Note: On initial operation all stored positions are equal to the lowest possible desk-height (lower end position). - Page 7 OPTIONAL PROGRAMABLE CONTROL SWITCH INSTRUCTIONS (CONTINUED) 4.2.2. Moving to a Saved Position This function allows to move the desk to a saved position. To move to a saved position, proceed as follows: Note: Whether the double-click automatic function is available or not, depends on the software con guration of the control box.
