Populas ACCELLA Assembly Instructions

Workstations, desks, and tables with hand-crank adjustment

Advertisement

Quick Links

HARDWARE BAG WITH:
PARTS INCLUDED:
LEG PACKAGE:
A
(2) Telescoping
J (2) 1/2" Retaining Ring
Legs
B (1) Hand-crank
K
(8) 5/16"-18 x 1" Hex Head Fasteners
Assembly
C (2) Steel Feet
L
(8) 5/16" Spring Washers
D
(2) Table Support
Braces
M (4) 1/4" x 1" Hex Head Lag Fasteners
(1) Hardware Bag
N (4) 1/4" Spring Washer
TABLE PACKAGE:
O (4) #8 x 2-1/2" Phillips Fasteners
E (1) Cross Brace
F (1) Table Top
P (12) Hydraulic Hose Clamps
TOOLS NEEDED:
Phillips Screwdriver
Pliers or
Snap Ring Pliers
7/16" Wrench
1/2" Socket Wrench
ASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS
ACCELLA
Workstations, desks, and tables with hand-crank adjustment
Q (12) #6 x 1/2" Phillips Fasteners
R (2) 1/4"-20 x 2" Hex Head Cap Fasteners
S (2) Curved Connector Cap
T (2) 1/4"- 20 Nylon Insert Stop Nut
U (2) Connector Plate
V (4) Levelers (Or Optional Casters)

Advertisement

loading
Need help?

Need help?

Do you have a question about the ACCELLA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Populas ACCELLA

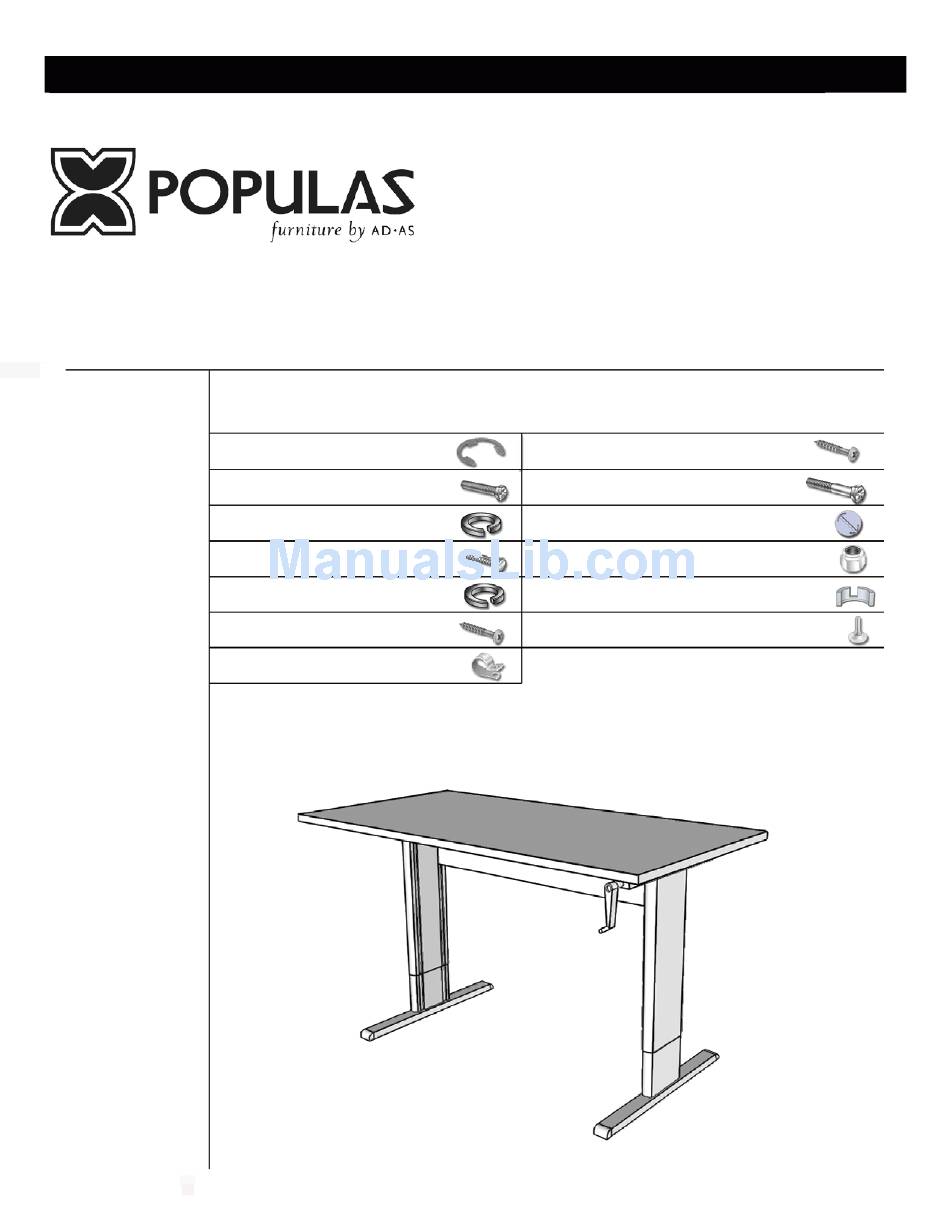

  • Page 1 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS ACCELLA Workstations, desks, and tables with hand-crank adjustment HARDWARE BAG WITH: PARTS INCLUDED: LEG PACKAGE: (2) Telescoping J (2) 1/2" Retaining Ring Q (12) #6 x 1/2" Phillips Fasteners Legs B (1) Hand-crank (8) 5/16"-18 x 1" Hex Head Fasteners R (2) 1/4"-20 x 2"...
