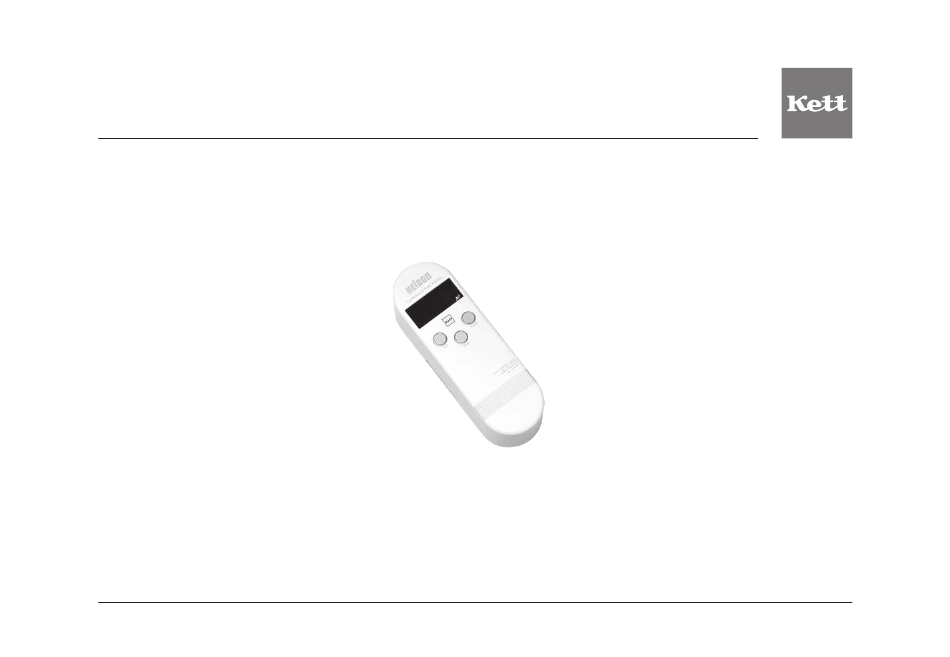

- Page 1 Friction Tester Muse TYPE : 94i-ll Operating Manual Thank you for purchasing this product. Please read the operating manual carefully and use this product properly.
-
Page 3: Table Of Contents
Contents 1. Introduction ........................4 2. Specifications ........................5 3. External View and Part Names ..................6 4. Measurement Principle ....................7 5. The VCM Principle ......................8 6. Using the Portable Friction Meter .................9 7. Notes regarding use ....................11 8. Technical information ....................13 9. -
Page 4: Introduction
1. Introduction The HEIDON Tribo Gear Muse Type 94i-Ⅱ is a portable measuring device which makes it easy for anyone to measure the static friction coefficient of objects. In the past, static friction was typically measured using the incline method and a strain gauge. -
Page 5: Specifications
2. Specifications Model : HEIDON TRIBO GEAR Muse Type: 94i- Ⅱ Measurement range : Coefficient of static friction (0.000 ~ 1.600) Measurement precision : Refer to graphs provided in part 7, Characteristics and Performance Display resolution : 0.001 Detector : VCM Photo sensor Display : 7 Segment LED (RED), (4 digits) Materials... -
Page 6: External View And Part Names
3. External View and Part Names 1 Display Panel 2 Average Button 3 Power Button 4 Measure Button 5 Main Unit 6 Bottom Plate 7 Slider 8 Battery Case 9 Slider Holder 0 AC Adapter Connector ! Data Output Connector... -
Page 7: Measurement Principle
4. Measurement Principle Static friction is generally measured using the incline method. As illustrated in Diagram 1 below, when an object of weight W is placed upon a surface which is gradually inclined at an increasing angle, at some angle of inclination the acceleration of gravity acting upon the object will exceed the static friction which tends to keep the object in place and the object will begin to slip. -
Page 8: The Vcm Principle
5. The VCM Principle The VCM (voice coil motor) operating principle is an application of Fleming's left hand rule. As illustrated in the diagram below, the VCM is composed of a magnetic circuit and coil assembly. When a current passes through the coil placed in the magnetic field, the current, magnetic field and force move at right angles to each other. -
Page 9: Using The Portable Friction Meter
6. Using the Portable Friction Meter 1. Attach a Sample The coefficient of friction between to samples can be measured either by attaching the samples to the slider with two-sided tape or by fixing the samples in place using the O ring supplied attached to the slider. ●... - Page 10 3. Check the Power Supply Voltage After turning on the power, check to make sure that the LED display reads "0.000". The batteries need to be replaced if the LED display reads "Lo" or "8.888". To replace the batteries, use the supplied screwdriver to remove the screws which hold the battery case cover in place.
-
Page 11: Notes Regarding Use
7. Notes regarding use 1. Precautions on main unit ● Do not drop or give a strong impact to the unit. Failure to observe this may cause a malfunction because this product has a precise structure. ● Do not attempt to disassemble or modify the unit. Failure to observe this may cause a malfunction because the sensor section and VCM section of this product have a precise structure. - Page 12 3. Precautions on sample ● Be careful about the sample surface. If the sample surface has unevenness or wrinkles, measurement results may be affected. If there is a burr on the surface, it is caught and correct data cannot be obtained. Pay attention when processing or putting a sample.
-
Page 13: Technical Information
8. Technical information 1. Characteristics and Performance ● Driving force generated by VCM calculated using a strain gauge (Actual measurement example) ● VCM driving force constant calculated using a strain gauge (Actual measurement example) ● Calculation error due to circuit resolution. - Page 14 2. Selection of slider Slider selection is significantly important for measuring a coefficient of friction. The measurement results may be completely opposite depending on sliders. For example, the coefficient of friction on a rough surface is generally larger than that on a smooth surface. When measurement is conducted with the use of the standard slider, however, the measurement result may be reversed.
-
Page 15: Error Display
9. Error display Display Cause Remedy Err1 Power supply voltage Battery needs to be replaced. Err2 Communication function Check the cable. A malfunction occurred. Err3 Zero return incapability error Contact our sales division. Insufficient power supply voltage Battery needs to be replaced. 8888 Insufficient power supply voltage Battery needs to be replaced. - Page 16 MEMO...
- Page 17 MEMO...
- Page 18 MEMO...
- Page 20 Caution ● It is strictly prohibited to transfer part or all of this manual without per- mission. ● The contents of this manual are subject to change without notice. ● The appearances, screens, etc. of the product and accessories displayed on this manual may differ from the actual ones, however, operations and functions are not affected. ● All efforts have been made to ensure the contents of this manual are accurate. However, if you notice any part to be unclear, incorrect, omit- ted, or the like in this manual, please contact us. ● Be aware that we are not liable for the effects resulting from opera- tions according to this manual regardless of the items above. 060422...
