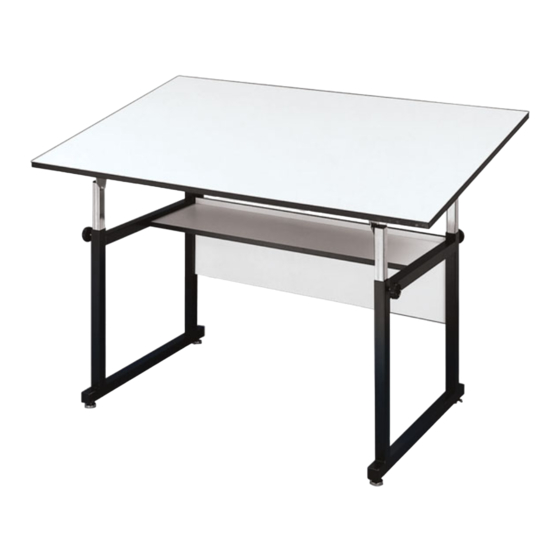

Alvin MiniMaster Assembly Instructions

Tools required:

Phillips screwdriver.

Parts Included:

A
2pcs Leg Frame

To Assemble:

Unpack and inspect contents to confirm that you have all parts
listed above.
Screw floor glides ( G ) or casters ( H ), whichever you prefer, into
bottom tubes of left and right leg frames (A).
Place back panel ( C ) on a bench or table (at least 20" high) with
ends hanging over the edge and threaded holes facing up.

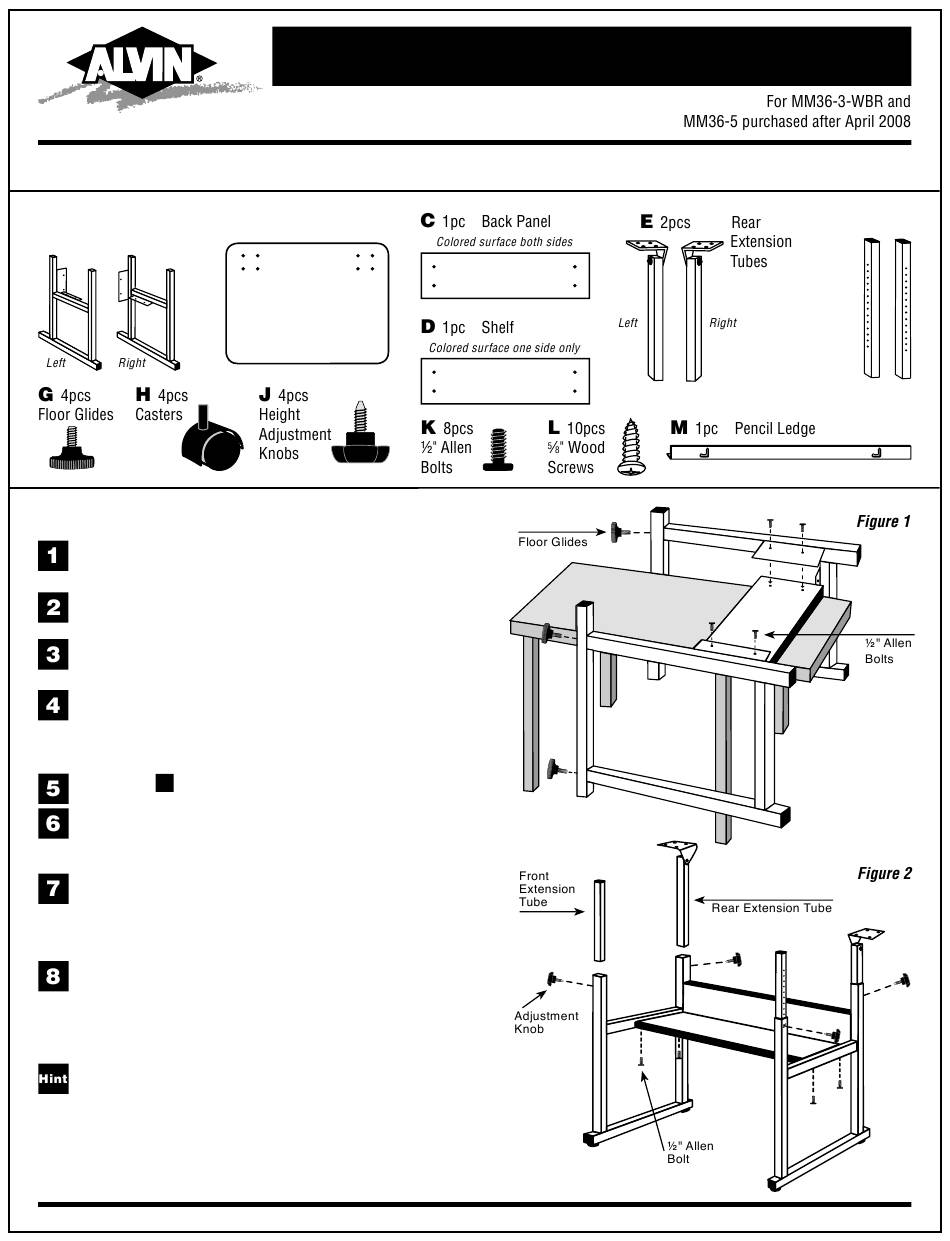

Hang left leg frame ( A ) on top of back panel ( C ) as shown in
Figure 1. Align holes in steel flange with holes in back panel and
install ½" Allen bolts ( K ). Be sure ends of back panel are pushed
flush against steel tubing and tighten bolts securely.
Repeat step for right leg frame ( A ).
4
Carefully remove base assembly from table/bench and place
upright on floor. Use care not to overstress back panel connections
at this time.
Place shelf ( D ) with pre-drilled holes facing down onto the steel
shelf flanges. Attach with ½" Allen bolts ( K ) from below. Be sure
ends of shelf panel are pushed flush against steel tubing and
tighten bolts securely.
Insert front and rear extension tubes ( E and F ) into base assembly.
Pay close attention to correct orientation of attachment brackets
on left and right rear tubes, as shown in Figure 2. Install height
adjustment knobs ( J ) in each leg and set each extension tube in
the third hole for the time being.
Extension tube holes align with height adjustment knobs when
half of the hole above is showing, as shown in Figure 3. Set base
assembly aside.
MiniMaster
Assembly Instructions
B
1pc Table Top
Drawing Table
F
2pcs
Front
Extension
Tubes
