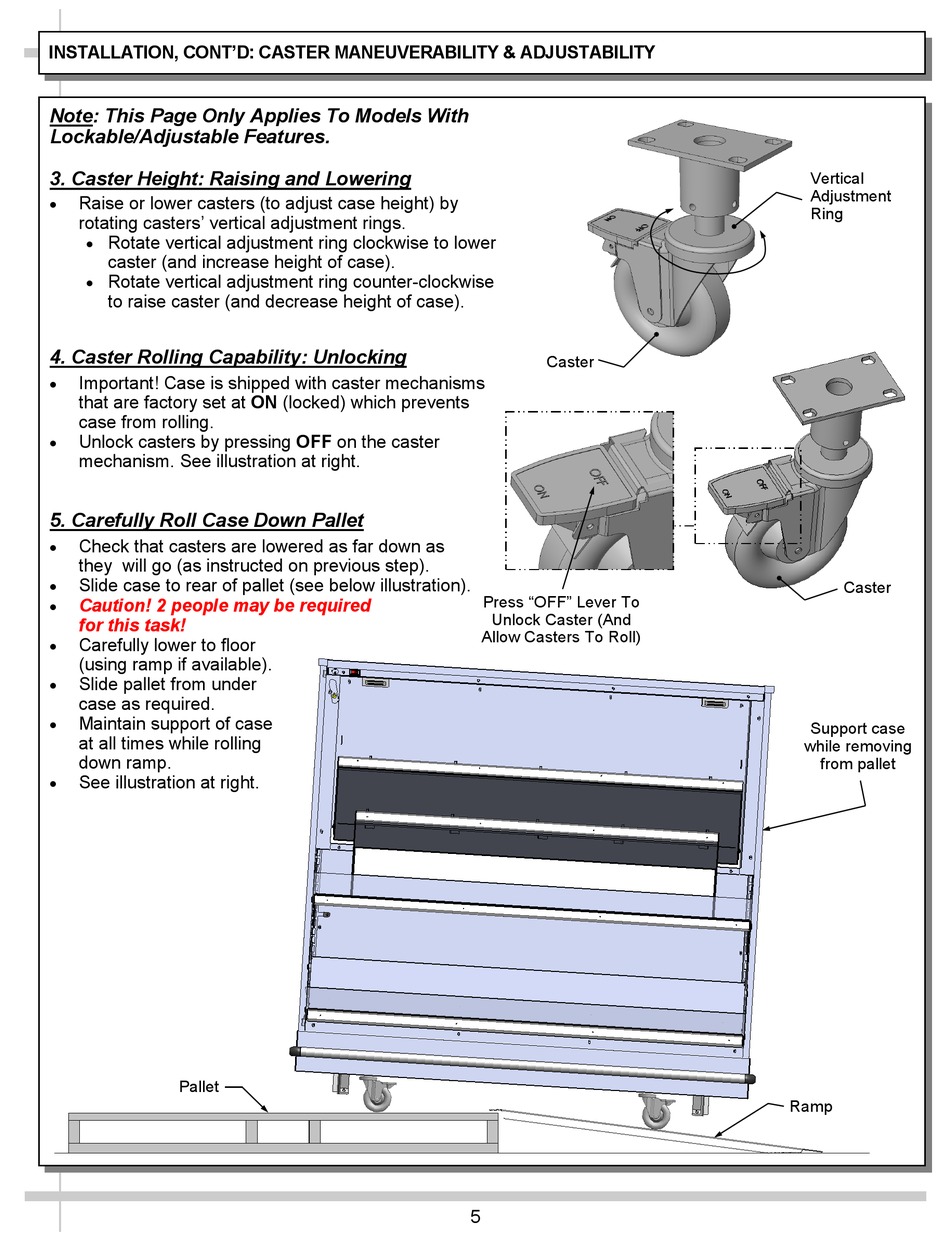

INSTALLATION, CONT'D: CASTER MANEUVERABILITY & ADJUSTABILITY
Note: This Page Only Applies To Models With
Lockable/Adjustable Features.
3. Caster Height: Raising and Lowering
 Raise or lower casters (to adjust case height) by
rotating casters' vertical adjustment rings.
 Rotate vertical adjustment ring clockwise to lower
caster (and increase height of case).

Rotate vertical adjustment ring counter-clockwise
to raise caster (and decrease height of case).
4. Caster Rolling Capability: Unlocking
 Important! Case is shipped with caster mechanisms
that are factory set at ON (locked) which prevents
case from rolling.
 Unlock casters by pressing OFF on the caster
mechanism. See illustration at right.
5. Carefully Roll Case Down Pallet
 Check that casters are lowered as far down as
they will go (as instructed on previous step).
 Slide case to rear of pallet (see below illustration).
 Caution! 2 people may be required
for this task!
 Carefully lower to floor
(using ramp if available).
 Slide pallet from under
case as required.
 Maintain support of case
at all times while rolling
down ramp.
 See illustration at right.
Pallet
Caster
Press "OFF" Lever To
Unlock Caster (And
Allow Casters To Roll)
5
Vertical
Adjustment
Ring
Caster
Support case
while removing
from pallet
Ramp
