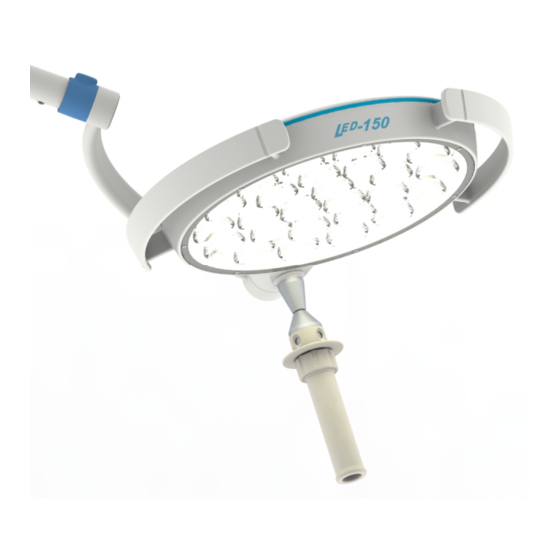

Dr. Mach LED 150F Directions For Use Manual
  1. Manuals
  2. Brands
  3. Dr. Mach Manuals
  4. Lighting Equipment
  5. LED 150F
  6. Directions for use manual

Dr. Mach LED 150F Directions For Use Manual

Medical lighting
Hide thumbs Also See for LED 150F:
Table of Contents

Advertisement

Quick Links

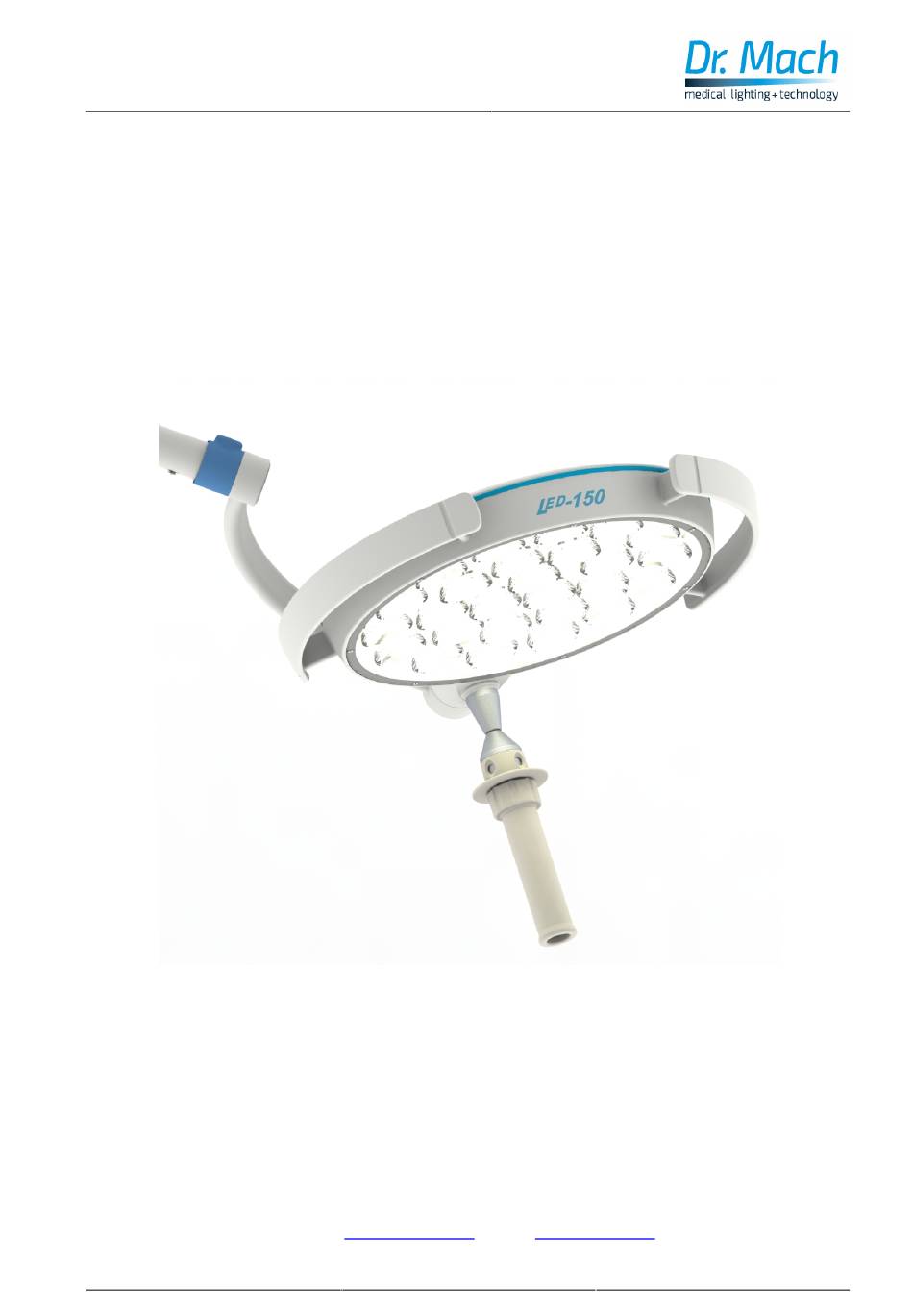

Mach LED 150F / 150 / 150FP
Directions for use
MACH LED 150F / 150 / 150FP
Dr. Mach
GmbH u. Co. KG, Floßmannstrasse 28, D-85560 Ebersberg
Tel.: +49 (0)8092 2093 0, Fax +49 (0)8092 2093 50
Internet: www.dr-mach.com, E-Mail:
info@dr-mach.de
59320002
Edition 12
08.08.2018 / Bak We page 1/26

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED 150F and is the answer not in the manual?

Questions and answers

Related Manuals for Dr. Mach LED 150F

Summary of Contents for Dr. Mach LED 150F

  • Page 1 Mach LED 150F / 150 / 150FP Directions for use MACH LED 150F / 150 / 150FP Dr. Mach GmbH u. Co. KG, Floßmannstrasse 28, D-85560 Ebersberg Tel.: +49 (0)8092 2093 0, Fax +49 (0)8092 2093 50 Internet: www.dr-mach.com, E-Mail: info@dr-mach.de...

  • Page 2: Table Of Contents

    List of contents 1. Safety instructions ..................page 4 2. Brief description of the light MACH LED 150F / 150 / 150FP ....page 8 3. Operating the light Mach LED 150F / 150 / 150FP ........page 8 3.1 ON/OFF switch .................. page 8 3.2 Light intensity control .................
  • Page 3 Mach LED 150F / 150 / 150FP Dear customer! Congratulations for acquiring our new light MACH LED 150F / LED 150 / LED 150FP. The new light generation with LED technology supports your professionalism by innovative technology and design. The advantages of the LED technology: a life-span of minimum 50.000 hours and an almost non- existent heat development in the surgeon’...

  • Page 4: Safety Instructions

    The lights may only be repaired and special assembly work may only be carried out on the reflec- tor or sockets by Dr. Mach or a company that has been expressly authorized by Dr. Mach. The manufacturer can only be made responsible for the safety of the light if repairs and alterations are carried out by the manufacturer himself or a company that guarantees to observe the safety regulations.
  • Page 5 Mach LED 150F / 150 / 150FP Symbols and notes used in this user manual: This symbol means possible hazard sources. Please observe also the safety remarks and the hazard specifications mentioned in the mounting instructions and user manuals from Ondal company.
  • Page 6 Mach LED 150F / 150 / 150FP Symbols and notes used on the device: This symbol indicates to observe the user manual. Indication on China RoHS / Pollution control Logo China Temperature range for transport and storage Indication for disposal...
  • Page 7 The Mach LED 150F/150 lighting system is designed for illuminating an examination area at the hospital and doctor’ s practice. Mach LED 150F/150/150FP indications for use: The surgical light MACH LED 150F/150/150FP is intended to illuminate the surgical field and the patient’ s body with a high intensity, shadow-free and “ cold” light. Essential Performance:...

  • Page 8: Brief Description Of The Light Mach Led 150F / 150 / 150Fp

    Mach LED 150F / 150 / 150FP Operating the light MACH LED 150F / 150 / 150FP ON/OFF switch The push button 1 on the control panel turns the light MACH LED 150F/150/150 FP ON and OFF. Light intensity control The lights Mach LED 150F/150/150 FP offer the facility of light intensity control.

  • Page 9: Focusing (Mach Led 150F / 150Fp Only)

    Mach LED 150F / 150 / 150FP 3.4 Focusing The lamp-models Mach LED 150F/150FP have a focusing function. That means, you can either en- large the diameter of the light field or bundle the light to a smaller area, depending on the circumstances.

  • Page 10: Danger Of Collision While Positioning The Lights

    Mach LED 150F / 150 / 150FP 3.6 Danger of collision while positioning the lights During positioning, eventual collisions between the lights, spring arms and other devices must be avoided. Cover parts can get loose and fall down. 3.7 Addition to positioning the lamp When the spring arm and extension arm are in a 180°...

  • Page 11: Cleaning

    Mach LED 150F / 150 / 150FP Cleaning 4.1 Sterilizable handle The light can be equipped against surcharge with the sterilisable handle 7. The handle sleeve is removable and sterilisable. Before using the first time and before every use the handle sleeve must be cleaned, disinfected and sterilised.
  • Page 12 Mach LED 150F / 150 / 150FP When cleaning / disinfecting, the following procedures must be followed: Process Time (sec.) Zone 1 Pre-rinse, external, cold, 10 – 15°C Washing, acidic, external 35°C Draining time Re-rinse, external approx. 80°C Draining time Re-rinse, external approx.

  • Page 13: Lamp Head, Lens And Protective Disk

    Mach LED 150F / 150 / 150FP Inspection / durability The sterilisable handle sleeve must be disposed after 1000 sterilisation cycles or at the latest after 2 years and replaced with a new one. The year of manufacture can be determined with the help of a stamping on the inner side of the handle sleeve (like shown in the photo).

  • Page 14: Initial Operation And Maintenance

    For adjustments at the ceiling attachment please observe also the mounting instructions “ Ceiling attachment with heavy central axis” or “ Ceiling attachment – wall attachment” from Dr. Mach. Remark: Wiring diagrams, complete spare parts lists and maintenance manuals can be provided on request.

  • Page 15: Troubleshooting

    Mach LED 150F / 150 / 150FP 6. Troubleshooting LED 15 0 in combination with the spring arm Acrobat 2000 1. The light cannot be switched on after the installation: → Mobile light: Is the light connected to mains? Plug the mains plug into the wall socket.

  • Page 16: Data

    Mach LED 150F / 150 / 150FP Data ED Mach M3 LED 7.1 Technical data Mach LED 150F Mach LED 150 Mach LED 150FP Central light intensity 110.000 Lux 110.000 Lux 130.000 Lux at a distance of 1 meter Light field diameter d...

  • Page 17: Electrical Data

    7.3 Information regarding the electrical installation When turned ON, the examination light MACH LED 150F / 150 / 150FP is exposed to a current peak. The examination light MACH LED 150F / 150 /150FP is delivered with a Dr. Mach power supply.

  • Page 18: Environmental Conditions

    Mach LED 150F / 150 / 150FP 7.5 Environmental conditions Operation Min. Max. Temperature +10°C +30°C* Relative atmospheric humidity 30 % 75 % Air pressure 700 hPa 1060 hPa * in case of higher temperatures please contact us Transport / storage Min.

  • Page 19: General Remarks

    CE-mark The products Mach LED 150F / 150 / 150FP comply with the standards 93/42/EEC for medical products of the European Community’ s Council. Dr. Mach applies the standard EN 60601-2-41.

  • Page 20: Wiring Diagram

    Mach LED 150F / 150 / 150FP Wiring diagram for single attachments power supply type: XP Power ECM60US24 59320002 Edition 12 08.08.2018 / Bak We page 20/26...

  • Page 21: Electromagnetic Compatibility

    Mach LED 150F / 150 / 150FP Electromagnetic compatibility The Dr. Mach OT- and examination lights are subject to special preventive measures regarding the electromagnetic compatibility and must be installed according to the EMC-instructions mentioned in the accompanying documents The function of the OT- and examination lights can be affected by portable and mobile HF-communication or other HF-devices.
  • Page 22 Mach LED 150F / 150 / 150FP Table 2 – Emission limits per environment Professional healthcare facility Phenomenon Home healthcare environment environment c), d) CISPR 11 Conducted and radiated RF emissions Class B; Group 1 (according CISPR 11) See IEC 61000-3-2...
  • Page 23 Mach LED 150F / 150 / 150FP Table 4 – Enclosure port Immunity test levels Basic EMC Phenomenon standard or test Professional healthcare Home healthcare method facility environment environment ± 8 kV contact Electrostatic IEC 61000-4-2 Discharge ± 2 kV, ± 4 kV, ± 8 kV , ± 15 kV air...
  • Page 24 Mach LED 150F / 150 / 150FP Table 5 – Input a.c power PORT (1 of 2) Basic EMC Immunity test levels Phenomenon standard Professional healthcare Home healthcare facility environment environment ± 2 kV Electrostatic fast transients IEC 61000-4-4 a) l) o)
  • Page 25 Mach LED 150F / 150 / 150FP Table 5 (2 of 2) Direct coupling shall be used.. r.m.s., before modulation is applied. The ISM (industrial, scientific and medical) bands between 0,15 MHz and 80 MHz are 6,765 MHz to 6,795 MHz; 13,553 MHz to 13,567 MHz;...
  • Page 26 Mach LED 150F / 150 / 150FP Table 9 – Test specifications for enclosure port immunity to RF wireless communications equipment IMMUNITY Test Maximum Band Distance TEST LEVEL Frequency Power Service Modulation (MHz) (V/m) (MHz) Pulse modulation 380 - 390...
