Dr. Mach

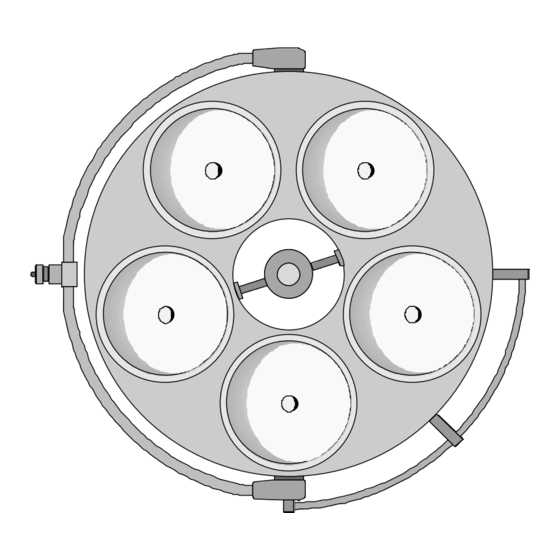

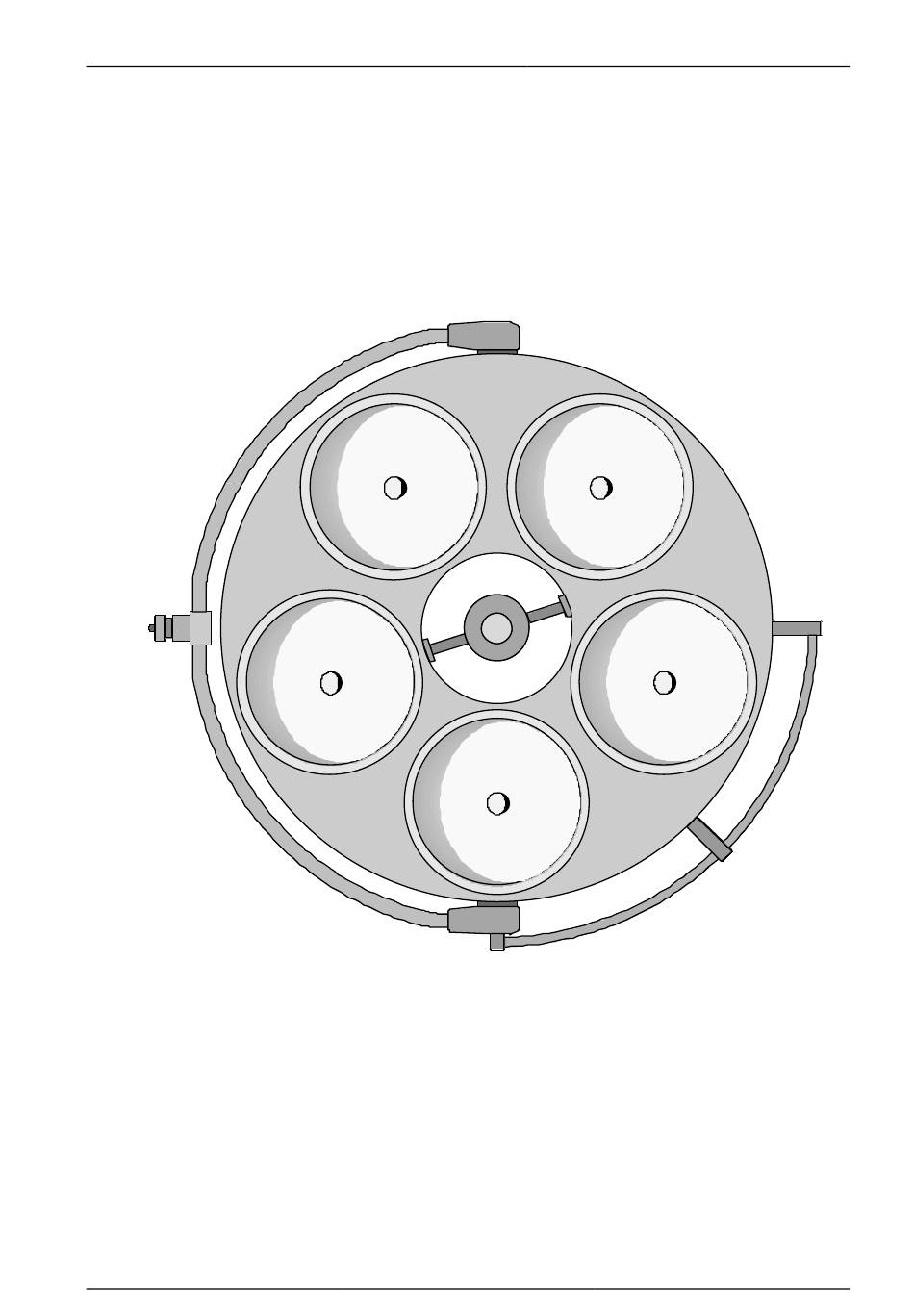

Quintaflex R96
Ceiling, Wall Model
Lamps and Engineering
DIRECTIONS FOR USE
Quintaflex R96
Single Ceiling Lamp _______________________________ Order No. 5502 3031 27
Order No. 5502 3031 30
Ceiling Lamps - Combinations
Dr. Mach
GmbH u. Co., Flossmannstrasse 28, D-85560 Ebersberg
Tel.: +49 (0)8092 2093 0, Fax +49 (0)8092 2093 50
59250001
Edition 01
21.02.2002 / Bak Page 1/18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Quintaflex R96 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dr. Mach Quintaflex R96

Summary of Contents for Dr. Mach Quintaflex R96

  • Page 1 Dr. Mach Quintaflex R96 Ceiling, Wall Model Lamps and Engineering DIRECTIONS FOR USE Quintaflex R96 Single Ceiling Lamp _______________________________ Order No. 5502 3031 27 Order No. 5502 3031 30 Ceiling Lamps - Combinations Dr. Mach GmbH u. Co., Flossmannstrasse 28, D-85560 Ebersberg Tel.: +49 (0)8092 2093 0, Fax +49 (0)8092 2093 50...
  • Page 2 Dr. Mach Quintaflex R96 Ceiling, Wall Model Lamps and Engineering Internet: www.dr-mach.com, E-mail: info@dr-mach.de 59250001 Edition 01 21.02.2002 / Bak Page 2/18...

  • Page 3: Table Of Contents

    List of contents 1. Safety instructions .....................Page 3 2. Operating the lamp Quintaflex R96..............Page 4 2.1 Checking the lamp Quintaflex R96 with light intensity control....Page 4 2.2 ON/OFF switch....................Page 6 2.3 Positioning ....................Page 6 2.4 Light field adjustment (merging of light fields)..........Page 6 3.

  • Page 4: Safety Instructions

    Ceiling, Wall Model Lamps and Engineering Dear customer! Congratulations! You have just bought Dr. Mach’s newly developed light system R96. The outstanding feature of this light system is its general colour rendition factor R =96 which had hitherto been unattainable for examination and surgery purposes. This means, that the colours are rendered naturally and in full contrast, with a pleasant light around the operating site.

  • Page 5: Operating The Lamp Quintaflex R96

    Lamps and Engineering 2. Operating the lamp Quintaflex R96 2.1 Checking the lamp Quintaflex R96 with light intensity control The lamp Quintaflex is optionally equipped with the function of electronic light intensity control. You can adjust the light intensity at the key pad on the cardan bow.
  • Page 6 Dr. Mach Quintaflex R96 Ceiling, Wall Model Lamps and Engineering 59250001 Edition 01 21.02.2002 / Bak Page 6/18...
  • Page 7 Dr. Mach Quintaflex R96 Ceiling, Wall Model Lamps and Engineering ♦ Voltage measurement at the control board Please check, whether the power supply is supplying AC or DC. Voltage measurement at DC Pay attention to the polarisation during the installation.

  • Page 8: On/Off Switch

    2.4 Light field adjustment (merging of light fields) The lamps Quintaflex R96 are equipped with the function of light field realignment. That means, you can merge the separated light fields to one spot as shown in the figure.

  • Page 9: Cleaning

    Dr. Mach Quintaflex R96 Ceiling, Wall Model Lamps and Engineering 3. Cleaning 3.1 Sterilizable handle At delivery the lamp is equipped with the handle sleeve 1. The handle sleeve is removable and sterilisable. Before using the first time and before every use the handle sleeve must be cleaned, disinfected and sterilised.
  • Page 10 Dr. Mach Quintaflex R96 Ceiling, Wall Model Lamps and Engineering When cleaning / disinfecting, the following procedures must be followed: Process Time (se c.) Zone 1 Pre-rinse, external, cold, 10 – 15°C Washing, acidic, external 35°C Draining time Re-rinse, external approx. 80°C Draining time Re-rinse, external approx.

  • Page 11: Lamp Head, Splinter Protection Disk

    Dr. Mach Quintaflex R96 Ceiling, Wall Model Lamps and Engineering 3.2 Lamp head, splinter protection disk The lamp head 2 has a high quality surface, which can be cleaned with conventional cleaning agents. The splinter protection disks 3 are made of a high quality plastic.

  • Page 12: Maintenance

    Dr. Mach Quintaflex R96 Ceiling, Wall Model Lamps and Engineering 4. Maintenance The lamp has been designed and built so that regular maintenance intervals are not necessary. In order to keep the system easy running throughout its life span, we recommend that the hinges be greased once a year with an acid-free grease.
  • Page 13 Dr. Mach Quintaflex R96 Ceiling, Wall Model Lamps and Engineering ♦ Adjusting the central spring arm Hole 3 To adjust the spring force make sure that the spring arm with the lamp / device can come to rest in any desired position.

  • Page 14: Adjustments At The Lamp Head

    Dr. Mach Quintaflex R96 Ceiling, Wall Model Lamps and Engineering 4.2 Adjustments at the lamp head ♦ Adjusting the lamp bow For adjusting the lamp bow proceed as follows: • Turn off the lamp. • Loosen the countersunk screws 1 (covered by seal 4) using a cross screw driver and carefully lift the upper housing part off the seal.

  • Page 15: Changing Of Spare Parts

    Lamps and Engineering 4.3 Changing of spare parts 4.3.1 Changing the halogen bulbs Dr. Mach uses special halogen bulbs as illuminants. Only original Dr. Mach replacement bulbs may be used. The use of other bulbs can lead to a considerable reduction of the light power and increase in the thermal load.

  • Page 16: Changing The Filter Disk

    Dr. Mach Quintaflex R96 Ceiling, Wall Model Lamps and Engineering 4.3.3 Changing the filter disk The dielectric filter disk between reflector and splinter protection disk prevents a damaging heating of the illuminated area. The lamp may not be used without this filter.

  • Page 17: Data

    Dr. Mach Quintaflex R96 Ceiling, Wall Model Lamps and Engineering 5. Data 5.1 Technical data alternating current rated voltage rated current frequency Hertz fuse class of protection 5.2 Environmental conditions Operation Min. Max. Temperature +10°C +40°C Relative atmospheric humidity Air pressure...

  • Page 18: Marking

    6.2 CE-mark The products Quintaflex R96 comply to the standards 93/42/EEC for medical products of the European Community’s Council. 7. Disposal The OT-lamp Quintaflex R96 does not contain any danger goods. The components of the OT-lamp should be properly disposed at the end of their shelf life.

  • Page 19: Spare Parts

    Dr. Mach Quintaflex R96 Ceiling, Wall Model Lamps and Engineering 8.Spare parts Power supply with 24V – ceiling model 59250001 Edition 01 21.02.2002 / Bak Page 19/18...

  • Page 20: Spare Part List

    Dr. Mach Quintaflex R96 Ceiling, Wall Model Lamps and Engineering 9.Spare part list Item Qty. Name EDVNO Remarks Lamp bow, complete 25100001 Sliding contact - connector 07102001 1x in 1 and 25 or 26 Bolt 22080203 Corrugated washer 65542002 Pressure washer...
  • Page 21 Dr. Mach Quintaflex R96 Ceiling, Wall Model Lamps and Engineering Nut M3 DIN 934 65332002 Acrylic glass box for transformer 300VA 67610101 59250001 Edition 01 21.02.2002 / Bak Page 21/18...
