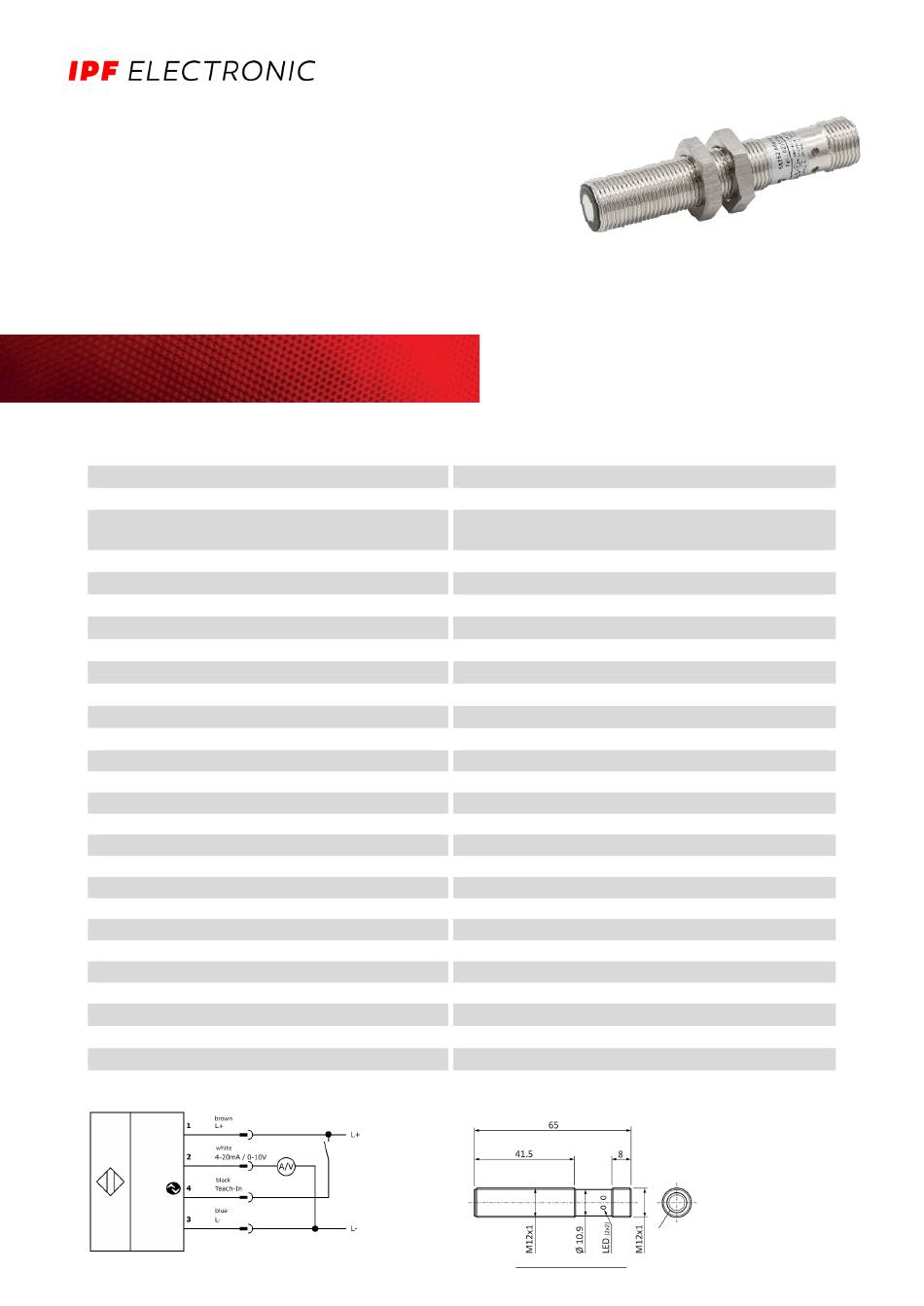

ipf electronic UT129023 Quick Start Manual

UT129023
Ultrasonic sensors
Diffuse-reflection sensors
I
Measuring range adjustable via teach-in
I
Analog output
I
M12-connector
IO-Link-Interface
4 ... 20mA / 0 ... 10V switchable
TECHNICAL DATA
Scanning range
Operating voltage U
B
Analog output
Load resistance (4 ... 20mA)
Load resistance (0 ... 10V)
Switching output (adjustable via IO-Link)
Output current (max. load)
Short-circuit proof
Reverse polarity protected
Voltage drop
Switching frequency
Current consumption (without load
Standard measuring plate
Resolution
Repeatability
Linearity error
Mounting distance (sensor to sensor)
Setting
Carrier frequency
Protection class
Insulation dielectric strength
Protection class (EN 60529)
Material (housing)
Temperature (operation)
Temperature drift
Connection
Connection accessories
Connection
ipf electronic gmbh │ Rosmarter Allee 14 • 58762 Altena • Germany │ Tel +49 2351 9365-0 • info@ipf-electronic.com • www.ipf-electronic.com
MANUAL • Subject to alteration! Stand: October 2021
40 ... 400mm
18 ... 30V DC
0 ... 10V, 4 ... 20mA switchable, not reverse polarity
protected
< 400Ω
> 10kΩ
Push-Pull, no/nc switchable
150mA
+
+
2.0V DC
10Hz
40mA
200 x 200mm
1.0mm
1.5mm
0.4%
200mm
Teach-In
300kHz
III
500V
IP 67
Brass nickel plated
-25 ... +70°C
0.2%/K (uncompensated)
M12-connector 4-pole
e.g. VK200325
Dimensional drawing
Sound outlet
Ultrasonic transducer
1
