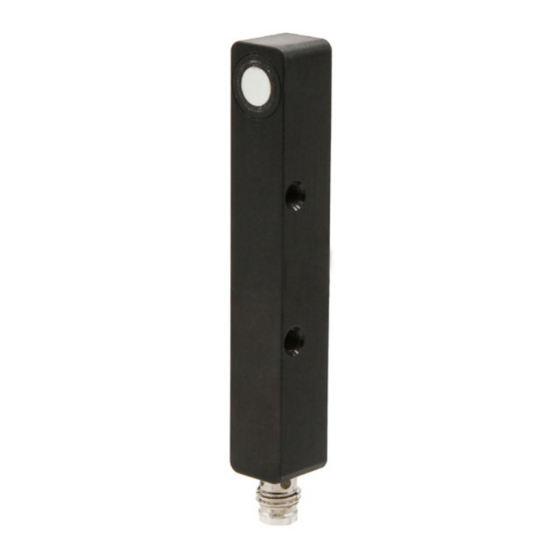

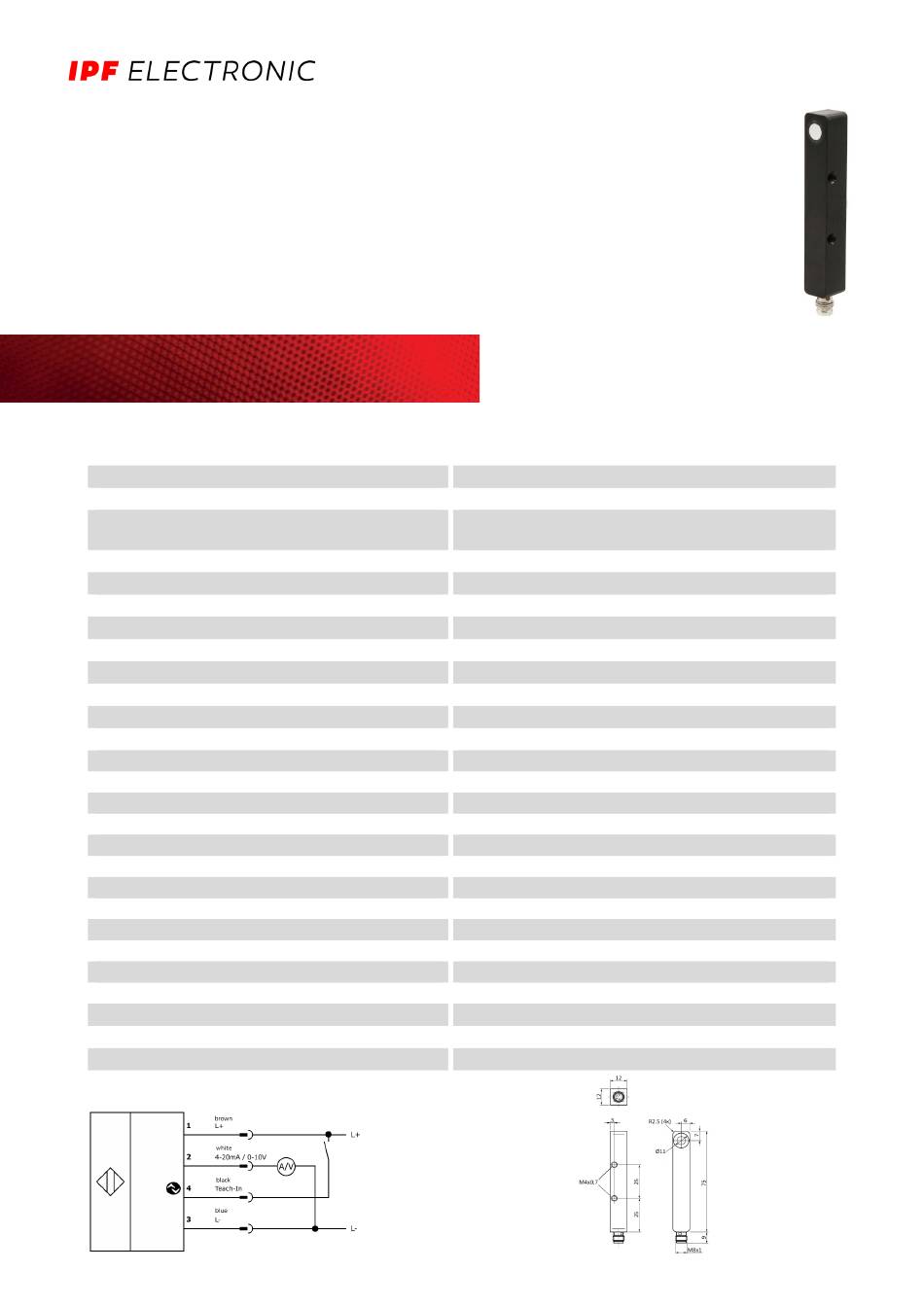

ipf electronic UT139073 Manual

UT139073
Ultrasonic sensors
Diffuse-reflection sensor
I
Measuring range adjustable via teach-in
I
Analog output
I
M12-connector
IO-Link interface
4 ... 20mA / 0 ... 10V switchable
TECHNICAL DATA
Scanning range
Operating voltage U
B
Analog output
Load resistance (4 ... 20mA)
Load resistance (0 ... 10V)
Switching output (adjustable via IO-Link)
Output current (max. load)
Short-circuit proof
Reverse polarity protected
Voltage drop
Switching frequency
Current consumption (without load
Standard measuring plate
Resolution
Repeatability
Linearity error
Mounting distance (sensor to sensor)
Setting
Carrier frequency
Protection class
Insulation dielectric strength
Protection class (EN 60529)
Material (housing)
Temperature (operation)
Temperature drift
Connection
Connection accessories
Connection
ipf electronic gmbh │ Rosmarter Allee 14 • 58762 Altena • Germany │ Tel +49 2351 9365-0 • info@ipf-electronic.com •
MANUAL • Subject to alteration! Stand: October 2021
40 ... 400mm
18 ... 30V DC
0 ... 10V, 4 ... 20mA switchable, not reverse polarity
protected
< 400Ω
> 10kΩ
Push-Pull, no/nc switchable
150mA
+
+
2.0V DC
10Hz
40mA
100 x 100mm
1.0mm
0.5mm
0.8%
250mm
Teach-In
300kHz
III
500V
IP 67
Aluminum, black anodized
-25 ... +70°C
0.2%/K (uncompensated)
M12-connector 4-pole
z.B. VK200375
Dimensional
drawing
www.ipf-electronic.com
Sound outlet
1
