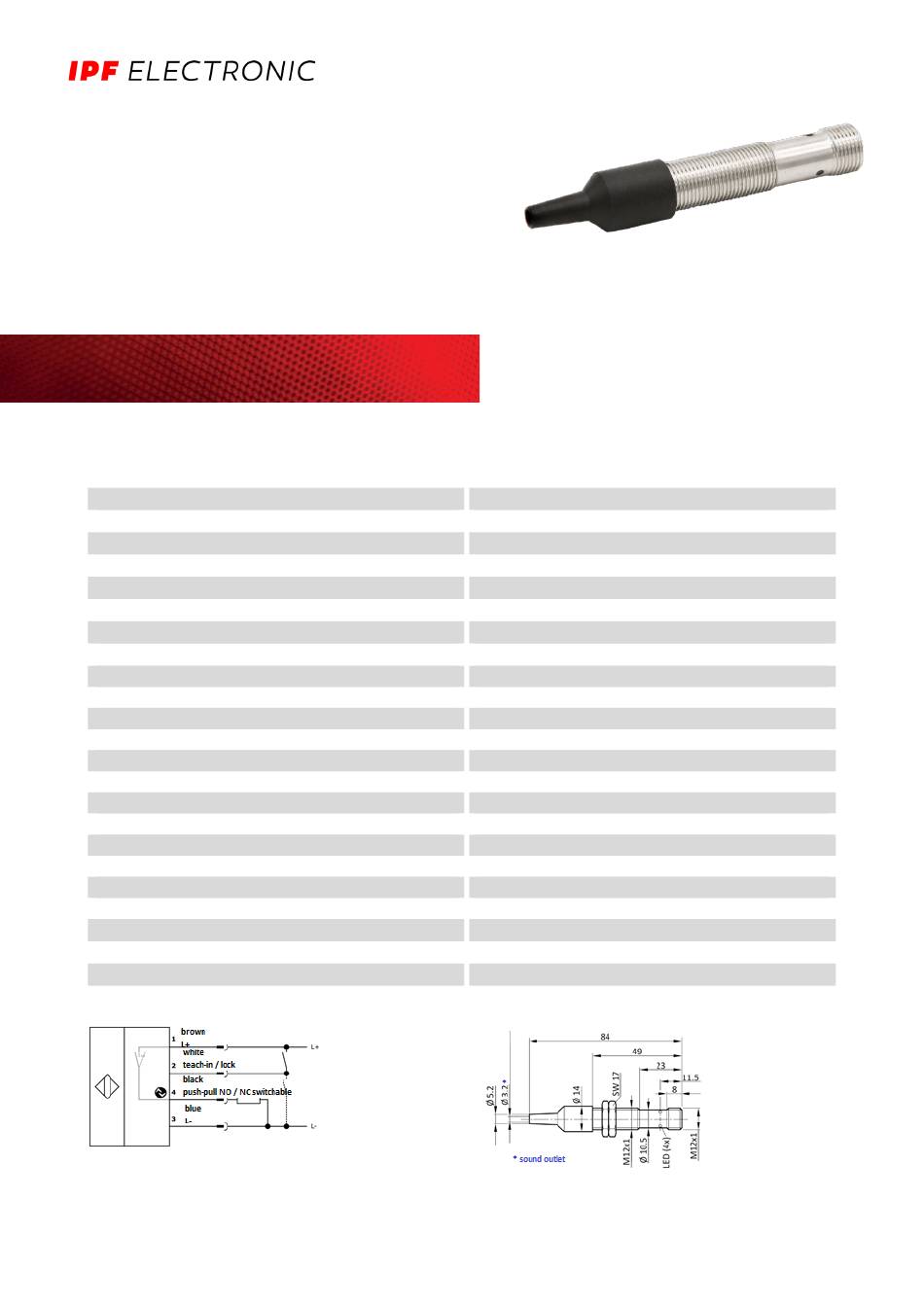

ipf electronic UT129521 Manual

UT129521

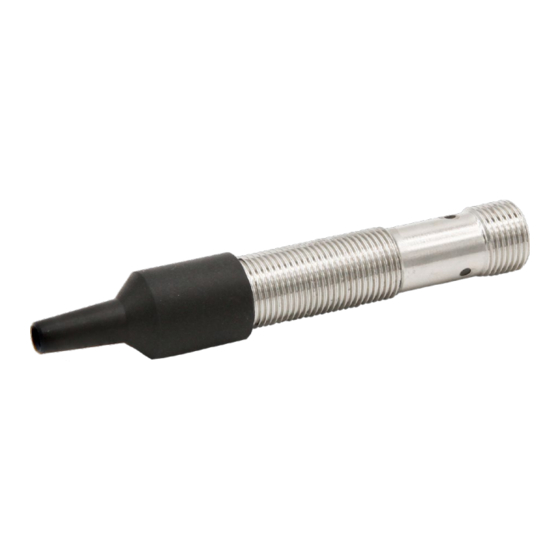

Sensor ultrasonic
Diffuse-reflection sensor
I
Setting via teach-in
I
3 different teach modes
I
Push-pull switching output
I
M12-connector
IO-Link interface
Make contact / break contact switchable

TECHNICAL DATA

Scanning range
Operating voltage U
B
Switching output
Output current (max. load)
Short-circuit proof
Reverse polarity protected
Voltage drop
Switching frequency
Current consumption (without load)
Standard measuring plate
Resolution
Repeat accuracy
Hysteresis
Mounting distance (sensor to sensor)
Setting
Carrier frequency
Protection class
Insulation dielectric strength
Degree of protection (EN 60529)
Housing material
Temperature (operation)
Temperature drift
Connection
Connection accessories
Connection
ipf electronic gmbh │ Rosmarter Allee 14 • 58762 Altena • Germany │ Tel +49 2351 9365-0 • info@ipf-electronic.com • www.ipf-electronic.com
MANUAL • Subject to alteration! Version: May 2021
0 ... 150mm
18 ... 30V DC
Push-pull, no/nc switchable
150mA
+
+
2.0V DC
20Hz
40mA
20 x 20mm
1mm
0.5mm
2 ... 20mm (adjustable via IO-Link)
60mm
Teach-in
400kHz
III
500V
IP 67
Brass nickel plated
-25 ... +70°C
0,2%/K (uncompensated)
M12-connector 4-pin
z.B. VK200325
Dimensional drawing
1
