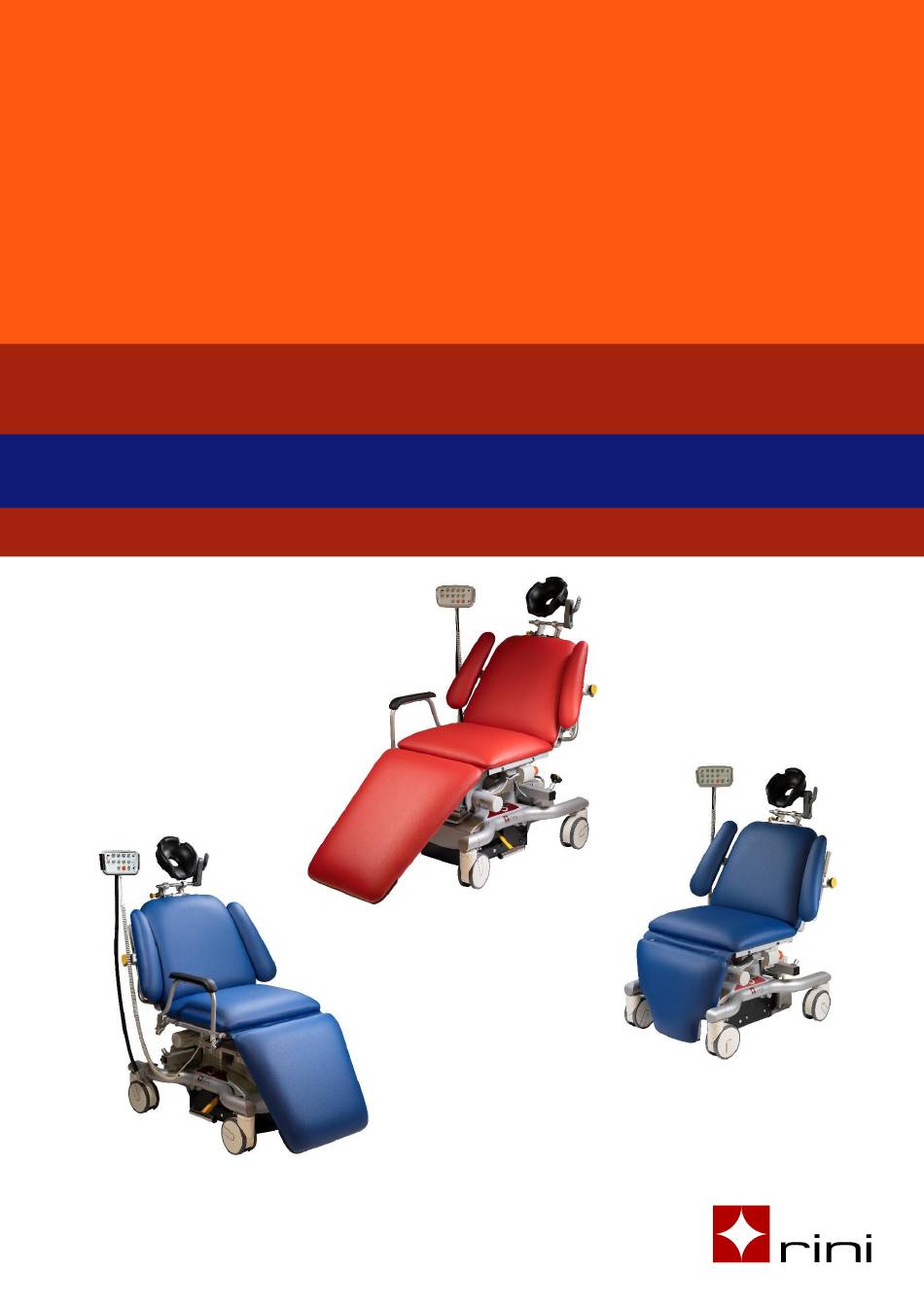

- Page 1 User manual Operating table RiEye Mk2S - Model R5 100-00105-05 - Model R6 100-00105-06 - Model R7 100-00105-07 2011-0101 v11 92 79...
-
Page 2: Table Of Contents
Operating table RiEye Mk2S Table of content Introduction - operating table RiEye Mk2S ............3 Unpacking ........................5 Important – Before use ..................... 5 Product classification and key data ............... 7 Getting started ......................8 Picture and location of components ..............8 Areas of use ...................... -
Page 3: Introduction - Operating Table Rieye Mk2S
Accessory rails are fitted on each side of the back cushion enabling mounting of various optional accessories from Rini or a third-party supplier. The four large wheels, that are equipped with heavy duty ball... - Page 4 Operating table RiEye Mk2S RiEye Mk2S is based on a base platform and is available in three models that can be equipped with most of the available accessories making it possible to customize the table for different mobile and stationary procedures. Model R5 Width 580mm/23in and leg rest 400mm/16in.
-
Page 5: Unpacking
If accessories are separately included in the package they must be assembled as described in this manual or as directed by Rini or your local Rini representative. All electrical connections are pre-wired and ready to use. Check that the battery is charged and connected and also make sure that the emergency stop is deactivated. - Page 6 Operating table RiEye Mk2S Mounting of cushions The cushions have a quick locking mechanism that allows easy mounting and removal. Make sure when mounting that the material between the cushions is placed as shown in the pictures so it does not get stuck.
-
Page 7: Product Classification And Key Data
“Class 1”. The product's device class according to the US FDA is “Class 1” and exempt from premarket notification 510(k) requirements. The product is traceable via serial number and Rini has a "Post- market surveillance" system integrated within its quality system that is certified according to ISO13485 for medical devices. -
Page 8: Getting Started
Operating table RiEye Mk2S Getting started Picture and location of components Main components of RiEye Mk2S (Model R7) 1 Headrest (standard model) 2 Hand control 3 Backrest width extension (option) 4 Drape support with air connection (option) 5 Side rails (option) 6 Leg rest (show in picture is model R6) 7 Detachable battery module 8 Front wheels left with directional lock capability... -
Page 9: Areas Of Use
The table is only intended for indoor use and transport of patients on normal floor conditions. The table may only be equipped with accessories and components that have been approved by Rini. Repairs or any other technical modifications of the table may only be performed by authorized personnel from Rini. -
Page 10: Hand Control Panel Picture And Description
Operating table RiEye Mk2S To brake and lock the position of the table the foot pedal is pressed down. The brake is released by lifting the pedal until the middle position has been reached. To set the directional lock, first align the front left wheel straight and then pull the foot pedal fully upwards. -
Page 11: Programmable User Setting
Operating table RiEye Mk2S function can be selected at a time. The function keys are used in conjunction with Up and Down buttons. Seat - Raises and lowers the height of the table Back - Changes the angle of the backrest Leg - Changes the angle of the leg rest Knee - Raises or lowers the knee support Up - Controls the upward direction after the selection function... -
Page 12: Trendelenburg Position
0,5 seconds. The yellow button activation function can be deactivated, please contact Rini or your local Rini distributor. If the Yellow button activation function is deactivated the joysticks will have direct control and the joysticks are always active. -
Page 13: Automotion By The Foot Control (Optional)
Automotion by the Foot control (optional) All RiEye with serial number suffix XXXX-04 or over the automotion can be controlled by the foot control, please contact Rini or your local Rini distributor. When automotion is activated by the foot control, the yellow button safety activation function will be deactivated, joysticks are always active and cause RiEye motions when touched. -
Page 14: Headrest (Weightless)
Operating table RiEye Mk2S 5.10 Headrest (weightless) A patented design has been developed to minimize the number of manual adjustments needed for medical staff during an operation cycle. At the same time the patient will experience greater comfort compared to a conventional operating table. There are several headrest models, adapted for different treatment areas, available and please view full range at www.rinicompany.com... -
Page 15: Headrest Doublelink
Operating table RiEye Mk2S 5.11 Headrest Doublelink Adjust a base angle and height of the headrest bowl with the locking mechanism “B”. The headrest should normally have a slightly raised angle by the neck for maximum patient comfort. A basic setting of the headrest should be made while the patient is in a sitting position (backrest in upraised position) according to the pictures below. -
Page 16: Electrical Adjustment For Doublelink (Optional)
Operating table RiEye Mk2S 5.13 Electrical adjustment for doublelink (optional) Fine adjusting the angle of the weightless headrest can be made electrically by the hand control with the right joystick on the foot control. The electrical adjustment can be useful when the angle between the patient's head and the microscope needs to be fine-tuned and the headrest as such is covered and sterile. -
Page 17: Charging And Handling Of Batteries
Lead batteries older than 4 years should be replaced. New batteries must be ordered from Rini or a Rini approved distributor. Lithium iron batteries can do twice the number of operating cycles and weighs half of the lead batteries and have a longer lifespan. -
Page 18: Accessoaries To Rieye Mk2S
Operating table RiEye Mk2S Accessoaries to RiEye Mk2S Some of the accessories ordered will come pre-mounted on the table but can also be mounted afterwards. These include Driving handle leg rest, Attachment rails on the seat and Collapsible side rails. Normally these should stay fixed on the table. -
Page 19: Side Rails
Operating table RiEye Mk2S In addition to the standard rails located at the backrest of the table there is an option to have rails along the seat on the left/right side. This is useful to increase the flexibility when mounting other accessories. -
Page 20: Backrest Extension - Width And Length
Operating table RiEye Mk2S If backrest width extensions are used, first remove the one on the side where the anaesthesia armrest should be mounted and then lock the armrest with the clamp. Backrest extension – width and length Used for pressure relief and comfort typically for large or tall patients. The width extension is attached to the rails on the backrest. -
Page 21: Wrist Support
Operating table RiEye Mk2S Wrist support The wrist support is an accessory that grants pressure relief for the surgeon during operation. It is built around a foldable bow that can be adjusted in height, depth and sideways position. The wrist support should not be loaded with more than 5 kg/11lb. Note that there is a pinching hazard when folding. -
Page 22: Pole
Operating table RiEye Mk2S 6.12 IV pole Easy to mount either on the left- or right-hand side of the table. Has twin hooks for infusion pumps and is easy to adjust in height. The IV-Pole should not be loaded with more than 2kg / 4lb 6.13 Drape support with and without air connection Both versions of the drape support are easy formable and keeps the... -
Page 23: Maintenance
Detail Disinfectants Information Contact Rini or your local sales Soap water + ethanol 75% representative for the full list of Soap water + hydrogen tested cleaning products... - Page 24 Operating table RiEye Mk2S Adjusting the headrest Doublelink The headrest is one part of the operating table that is always used and most patient critical. It is essential that the function is verified and adjusted when required. During normal wear and tear the mechanism needs tightening –...
-
Page 25: Service And Repairs
• Check of cushions quality and damages to avoid bacteria traps • Check of electrical products, batteries, and battery charger Contact Rini or your local Rini distributor for information regarding spare parts for your product. The product should only be repaired by Rini or by a Rini authorized service centre/engineer. -
Page 26: Technical Data
Operating table RiEye Mk2S Technical data Dimensions Length x Width Back support 500 x 580/680(XL)mm / 19 x 23/27(XL)in Seat cushion 430 x 580/680(XL)mm / 17 x 23/27(XL)in Leg support 400/500/700 x 580mm / 16/19/27in Headrest 180 x 210mm / 7 x 8in (integral mould) Maximum width 750mm /30in (footprint of chassis) Maximum length... -
Page 27: Disposal And Recycling
Operating table RiEye Mk2S Disposal and recycling The product is mainly made from environmentally recyclable materials such as steel, stainless steel, aluminium, and plastics. Rini recommends that the materials be sorted and recycled in connection with the destruction of the product. - Page 28 Rini Ergoteknik AB Fågelsångsvägen 3B SE-186 42 Vallentuna Sweden Phone +46 8 594 77170 Email info@rini.se www.rinicompany.com...
