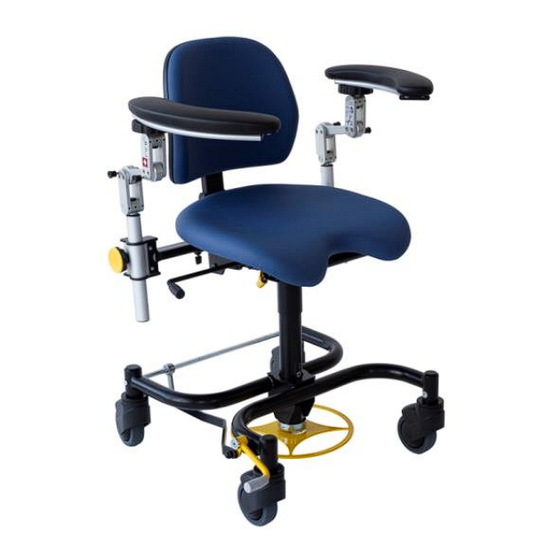

- Page 1 User Manual Surgeon Chair Carl - Model - Carl Spring R6 Rilis - Model - Carl Swing R6 Rilis - Model - Carl Spring R7 OneGrip - Model - Carl Swing R7 OneGrip Spring R6 Swing R6 Spring R7 Swing R7...
-
Page 2: Table Of Contents
Surgeon Chair Carl Spring and Carl Swing Table of content Surgeon chair Carl ................3 Important - Before use ..............3 Unpacking and installation ............. 3 Product classification and key data ..........4 Intended areas of use ..............5 Basic adjustment of the chair ............6 Model R6 - "Rilis"... -
Page 3: Surgeon Chair Carl
The model R6 is supplied with Rini's patented safety armrest "Rilis" that can be adjusted with high precision to the desired position. The model R7 is equipped with "OneGrip" armrests, popular when small adjustments are required. -
Page 4: Product Classification And Key Data
MDR 2017/745 Annex VIII is “Class 1”. Previous generations and similar products are also within risk class “Class 1”. The product is traceable via serial number and Rini has a "Post-market surveillance" system integrated within its quality system that is certified according to ISO13485 for medical devices. -
Page 5: Intended Areas Of Use
Surgeon chair Carl Spring and Carl Swing product was manufactured appears on the type plate below. For questions about this product, specify the UDI and SN for identification. 3.1 Intended areas of use The surgeon chairs Carl Spring and Carl Swing are developed for different types of microsurgeries where the surgeon needs a stable seated work position with flexible relief for the arms. -
Page 6: Basic Adjustment Of The Chair
Surgeon chair Carl Spring and Carl Swing 4. Basic adjustment of the chair 1. Armrests can be placed in two alterative positions, either in front of the seat or towards the back of the seat (shown are R6 armrests). 2. Adjustment of height of backrest 3. -
Page 7: Model R6 - "Rilis" Safety Armrest
Surgeon chair Carl Spring and Carl Swing 4.1 Model R6 - "Rilis" safety armrest Rinis patented safety armrest Rilis has extensive adjustment possibilities to offer an optimal ergonomic working position. 5. Lock wheel for adjusting the armrest longitudinal and lateral 4. -
Page 8: Model R7 - "Onegrip" Armrest
Surgeon chair Carl Spring and Carl Swing 4.2 Model R7 - "OneGrip" armrest The OneGrip is suitable when an up/down adjustment range is needed and it is required to be able to adjust the armrest while sterile draped. 5. Lever for fine adjustment of the armrest angle up/down 4. -
Page 9: Tips For Comfortable Position
Surgeon chair Carl Spring and Carl Swing 4.3 Tips for comfortable position To achieve the best level of comfort please try the following steps. 1. Whilst seated in the chair, adjust the height of the chair to achieve a 90 angle of the legs. -
Page 10: Disinfection, Cleaning And Repairs
Water and soap Use damp cloth Repairs The product should only be repaired by Rini or a Rini authorised service centre. Product to be repaired under warranty must be sent to Rini factory or an authorised Rini service centre. Unauthorized repairs and modifications may result in loss of function and void warranty. -
Page 11: Technical Specifications
700 to 1060 hPa 8. Disposal and recycling The product is mainly made from environmentally recyclable materials as steel, stainless steel, aluminum and plastics. Rini recommends that the material be sorted and recycled in connection with the destruction of the product. - Page 12 Surgeon Chair Carl Spring and Carl Swing Rini Ergoteknik AB Fågelsångsvägen 3B SE-186 42 Vallentuna Sweden Phone +46 8 594 77170 Email info@rini.se www.rinicompany.com...
