Figure 2.1 Power Supply And Grounding Connections - RLE Technologies WiNG-MGR v2 User Manual

2
Getting Started
If you would like to connect protected Earth ground to the unit, a threaded insert is provided
1
on the enclosure. Connect an 18AWG ground wire from the threaded insert ground terminal
to a suitable Earth ground.
Plug the provided wall adapter into the barrel at P1 and a UPS outlet. The wall adapter has a
2
five foot (1.524m) power cord.
If you're providing your own power supply, connect 24VDC to the unit through the power
3
terminal block.

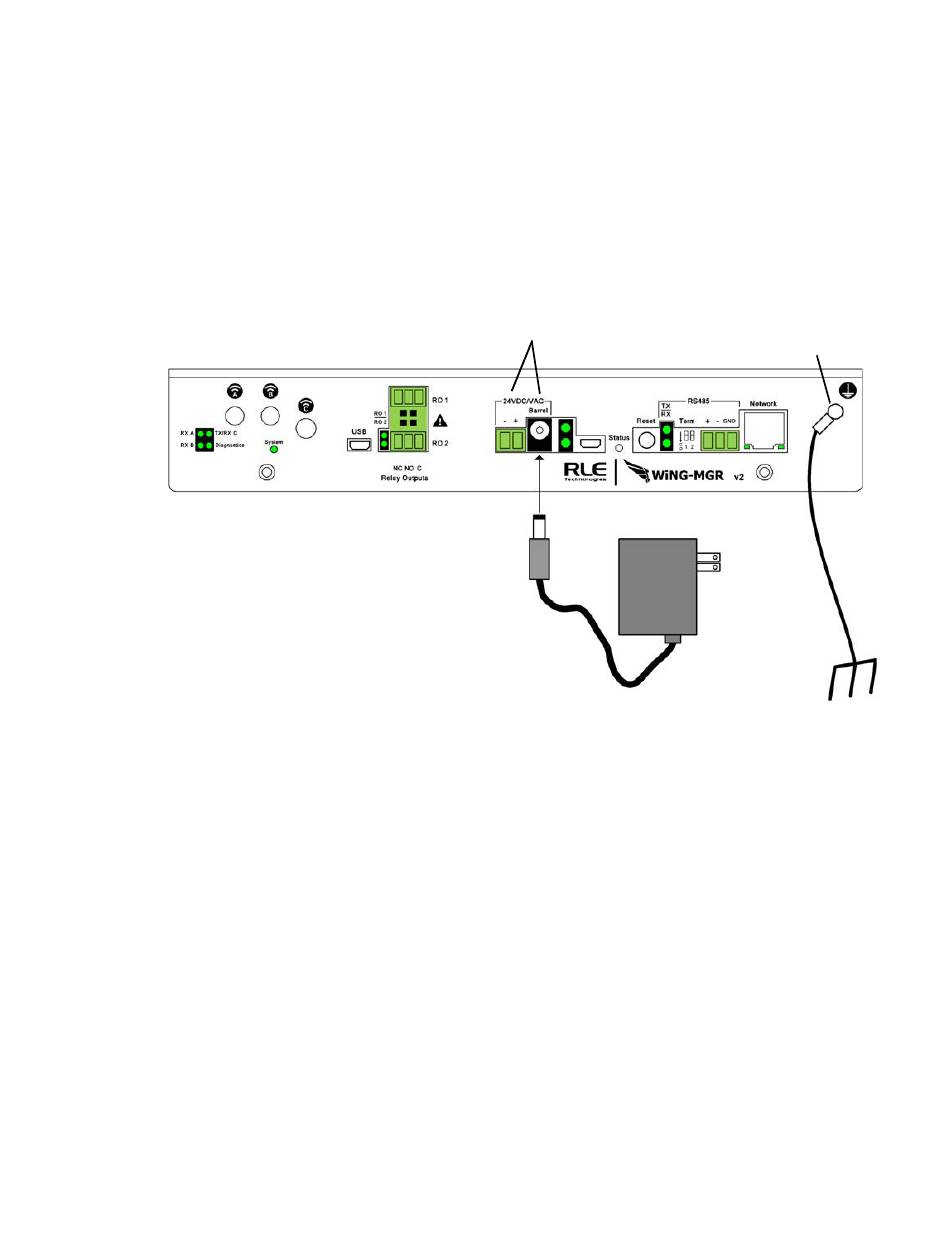

Figure 2.1
16
Power Supply and Grounding Connections
WiNG-MGR v2 User Guide
Power unit through EITHER
the terminal block or barrel,
but NOT BOTH! Grounding
PEM
