RLE Technologies LD5100 User Manual

Leak detection
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Leak Detection
LD5100
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LD5100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RLE Technologies LD5100

Summary of Contents for RLE Technologies LD5100

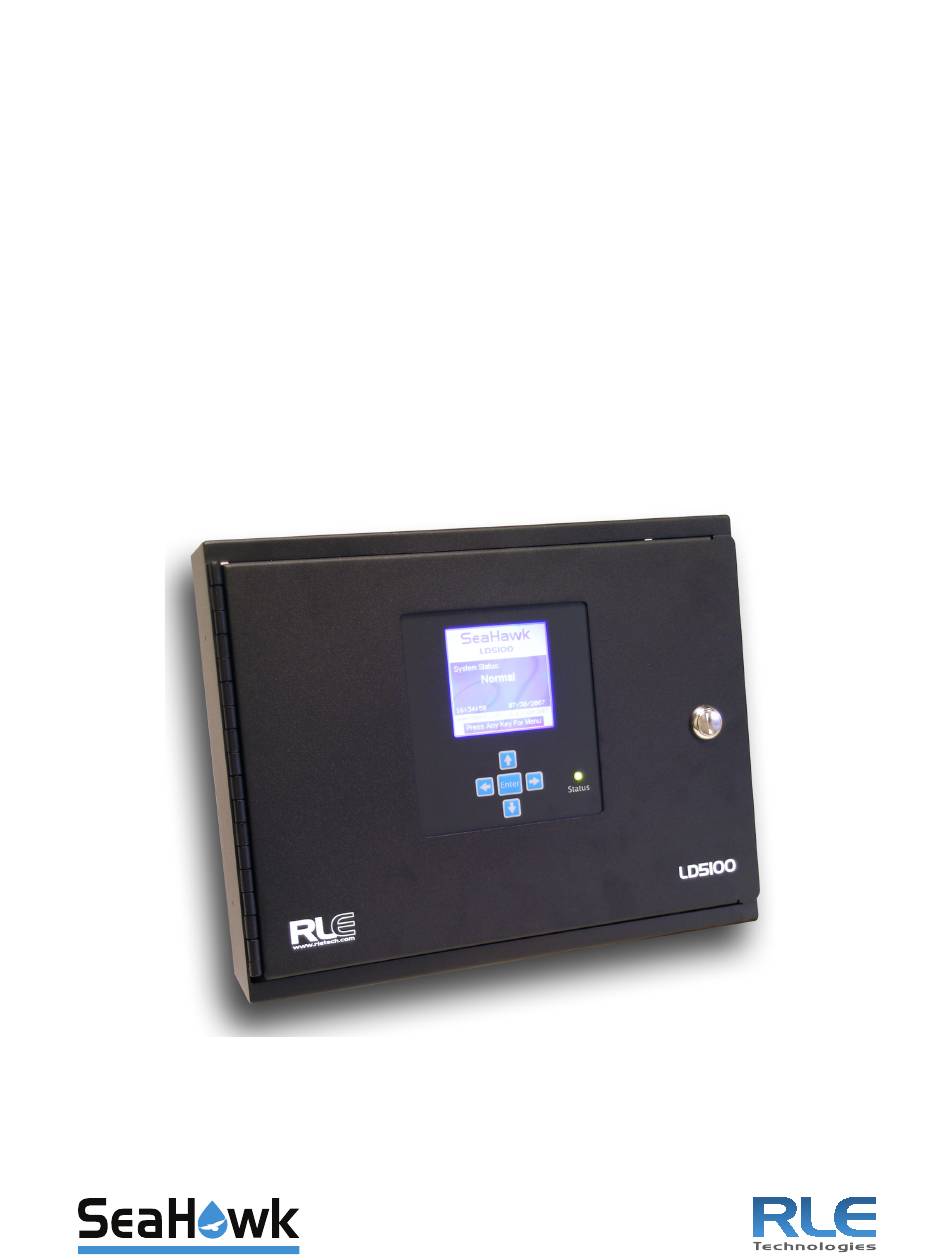

  • Page 1 Leak Detection LD5100 User Guide...
  • Page 2 Copyright and Trademark Notices © Raymond & Lae Engineering, Inc. 2011. All rights reserved. RLE® is a registered trademark and Seahawk™, Falcon™, and Raptor™ are trademarks of Raymond & Lae Engineering, Inc. The products sold by Raymond & Lae Engineering, Inc. are subject to the limited warranty, limited liability, and other terms and conditions of sale set forth at http://rletech.com/RLE-Terms-and-Conditions.html..
  • Page 3 A request for assistance may be sent to support@rletech.com. Otherwise, please call us directly at: (970) 484-6510, and press “2” for technical support. The following information is located on the bottom of each LD5100 unit. Please have this information available whenever a technical support call is placed:...
  • Page 4 RLE Product Warranty Seller warrants to the Ultimate Purchaser (the purchaser who buys for use and not for resale) that all products furnished under this order and which are manufactured by Seller will conform to final specifications, drawings, samples and other written descriptions approved in writing by Seller, and will be free from defects in materials and workmanship.

  • Page 5: Table Of Contents

    Contents Product Overview ........... 15 Description .
  • Page 6 Configuring the LD5100 Via the Local Display (LCD) ....... . .
  • Page 7 Preventive Maintenance ..........65 Troubleshooting .
  • Page 8 Notes: 970.484.6510 rletech.com...
  • Page 9 LD5100 Cable Status Screen ........
  • Page 10 Preventive Maintenance ..........65 Troubleshooting .
  • Page 11 970.484.6510 rletech.com...
  • Page 12 Notes: 970.484.6510 rletech.com...
  • Page 13 Table D.1 Troubleshooting Problems with the LD5100 ......67 Technical Specifications ..........71 Table E.1...
  • Page 14 Notes: 970.484.6510 rletech.com...

  • Page 15: Product Overview

    LD5100's LCD front panel display. The LD5100 allows a single person to perform the mapping of the cable - the process of determining the relationship between a known point along the cable and the value as measured by the LD5100.

  • Page 16: Mechanical Description

    1.4. Installation The LD5100 with LCD is a wall mounted device. Before applying power to the unit, ensure that all connections are correct and all screw terminals are secure. 1.5.

  • Page 17: Figure 1.1 Ld5100 Lcd Interface And The R39 Contrast Adjustment (Left To Right)

    The enter arrow selects a submenu and commits changes. Further LCD interface information can be found in Chapter 5, “LCD Interface” on page 31. Figure 1.1 LD5100 LCD Interface and the R39 Contrast Adjustment (left to right) www.rletech.com...

  • Page 18: Figure 1.2 Ld5100 Enclosure Interior

    Product Overview Figure 1.2 LD5100 Enclosure Interior A dedicated circuit breaker must be provided in the building within close proximity to the LD5100 and be clearly marked as the disconnecting device for this unit. ARNING www.rletech.com 970.484.6510...

  • Page 19: Connections And Settings

    ETTINGS HAPTER The LD5100 is comprised of two boards. The two boards are accessed when the device's front cover is opened. The display board is located on the inside of the door. The main board is the large board on the left side of the enclosure.

  • Page 20: Main Board

    Connections and Settings 2.1. Main Board The connectors on the main board, found at the bottom of Figure 2.1, are labeled TB2 through TB7. The connector on the power board is labeled TB3. The reset switch on the main board is labeled SW1.

  • Page 21: Tb4 & Tb5: Relays

    The RS232 port uses only the transmit, receive, and ground pins (2, 3 and 5). The baud rate is 9600. The RS232 port is set to no parity, 8 databits, 1 stop bit (n, 8, 1). A straight through cable should be used to connect a terminal or PC to the LD5100. 2.1.8 TB6: 4-20mA Output A 4-20mA loop powered output is provided on TB6.

  • Page 22: Tb7: Cable Interface

    2.1.9 TB7: Cable Interface The SeaHawk Water Leak Detection Cable (SC) connects to TB7. A 15 foot (4.57m) non- sensing leader cable (part # LC-KIT) is required to connect the LD5100 to the SC cable. Connect the cable wires to TB7 as follows:...

  • Page 23: Ac Power Input

    Connections and Settings 2.1.10 AC Power Input The LD5100 mounted in the metal enclosure requires either a 120 VAC (105-125 VAC) or 230 VAC (205-250 VAC) connection (2 wire & ground). Connect the ground and power wires to the AC power terminal block. Connect the AC power input as follows:...
  • Page 24 Connections and Settings Notes: www.rletech.com 970.484.6510...

  • Page 25: Installation

    Detection Cable (SC). The kits are not included with the LD5100 and can be purchased separately. Connect the 15 foot (4.57m) leader cable to the LD5100. From left to right, with the screws of the terminal block connector facing up, the wires that screw into the terminal connector should be colored white, black, green, and red.

  • Page 26: Securing Cable To The Floor

    Installation Once the leader cable is plugged into the terminal block, it is ready to be connected to the SC cable. To do this, unscrew the EOL terminator from the end of the leader cable. Attach the first length of the SC cable to the leader cable. Route the SC cable according to a cable layout diagram, if provided.

  • Page 27: Apply Power To The Unit

    LD5100 and be clearly marked as the disconnecting device for this unit. ARNING The LD5100 operates between100 - 240 VAC power. An AC power supply should be run to the location of the unit. Before applying power to the unit, make sure the AC breaker switch is turned off.

  • Page 28: Figure 3.3 Lower Right Terminal Block

    Figure 3.3 Lower Right Terminal Block Once the three wires are connected inside the terminal block, turn the AC power supply back on. The LD5100 should begin booting up. Wait approximately one minute. No alarm should be present. On the LCD, press any key for the main menu. Enter the Cable Status menu. The cable length is displayed.

  • Page 29: 4-20Ma Output Testing

    Place water on the end of the SC cable. Measure the DC voltage across the resistor. The value will be proportional to the length of cable measured by the LD5100. A value of approximately 4.0V, which equates to 20mA, will be read if the length of the cable is identical to the length read by the LD5100.

  • Page 30: 4-20Ma Output Testing

    4-20mA Output Testing Notes: www.rletech.com 970.484.6510...

  • Page 31: Lcd Interface

    HAPTER 5.1. Default/Idle Display When the LD5100 is powered up, diagnostics are performed. The boot ROM and flash program code are verified. While these diagnostics are being performed, the following text is displayed on the LCD: Figure 5.1 LD1500 Bootup Screen www.rletech.com...

  • Page 32: Main Menu

    From the Main Menu, use the up and down arrow keys to position the arrow on the LCD in front of the appropriate menu choice. Press the Enter key to select a menu. Figure 5.3 LD5100 Main Menu Screen www.rletech.com...

  • Page 33: View Zones

    5.4. Cable Status The Cable Status option displays the Cable Status screen. This screen shows information about the SeaHawk Leak Detection Cable (SC) attached to the LD5100. Figure 5.5 LD5100 Cable Status Screen 5.4.1 System Status During a no alarm condition, the System Status will display Normal. The System Status will change during an alarm condition and display either a Leak or Cable Break alarm.

  • Page 34: Cable Length

    LCD Interface 5.4.2 Cable Length The length of cable installed on the LD5100, in either feet or meters. To change units refer to 5.8.9, “Feet / Meters” on page 37. 5.4.3 Current This label shows the current on the SC cable. A current will register if there is any conductive material (e.g., water) detected on the cable.

  • Page 35: Alarm History/Trend Log

    The Alarm History/ Trend Log Screen allows users to view the alarm history, trend log, and erase data from both. Figure 5.6 LD5100 Cable Status Screen 5.5.1 Alarm History Log The Alarm History Log displays the most recent 100 events recorded by the unit. Events are...

  • Page 36: Comm Port Status

    5.6. Comm Port Status The Comm Port Status menu displays the settings and diagnostics of both of the LD5100's RS485 Modbus ports. This screen will display each port's Modbus address and packets counters. Press Enter to reset all packet counters displayed.

  • Page 37: Leak Trip Point

    LCD Interface 5.8.1 Leak Trip Point The Leak Trip Point option allows users to modify the leak detection trip point for the LD5100. This trip point helps the system avoid false alarm readings. 5.8.2 Contamination Trip Point The Contamination Trip Point option allows users to modify the contamination trip point for the LD5100.

  • Page 38: Language

    The Cable Test Relay option activates the internal test circuit to simulate 2500 feet (762m) cable. This allows the SC cable to be removed from the LD5100 without causing alarms. The Cable Test Relay will stay on for 300 seconds and a counter will be displayed.

  • Page 39: Zone Setup

    LCD Interface 5.9. Zone Setup The Zone Setup menu will display a table of configured zones. A zone is a set length of cable that may have a name or description assigned to it. Upon alarm, if a leak distance falls within a zone’s boundary, the zone's description will appear on the main screen.

  • Page 40: Point Mapping

    When using the leak detection master option, the LD5100 relays can be activated according to the slave unit alarm. If the slave has a leak alarm or a cable break alarm, the LD5100 leak or cable relay will change state, respectively (i.e. it will trigger that an alarm is present. The zone will then appear on the LCD and an alarm state will be reported to the top level of the system.

  • Page 41: Mapping The Cable

    The LD5100 computes the distance from the control panel to the leak along the length of SC cable attached to the unit. In most cases, the SC cable is laid in a curved or serpentine pattern.

  • Page 42: Mapping Directions

    To test the map, wrap a wet paper towel or sponge or pour a small puddle of water around the cable at one of the previously mapped points. The LD5100 produces a short beep within approximately 30 seconds. The LCD displays the LD5100's calculated distance to the leak.

  • Page 43: Eia-232 Interface

    Make sure the EIA-232 port is connected to a PC or terminal with a straight through cable (not provided). Run terminal emulation software (i.e., HyperTerminal) and make sure the settings match the LD5100 EIA-232 port configuration; see 2.1.7, “RS232 Connector” on page 21 for port configuration details. When the LD5100 is powered up, diagnostics are performed. The boot ROM and flash program code are verified.

  • Page 44: Main Menu

    EIA-232 Interface Figure 7.1 EIA-232 Bootup Screen 7.2. Main Menu Once the system is entirely booted, press the Enter key on your PC or terminal to display the Main Menu. Figure 7.2 EIA-232 Main Menu Screen www.rletech.com 970.484.6510...

  • Page 45: Sc - System Configuration

    Selection 1, Modify LCD Password, will allow users to set a new LCD password for the System Setup LCD menu. A four digit number must be entered in place of the default 1234 password. A password of 0000 will disable all password protection on the LD5100. 7.3.2 Zone Setup – 2 Selection 2, Zone Setup, will allow users to configure zones.

  • Page 46: Diagnostics - 3

    EIA-232 Interface 7.3.3 Diagnostics – 3 Selection 3, Diagnostics, will allow users to open the LD5100's Diagnostic menu. This menu is primarily used for advanced diagnostics and troubleshooting. Figure 7.4 EIA-232 Diagnostics Menu The options available on the Diagnostics Menu are described in Table 7.1.

  • Page 47: Other Main Menu Functions

    CT – Clear Trend Data Table CT clears all records from the Trend Data Table. TI – Display Date/time TI displays the LD5100’s current date and time MT ON – Measurement Trace MT ON displays advanced manufacturer diagnostics of the microprocessor.
  • Page 48 EIA-232 Interface Notes: www.rletech.com 970.484.6510...

  • Page 49: Modbus Communication

    The LD5100 is capable of communicating via the half-duplex RS485 serial communication standard. The LD5100 is configured to act as a slave device on a common network. The RS485 medium allows for multiple devices on a multi-drop network. The LD5100 is a slave only device and will never initiate a communications sequence.

  • Page 50: Function Field

    8.1.1.2 Function Field The function field is one byte in length and tells the LD5100 which function to perform. The supported functions are 03 (Read 4xxxx output registers), 04 (Read 3xxxx input registers), 06 (Preset single register) and 16 (Preset multiple registers).

  • Page 51: Packet Communications For The Ld5100

    This section covers the registers, their names, and a brief description of what they refer to. 8.2.1 Function 03: Read Output Registers To read the LD5100 parameter values, the master must send a Read Output Registers request packet. The Read Output Registers request packet specifies a start register and the number of registers to read.

  • Page 52: Table 8.3 Output Registers

    Modbus Communication Table 8.3 Output Registers Register Name Description Units Range Amps 40001 Leak Threshold Trip current for leak alarm 0-65535 Amps 40002 Contamination Trip current for contamination alarm 0-65535 Threshold 40003 Re-Alarm Re-Alarm delay Minutes 0-65535 40004 Latched Alarm Latching Alarms 0=No 1=Yes 0-65535...

  • Page 53: Function 04: Read Input Registers

    Modbus Communication 8.2.2 Function 04: Read Input Registers To read the LD5100 input values, the master must send a Read Input Registers request packet. The Read Input Registers request packet specifies a start register and the number of registers to read. The start register is numbered from zero (30001 = zero, 30002 = one, etc).

  • Page 54: Table 8.5 Input Registers

    Modbus Communication Table 8.5 Input Registers Register Name Description Units Range 30001 Status Bit level status None 0-65535 30002 Leak Distance Location of leak Ft/Meters 0-65535 30003 Units Unit of measure 1=Ft 0-65535 0=Meters Amps 30004 Leak Current Leakage current on cable 0-65535 30005 Cable Length...

  • Page 55: Table 8.6 Status Flags (Register 30001)

    Modbus Communication Table 8.6 Status Flags (Register 30001) Description 1 = Leak is Detected 1 = Cable Break Alarm 1 = Contamination is detected 03-15 Spare Table 8.7 Status Flags (Register 30010) Description 1 = Zone1 1 = Zone2 1 = Zone3 1 = Zone4 1 = Zone5 1 = Zone6...

  • Page 56: Function 06: Preset Single Register

    1 = Communication Loss 8.2.3 Function 06: Preset Single Register To set the LD5100 parameter value, the master must send a Preset Single Register request packet. The Preset Single Register request packet specifies a register and the data to write to that register.

  • Page 57: Function 16: Preset Multiple Registers

    Modbus Communication 8.2.4 Function 16: Preset Multiple Registers To set multiple LD5100 parameter values, the master must send a Preset Multiple Registers request packet. The Preset Multiple Register request packet specifies a starting register, the number of registers, a byte count and the data to write to the registers. The register is numbered from zero (40001 = zero, 40002 = one, etc).

  • Page 58: Rtu Framing

    Modbus Communication 8.3. RTU Framing The example below shows a typical Query/Response from the LD5100 module. Table 8.12 Query Sample Numbers Starting Starting Number of Slave Function Register Register Registers Registers CRC 16 Address Code “Msb” “Lsb” “Lsb” “Lsb” “Lsb”...

  • Page 59: Updating Firmware

    Then click “send.” This might have to be repeated if this is the first time uploading firmware. After the file has been uploaded, enter the “RUN” command, or power down the LD5100 and then turn it back on.

  • Page 60: A Updating Firmware

    Updating Firmware Notes: www.rletech.com 970.484.6510...

  • Page 61: Leak Detection Modbus Master

    ASTER HAPTER This feature allows the LD5100 to act as a Modbus master, so it can talk to other RLE distance read panels. Up to 11 RLE distance read panels can be connected to the EIA-485 port#1 on the LD5100. The system status can be viewed by using the view zones menu. The LD5100 will display leak, cable break, cable contamination, and loss of communications alarms from the slave units connected to it.

  • Page 62: Configuring The Ld5100 Via The Local Display (Lcd)

    RLE recommends generating alarms from each panel to ensure proper communication. You can configure the LD5100 relays to change state according to the slave unit alarm. If the slave has a leak alarm or a cable break alarm, the leak or cable relay, will change state, respectively.

  • Page 63: Configuring The Ld5100 Via The Eia-232 (Craft) Port

    First, the Com Port Setting must be configured on the LD5100: Using the Local display (LCD) on the LD5100 press any of the buttons. Move the cursor down and select the Com Port Settings, press Enter to access the menu.
  • Page 64 Leak Detection Modbus Master Type “2” for configuring the Zone Setup. To configure Input #2, type D2, then press Enter. Press “1” to enable the zone then press Enter. To assign a label to that field type “L2”, then press Enter. You can enter the label desired for that Slave device.

  • Page 65: Preventive Maintenance

    Place water on the cable. Verify the Leak Detected alarm on the control panel. Compare the distance reading on the LD5100 LCD to the reference map to verify that the LD5100 displays the correct leak location. Dry the cable and verify that the LD5100 returns to normal.
  • Page 66 Preventive Maintenance Notes: www.rletech.com 970.484.6510...

  • Page 67: Table D.1 Troubleshooting Problems With The Ld5100

    125 VAC. If the Input Selector Switch is set for 230, voltage should be between 205 and 250 VAC. If no AC power is present at terminal block, check the circuit (breaker) the LD5100 control panel is powered by. If voltage is present, go to step 2.
  • Page 68 Troubleshooting Table D.1 Troubleshooting Problems with the LD5100 (continued) Problem Action Verify that the leader cable from the SC cable run is plugged into Cable Break Alarm terminal block TB7. Verify that the end-of-line terminator is installed on the end of the orange sense cable run.
  • Page 69 Power down (shut off) the control panel and remove the end-of- line terminator (EOL) from the end of the SC cable. Locate the first section of SC cable from the LD5100 control panel. Where it joins to the second section of cable, disconnect and install the End-of-Line terminator at the end of the first section of SC cable.
  • Page 70 Troubleshooting Notes: www.rletech.com 970.484.6510...

  • Page 71: Table E.1 Technical Specifications

    P P E N D I X ECHNICAL PECIFICATIONS HAPTER Table E.1 Technical Specifications Power 100-240VAC @ 500mA Max, 50/60 Hz; hardwired power supply Inputs Water Leak Detection Cable Compatible with SeaHawk SC Cable (not included) Cable Input Requires SeaHawk LC-KIT: 15ft (4.57m) leader cable and EOL (LC-KIT not included) Maximum Length 5,000ft (1,524m)

  • Page 72: E Technical Specifications

    Technical Specifications Table E.1 Technical Specifications (continued) Logging Capabilities Event Log Last 500 events Trend Log Cable current level every day, for the last 288 days Login Security Display Access 1 Administrator (password for configuration, no password required to view panel status) Terminal Emulation Access None Front Panel Interface...
