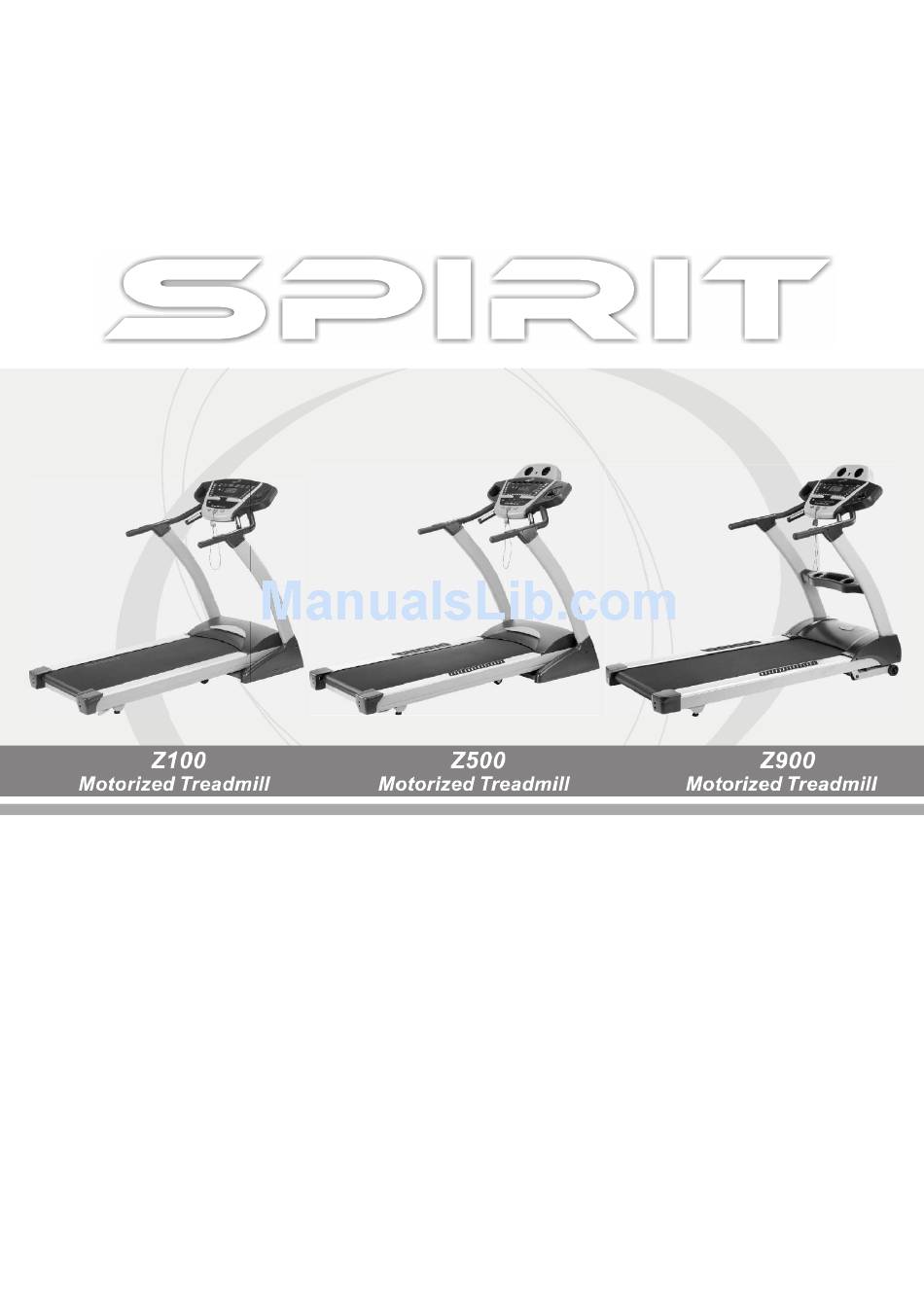

- Page 1 OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW TREADMILL!
-
Page 2: Table Of Contents
Service Checklist - Diagnosis Guide Manufacturer s Limited Warranty ATTENTION- THIS TREADMILL IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED APPLICATION VOIDS THIS WARRANTY IN ITS ENTIRETY. FOR THAT APPLICATION. ANY OTHER ...16 ...19 ..23 Z100. / Z500 / Z900... -
Page 3: Product Registration
Through your dealer, Spirit will do all we can to make your ownership experience as pleasant as possible for many years to come. The local dealership where you purchased this treadmill is your administrator for all Spirit warranty and service needs. -
Page 4: Important Safety Instructions
Important Safety Instructions WARNING - Read all instructions before using this appliance. DANGER - To reduce the risk of electric shock disconnect your Spirit treadmill from the electrical outlet prior to cleaning and/or service work. WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons, install the treadmill on a flat level surface with access to a 120-volt, 20-amp grounded outlet. -
Page 5: Important Electrical Information
Whenever the adapter is used, it must be held in place by a metal screw. Grounded Outlet Grounding Pin Grounded Outlet Box Adapter Tab of Grounding Metal Screw Screw Z100. / Z500 / Z900... - Page 6 NEVER mount or dismount the treadmill while the belt is moving. Spirit treadmills start with at a very low speed and it is unnecessary to straddle the belt during start up. Simply standing on the belt during slow acceleration is proper after you have learned to operate the unit.
-
Page 7: Assembly Instructions
Assembly Instructions (XT200 / XT600) Assembly Instructions ( Z100 / Z500 ) Z100. / Z500 / Z900... - Page 8 Install the Fan Assembly onto Console with 3 pcs of M3 x 18 m/m Phillips Head Screws by the Combination M5 Allen Wrench & Phillips Head Screwdriver. (Z500 only) PLEASE LOCK DOWN ALL HARDWARE AFTER THE ACCESSSORIES HAVE BEEN ASSEMBLED. Z100. / Z500 / Z900...
- Page 9 Assembly Instructions (Z900) Z100. / Z500 / Z900...
- Page 10 ASSEMBLY PACK CHECK LIST (Z900) (3 pcs) M3 x 18 m/m Phillips Head Screw (10 pcs) 5/16 x 1/2 Button Head Socket Screw (4 pcs) 5/16 x 3/4 Button Head Socket Screw (2 pcs) M5 Iron Plate Nut (2 pcs) 3/8 x 2T Spring Washer...
-
Page 11: Folding & Transport Instructions
The treadmill is equipped with four transport wheels which are engaged when the treadmill is folded. After folding simply roll the treadmill away. Z900 Carefully lift the treadmill at the rear roller area, grasping the two side end caps, and roll the treadmill away. Z100. / Z500 / Z900... -
Page 12: Operation Of Your New Treadmill
Operation of Your Treadmill Getting familiar with the control panel Z100 Console Z500 / Z900 Console Z100. / Z500 / Z900... -
Page 13: Getting Started
If the Stop button is pressed a third time, the console will return to the idle mode (start up) screen. If the Stop button is held down for more than 3 seconds the console will reset. Z100. / Z500 / Z900... - Page 14 Incline will remain in it s position when display is turned off. Dot Matrix Center Display Twenty rows of Red (Tri-color on Z500 / Z900) dots (8 high) indicate each segment of a workout. The dots are only to show an approximate level (speed/incline) of effort. They do not necessarily indicate a specific value - only an approximate percent to compare levels of intensity.
-
Page 15: Programmable Features
STEP 4: The Heart Rate window will now be blinking a value, which is your Age. Entering your correct age affects the heart rate Bar Graph Display ( Z500 / Z900 only) and the Heart Rate Control programs. Use the Up/Down keys to adjust, then press enter. -
Page 16: User Programs
This is for the incline programming. Repeat the above process to program all segments for incline. STEP 6: Press the Start button to begin the workout and also save the program to memory. Z100. / Z500 / Z900... -
Page 17: Target Heart Rate
With all Spirit Heart Rate Control treadmills, you may use the heart rate monitor feature without using the Heart Rate Control program. This function can be used during manual mode or during any of the nine different programs. -
Page 18: Using A Heart Rate Transmitter
2. Adjust the strap as tightly as possible as long as the strap is not too tight to remain comfortable. 3. Position the transmitter with the Spirit logo centered in the middle of your body facing away from your chest (some people must position the transmitter slightly left of center). Attach the final end of the elastic strap by inserting the round end and, using the locking parts, secure the transmitter and strap around your chest. -
Page 19: Heart Rate Control Operation
The HRC program automatically changes the speed and elevation gradually to achieve the programmed target heart rate. Heart rate Auto-Pilot feature (Z500/Z900 only) This unique feature allows the user to instantly enter the Heart Rate Control mode at any time with the press of a button. -
Page 20: General Maintenance
1/4 turn at a time. DO NOT OVERTIGHTEN Note: Adjustment is through small hole in end cap. Over tightening will cause belt damage and premature bearing failure. Tracking / Tension Adjustment Z100. / Z500 / Z900... - Page 21 Proper belt tracking is an owner responsibility common with all treadmills. ATTENTION: DAMAGE TO THE RUNNING BELT RESULTING FROM IMPROPER TRACKING / TENSION ADJUSTMENTS IS NOT COVERED UNDER THE SPIRIT WARRANTY. Z100. / Z500 / Z900...
- Page 22 BELT / DECK LUBRICATION: Do not lubricate with other than Spirit approved lubricant. Your treadmill comes with one tube of lubricant and extra tubes can be ordered directly from Spirit. There are commercially available lube kits, but the only one currently approved by Spirit is Lube-N-Walk. These kits come with an application wand that makes applying the lubrication easier.
-
Page 23: Service Checklist - Diagnosis Guide
If an extension cord is required it should be as short as possible and heavy duty 16 gauge minimum. Low household voltage. Contact an electrician or your Spirit dealer. A minimum of 110 volt AC current is required. High belt/deck friction. See General Maintenance section on lubrication. -
Page 24: Manufacturer S Limited Warranty
3. If there is a question as to where to obtain service, contact our service department at (870) 935-1107. 4. If no local service is available, Spirit will repair or replace the parts, at Spirit s option, within the warranty period at no charge for parts.
