- Page 1 USER MANUAL SV 111 VIBRATION CALIBRATOR Warsaw, 2022-04-21 Copyright © 2022 SVANTEK. Rev. 01.03 All rights reserved.
- Page 2 Information in this document is subject to change without notice and does not represent a commitment on the part of Svantek. Svantek provides this document “as is”, without warranty of any kind, either expressed or implied, including, but not limited to, its particular purpose. Svantek reserves the right to make improvements and/or changes to this manual, or to the products and/or the programs described in this manual, at any time.
-
Page 3: Table Of Contents
SV 111 User Manual CONTENTS General safety summary ......................4 Calibration ..........................5 Accuracy of calibration ........................5 SV 111 model information ......................5 Unpacking and Inspecting the package contents .................6 Optional accessories ........................7 SV 111 vibration calibrator ......................8 Control panel ..........................9 Operating diagram ........................10 Submenu diagram ......................... -
Page 4: General Safety Summary
SV 111 User Manual 1 General safety summary Review the following safety precautions to avoid injury and prevent from damaging this product or other products connected with it. To avoid potential hazards, use this product only as specified. Qualified personnel should only perform the service procedures. -
Page 5: Calibration
ISO8041:2005. 4 SV 111 model information The model SV 111 is a Portable Vibration Calibrator. It is designed to check/calibrate various types of vibration level meters according to the ISO 8041-1:2017. -
Page 6: Unpacking And Inspecting The Package Contents
(if ordered). In case of any problems, please contact an authorized Svantek representative, the service staff or the manufacturer directly. The complete set includes the following items: •... -
Page 7: Optional Accessories
SV 111 User Manual • Charge SV 111 to the full. In order to charge the battery, connect SA33 AC/DC adapter plug to SV 111 EXT_DC supply socket and then connect it to the mains. SA33 AC/DC adapter is placed in the charger slot. -
Page 8: 111 Vibration Calibrator

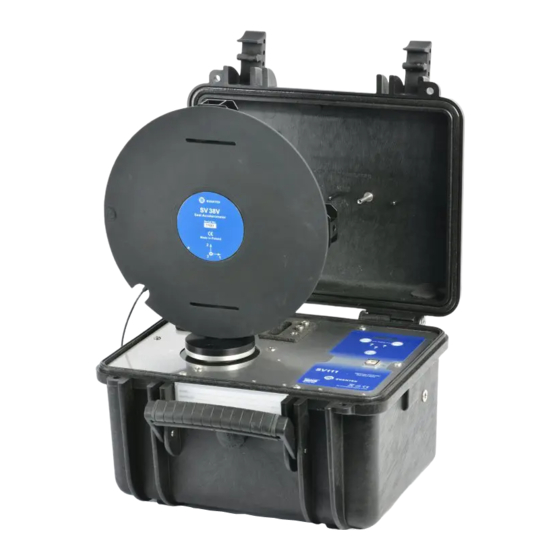

SV 111 User Manual 7 SV 111 vibration calibrator SV 111 vibration calibrator 1.Magnet with two screwdriver tips; 2.Adapter; 3.Hex wrench slot with support sleeves; 4.Charger slot; 5.Shaker; 6.Transportation lock; 7.Support; 8. astening screw; 9.Display; 10.Keyboard; 11.EXT_DC supply socket; 12.USB port;... -
Page 9: Control Panel
SV 111 User Manual 8 Control panel SV 111 control panel 1.Vibrations level button/Power on button A; 2.Start/Stop button; 3.Serial number box; 4.Display box; 5.Vibration frequency button/Power button B; 6. Spirit level; 7.USB port... -
Page 10: Operating Diagram
SV 111 User Manual 9 Operating diagram Sensor installation SV 111 switching on SV 111 levelling SV 111 levelled Skipping the levelling properly process Vibration parameters setting menu … Sample vibration parameters Start shaker Vibrations Shaker vibrates parameters not Shaker... -
Page 11: Submenu Diagram
SV 111 User Manual 10 Submenu diagram • Program submenu can be reached from “Vibrations parameters setting menu” by pressing • To return to “Vibrations parameters setting menu” press... -
Page 12: Calibration Of The Whole-Body Sensor
SV 111 User Manual 11 Calibration of the whole-body sensor The whole-body sensor should be tested/calibrated at 15.92 Hz only! • dismantle the adapter from the case cover and screw it to the shaker with one or more bolts (one central bolt should be sufficient for the system check) •... - Page 13 SV 111 User Manual • position the sensor according to the calibrated axis (channel) and tight the fixing bolt: • put the support system with the tested sensor in the horizontal position on the adapter and tight the fixing bolt:...
-
Page 14: Calibration Of The Sv 105 Hand-Arm Sensor
SV 105 can be calibrated with the use of their dedicated adapters and the calibration description presented in the previous SV 111 User manuals. To perform calibration of the SV 105D Hand-Arm sensor, use the SA 150C belt with the greatest curvature. - Page 15 SV 111 User Manual • Install the calibration adapter with the vibration sensor to the calibrator’s shaker using special stud (included in the SV 105 kit): Positioning of the adapter with the sensor for calibration of the X-axis, Y-axis and Z-axis should...
-
Page 16: Calibration Of The Sv 3023M2 Accelerometer
SV 111 User Manual 13 Calibration of the SV 3023M2 accelerometer The SV 3023M2 accelerometer is mounted on the shaker with special adapter (SA 44). The SA 44 adapter set includes two studs M5/M5 and M5/M3. The M5/M3 stud is used for fixing the accelerometer to the adapter. -
Page 17: Calibration Of The General-Purpose Accelerometer
SV 111 User Manual 14 Calibration of the general-purpose accelerometer The general-purpose accelerometer (for example, SV 80) is mounted directly on the shaker with special stud, normally included in the accelerometer set. -
Page 18: Programming
SV 111 User Manual 15 Programming • Switch on power by pressing two buttons at the same time for a while • The device type information will be displayed • When the battery level is low, ‘LOW BATTERY’ is displayed every 30 sec. - Page 19 HZ (32, 48, 64, 80,...) cannot be higher than 0,95 m/s (94 dB) SV 111 is compensating harmonic distortion X Y Vibration means that vibrations’ level in X or Y (corresponding diode is lighting red) direction are...
-
Page 20: General Care And Cleaning
SV 111 User Manual • Switch off by pressing two power buttons at the same time for a while 16 General Care and Cleaning • Remove the sensor and switch the device off • Disconnect the device from the power supply. -
Page 21: Technical Data
SV 111 User Manual 17 Technical data Calibration signal parameters Frequency 15,92 79,58 159,2 Hz 636,6 �� Vibration 1; 2; 3; 4; 5; 6; 1; 2; 3; 4; 5; 6; accelerations (RMS) 7; 8; 9; 10 7; 8; 9; 10 ��... -
Page 22: Declaration Of Conformity
SV 111 User Manual 18 Declaration of Conformity... -
Page 23: Appendix A Recalibration
SV 111 User Manual Appendix A Recalibration Recalibrations have to be done for all frequencies with vibration level set as shown in the table below: Frequency Vibration level 15.92 Hz 1m/s^2 79.58 Hz 10m/s^2 159.2 Hz 10m/s^2 636.6 Hz 1m/s^2 Recalibration for frequency 15.92 Hz:... - Page 24 SV 111 User Manual • When the device is idle press the ‘Level’ and ‘Freq.’ buttons at the same time to enter the submenu. • First position displayed in submenu will be the battery current status • The submenu positions can be changed by pressing either the ‘Level’...
- Page 25 SV 111 User Manual o Then modification screen will be displayed. o To decrease currently displayed value by 0,05 dB, press the ‘Level’ button o To increase the currently displayed value by 0,05 dB, press the ‘Freq.’ button o Currently set value will be displayed on the screen.
-
Page 26: Appendix B Defining Calibration Coefficient
SV 111 User Manual Appendix B Defining calibration coefficient Use one of formulas bellow: �� • �� = ���� ������ [dB] ���� �� �� Where: A – reference sensor vibration level – selected vibration level of the calibrator • C = Ar – Ac,...
