- Page 1 SV110 user's manual USER MANUAL SV 110 PORTABLE VIBRATION CALIBRATOR Warsaw, August 2016 Copyright © 2015 SVANTEK. All rights reserved.
- Page 2 Microsoft and Windows are registered trademarks of Microsoft Corporation Copyright © 2015, SVANTEK sp. z o.o. All rights reserved. No part of this publication may be reproduced or distributed in any form, or by any means, without prior written consent from SVANTEK, Warsaw, Poland...
-
Page 3: Table Of Contents
SV110 user's manual CONTENTS 1. General safety summary ........................4 2. Calibration ............................4 3. Accuracy of calibration ........................5 4. SV110 model information ........................5 5. Unpacking and Inspecting the package contents ................6 6. Getting started ............................ 7 7. -
Page 4: General Safety Summary
SV110 user's manual 1. General safety summary Review the following safety precautions to avoid injury and prevent from damaging this product or other products connected with it. To avoid potential hazards, use this product only as specified. Qualified personnel should only perform the service procedures. -
Page 5: Accuracy Of Calibration

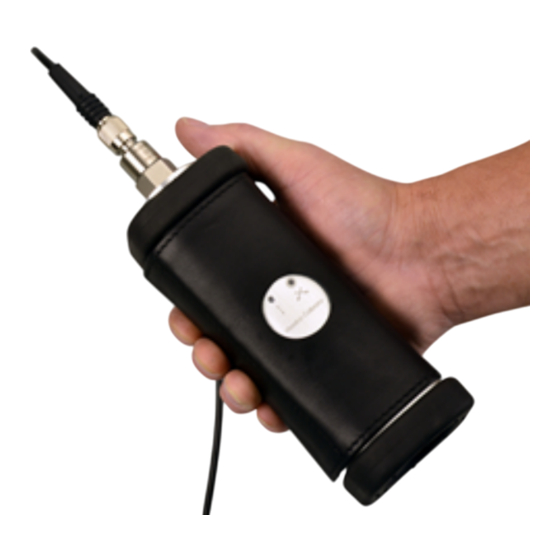

ISO8041:2005. 4. SV110 model information The SV 110 is a hand-held vibration calibrator designed for verification of machine sensors as well as on-site checks of human vibration accelerometers in accordance to ISO 8041:2005. -
Page 6: Unpacking And Inspecting The Package Contents
Upon delivery, please make sure that the device is not damaged and verify that you received the ordered equipment and optional accessories (if ordered). In case of any problems, please contact an authorized Svantek representative, the service staff or the manufacturer directly. -
Page 7: Getting Started
SV110 user's manual 6. Getting started The following figures show the SV 110 controls and ports: SV110 vibration calibrator 1.Shaker; 2.Rubber covers; 3.Keyboard; 4.Aluminum casing; 5.Display; 6.USB port; 7.External vibration diodes. -
Page 8: Manual Control Of The Calibrator
SV110 user's manual Following the requirements of ISO 8041, the calibrator’s built-in reference accelerometer measures the cross-axis (transverse) vibrations to detect any interference to the calibration signal. Faults caused by transverse vibrations are indicated by two LEDS on the calibrator’s housing. This unique solution ensures stability of both the calibration level &... -
Page 9: Menu Content
(“Shutting down” 3… 2… 1… ) is displayed. Thus, the SV 110 gives you time to decide if you really want to turn off the instrument. If you release the key too early, the SV 110 returns to the last presented VIEW mode. - Page 10 SV110 user's manual For 159.2Hz: 1; 2; 3; 4; 5; 6; 7; 8; 9; 10 m/s2; 1; 2; 3; 4; 5; 6; 7; 8; 9; 10 mm/s; 1; 2; 3; 4; 5; 6; 7; 8; 9; 10 µm. Measurement units selection The Units position enables the user to select the <Start/Stop>...
-
Page 11: Calibration
The Unit Label position enables the user to read the unit <Start/Stop> specific information: Copyrighted manufacturer name: SVANTEK (C) Instrument name: SV 110 <Level> Unit serial number: SN 3500 Firmware version: 1.02.1 CRC(OK): 8BD4 <Level>... - Page 12 Switch on calibrator by pressing <Start/Stop> key for a while. In ready to operate mode the SV 110 displays the amplitude and frequency of the shaker By pressing the <Freq.> key select the shaker frequency: 79.58Hz or 159.2Hz.
-
Page 13: General Care And Cleaning
SV110 user's manual If the calibration level is achieved by the unit, the X, Y vibration level is indicated as a % of vibration level generated by shaker in Z direction, but only if this level exceeds 10% value. THD compensation THD (Total harmonic distortion) –... -
Page 14: Charging
USB port is optional and by default is switched off. To charge via USB it is necessary to have USB port with 500mA. Ensure the SV 110 is fully charged prior to use by connecting it to a USB port or to USB charger. The SV 110 will automatically switch on during charging and display how much the internal instrument battery is loaded. - Page 15 SV110 user's manual Install the reference sensor and start the shaker with 159.2Hz and 10m/s vibrations parameters. Wait until the vibrations are steady (diodes are lighting with green continuous light and information “Level OK” is displayed). Read the vibrations level value from the reference sensor. When it is the same as the set one skip to the next frequency.
-
Page 16: Technical Data
SV110 user's manual Where: Where: A – standard sensor vibration level Ac- set vibrations level of calibrated device [dB] –set vibration level of calibrated device Ar – standard sensor vibration level [dB]. 12. Technical data Generated reference (calibration) signals Frequency 79,58 159,2 Hz Vibration... -
Page 17: Document History
SV110 user's manual Document history Version Issue Date Remarks Software Version...
