Installation

Antenna connections

INSTALL the unit in a room where direct light will not fall upon the screen. Total darkness or a reflection on the picture
screen may cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.
OUTDOOR VHF/UHF ANTENNA CONNECTION (ANTENNA NOT INCLUDED)
Follow the instructions for the type of antenna system you intend to use. If using Cable or satellite, see
the next page.
VHF/UHF
75 OHM
UHF 300 Ohm
Combiner
UHF 300 Ohm
Combiner
VHF 75 Ohm
7

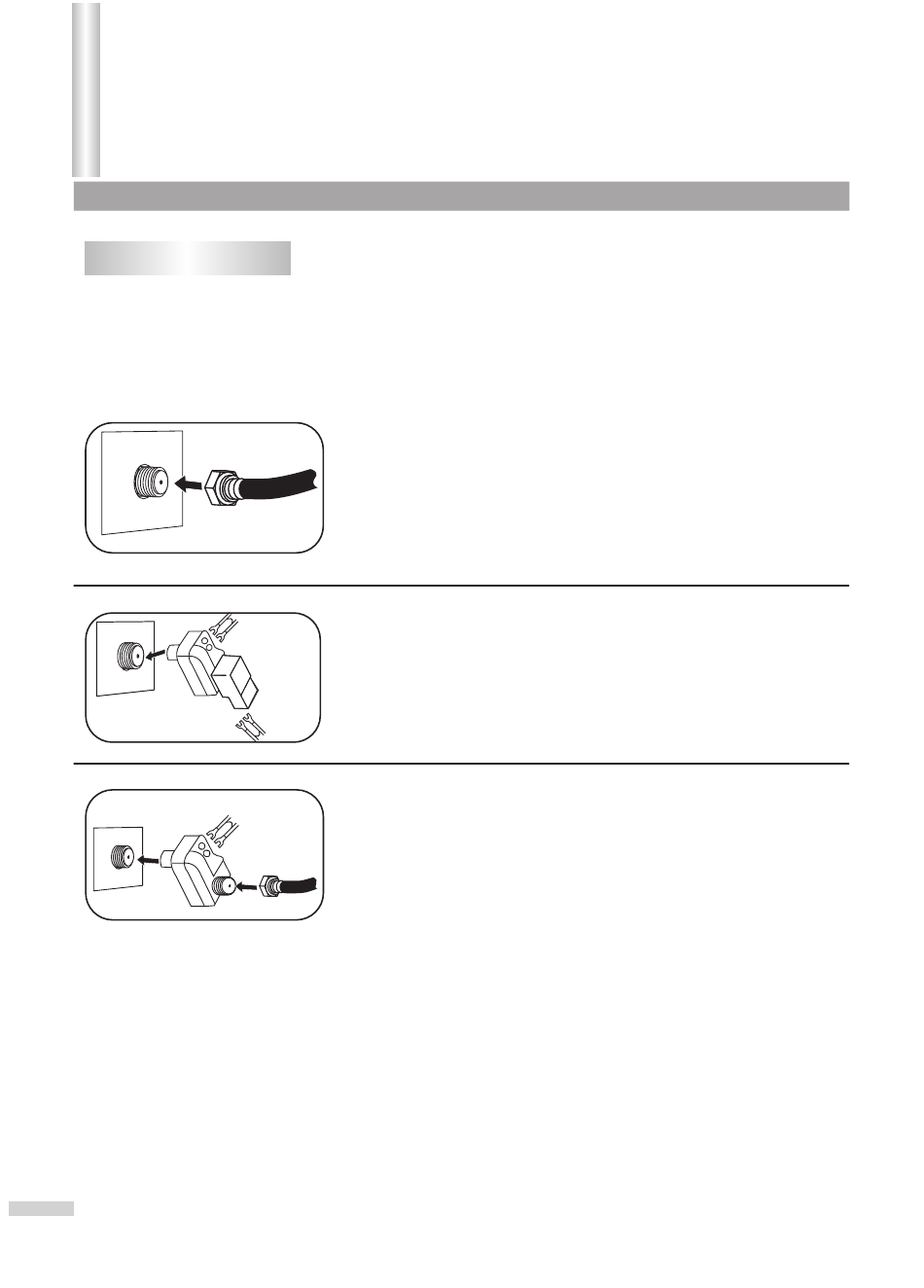

Combination VHF/UHF
Antenna (Single 75 ohm cable or 300 ohm twin-lead wire)
Connect the 75 ohm cable from combination VHF/UHF antenna to the
antenna jack.
If your combination antenna has a 300 ohm twin-lead wire, use a 300-75
ohm matching transformer (NOT SUPPLIED).
Combination VHF/UHF
Antenna (Separate VHF and UHF 300 ohm twin-leads)
Connect the UHF twin-lead wire to a combiner (NOT SUPPLIED).
Connect the VHF twin-lead to a 300-75 ohm matching transformer (NOT
SUPPLIED). Attach the transformer to the combiner. Attach the
VHF 300
combiner to the antenna jack.
OHM
Separate VHF/UHF Antennas
Connect the 75 ohm cable from the VHF antenna and the UHF antenna
twin-lead wire to a combiner (NOT SUPPLIED). Attach the combiner to
the antenna jack.
NOTE: If your VHF antenna has a twin-lead wire use a 300-75 ohm
matching transformer, then connect the transformer to the combiner.
OR
