Installation
Please refer to the owner's manual of your specific equipment as well.

Using MONITOR outputs

Rear terminals
S-VIDEO
MONITOR
VIDEO
L
/MONO
AUDIO
R

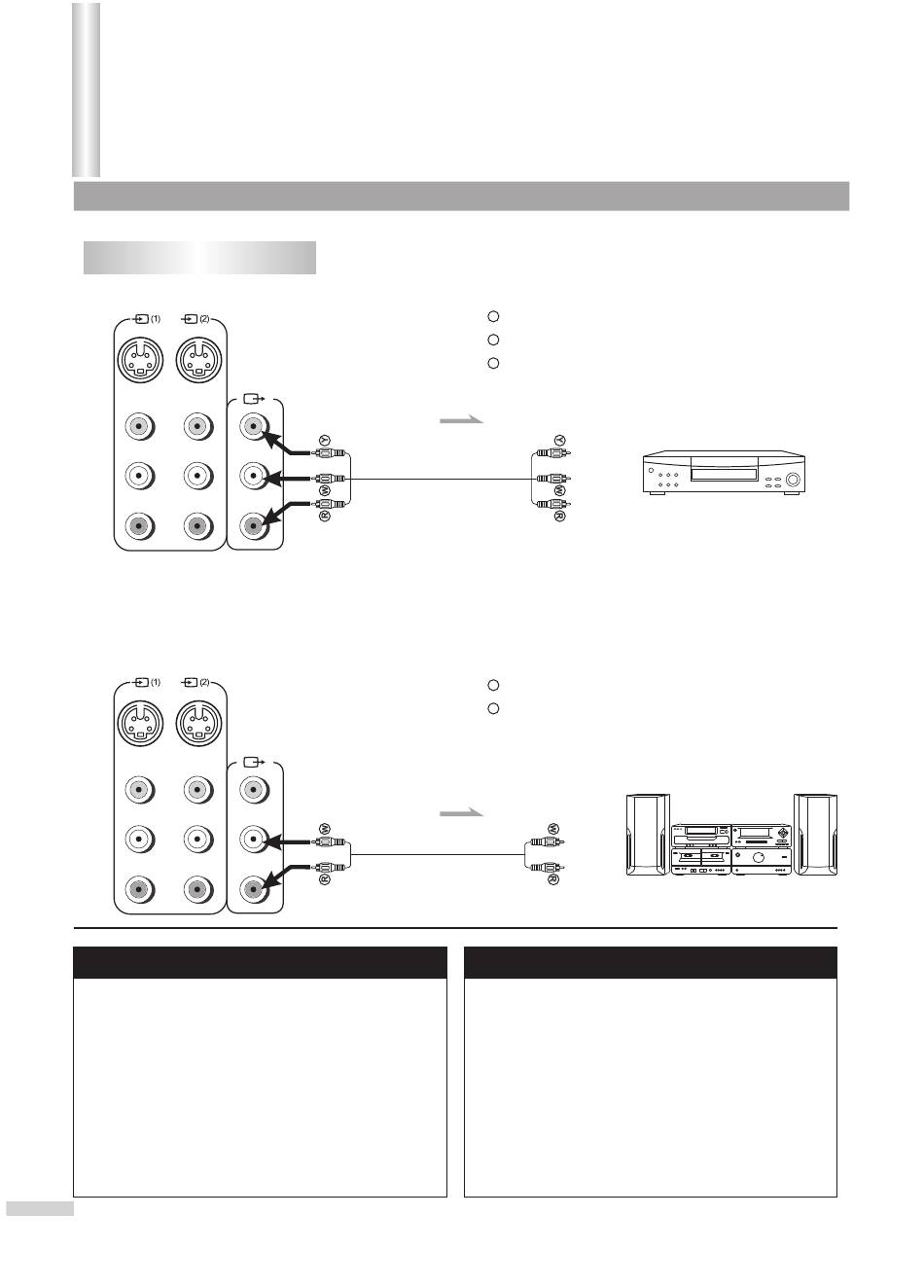

You can connect the MONITOR output terminals to the VCR to record the program you like.
OR you can connect a stereo system to the MONITOR output terminals on the TV set rear to
enjoy a high quality sound from the stereo system.
Rear terminals
S-VIDEO
MONITOR
VIDEO
L
/MONO
AUDIO
R
Recording TV program
1 Connect the MONITOR outputs to VCR
as the figure above.
2
Select the desired TV program that you
would like to record.
3
Press "RECORD" button of the VCR to
record TV program.
9
(continued)
Signal
To video
output
To audio
outputs
Signal
Connecting Audio Amplifier
1
2
3
4
Yellow (VIDEO)
Y Y
White (AUDIO L/MONO)
W W
Red (AUDIO R )
R R
To video
input
VCR for recording
To audio
inputs
White (AUDIO L/MONO)
W W
Red (AUDIO R )
R R
External Amplifier
To audio
inputs
Connect the audio outputs to audio
amplifier as the figure above.
Set amplifier volume to minimum.
Select the desired TV program that you
would like to amplify.
Adjust amplifier to a proper volume.
