cOB-200W cOB-200W cenic cenic 200W Warm-Cold White COB Led Par Light Par con Led Bianco Caldo-Freddo da 200W COB User Manual Manuale Utente Carefully read this manual and properly take care of it Leggete questo manuale e conservatelo per future consultazioni...
Page 2
Dear customer, First of all thanks for purchasing a CENTOLIGHT® product. Our mission is to satisfy all possible needs of light designers and professionals of entertainment lighting, by offering a wide range of products based on the latest technologies. We hope you will be satisfied with this fixture and, if you want to collaborate, we are looking for a feedback from you about product operation and possible im- provements to be introduced in the next future.
1.3. Accessories CENTOLIGHT can supply a wide range of quality accessories that you can use with your SCENIC Series equipment, like Cables, Splitters, DMX controllers, and a wide range of other fixtures. Ask your CENTOLIGHT dealer or check out our website www.
SCENIC COB-200W User Manual 2 - s afeTy nsTruCTions Read these instructions Keep these instructions Heed all warning Follow all instructions 2.1. Symbols Meaning The symbol is used to indicate that some hazardous live termi- nals are involved within this apparatus, even under the normal operating conditions, which may be sufficient to constitute the risk of electric shock or death.
SCENIC COB-200W User Manual 3.1. Rigging The installation of the fixture has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming demolition. The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net.

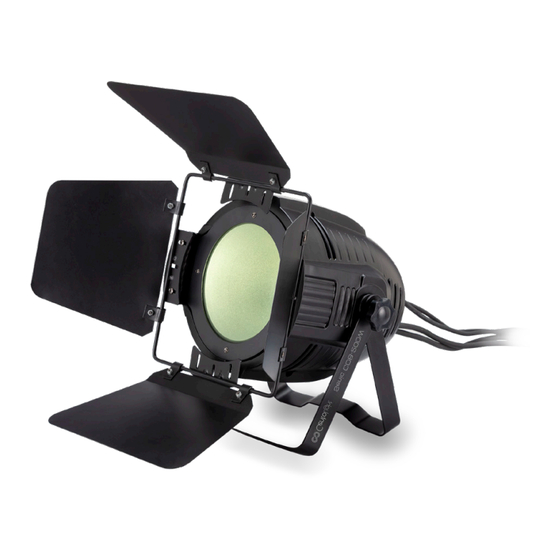

4 - i nTroduCTion Centolight Scenic COB-200W is a 200W COB Led Par with 60° beam angle. The light source combines Warm-White at 3200K and Cold-White at 6500K, both con- trollable separately in manual or DMX mode. It is designed for all those applications that could need variable white color temperature, as live shows, discos, showrooms, etc.
SCENIC COB-200W User Manual 4.2. Product Dimensions 310mm (12.04”) max. 194mm 175mm (7.64”) (6.9”) 234mm (9.21”) 5 - P roduCT eTuP 5.1. Rear Panel Description Imported by: FRENEXPORT SPA www.frenexport.com DMX IN DMX OUT MENU DOWN ENTER AC100~240V 50/60Hz...
Page 9
3) Power Input/Output Sockets Plug the power-cord included with SCENIC COB-200W into an AC socket proper- ly configured for this fixture. Please read “5.2. About Power Connection” on page 10 for details. This fixture is also equipped with an output power connector to be used as power mains source in case of cascade connection up to a maximum of 5 fixtures.
SCENIC COB-200W User Manual 5.2. About Power Connection Always make sure that the voltage of the outlet you are connecting the product to is within the range stated in paragraph “9 - Specification” on page 16 or rear panel of the product (AC110V-240V 50/60Hz).
SCENIC COB-200W User Manual male to female connectors. The shield connection is pin 1, while pin 2 is Data Nega- tive (S-), and pin 3 is Data positive (S+). CAUTION: Wires must not come into contact with each other; otherwise the fix- tures will not work at all, or will not work properly.
If you choose a starting address that is too high, you could restrict the access to some of the product channels. SCENIC COB-200W uses 6, 4 and 2 DMX channel modes, which defines the highest configurable address, respectively, to 505, 509 and 511 to have all channels controllable.
SCENIC COB-200W User Manual 6.2. DMX Channel Assignments and Values When use DMX control, the system can take 2, 4 or 6 channels. Below you can see the channel assignments for each mode. 1) 6 Channel Chart (H001-H512) CHANNEL FUNCTION...
* To contact CentoLight service, see “10 - Warranty And Service” on page 17 or visit www.centolight.com ** For instruction on how to install a DMX terminator, see “5.4. DMX Terminator” on page 11.
Alternatively, you can send the product to CENTOLIGHT SERVICE CENTER – Via Enzo Ferrari, 10 – 62017 Porto Recanati - Italy. In order to send a product to service center, you need an RMA num- ber.
SCENIC COB-200W User Manual 11 - W arning PLEASE READ CAREFULLY – EU and EEA (Norway, Iceland and Liechtenstein) only This symbol indicates that this product is not to be disposed of with your household waste, according to the WEEE Directive (2012/19/UE) and your national law.
Manuale Utente SCENIC COB-200W 1 - P riMa niziare Grazie per aver acquistato SCENIC COB-200W. Prima di iniziare, assicuratevi di leg- gere attentamente questo manuale! Il presente manuale fornisce una panoramica dei controlli e informazioni sul loro utilizzo. 1.1. Cosa è Incluso...
Manuale Utente SCENIC COB-200W 2 - i sTruzioni di iCurezza Leggete queste istruzioni Conservate queste istruzioni Prestate attenzione a tutti gli avvertimenti Seguite tutte le istruzioni 2.1. Significato dei simboli Questo simbolo viene utilizzato per indicare che all’interno di questo apparecchio sono presenti terminali sotto tensione, anche in condizioni operative normali, che possono essere sufficienti a costituire il rischio di scosse elettriche o morte.
Manuale Utente SCENIC COB-200W giamento della struttura. L’installazione deve essere sempre protetta con un dispositivo di sicurezza secondario, ad esempio un cavo di sicurezza. Questo di- spositivo deve essere realizzato in un modo tale che nessuna parte del prodotto possa cadere se il fissaggio principale cedesse.
4 - i nTroduzione Centolight SCENIC COB-200W è un Par a LED da 200W COB con fascio luminoso a 60°. La sorgente luminosa combina Bianco Caldo a 3200K e Bianco Freddo a 6500K, entrambi controllabili separatamente in modalità manuale o DMX. Nasce per tutte quelle applicazioni con illuminazione a temperatura colore variabile, come spettacoli live, discoteche, negozi, ecc.
Manuale Utente SCENIC COB-200W 4.2. Dimensioni del Prodotto 310mm (12.04”) max. 194mm 175mm (7.64”) (6.9”) 234mm (9.21”) 5 - s eTuP del ProdoTTo 5.1. Descrizione del Pannello Posteriore Imported by: FRENEXPORT SPA www.frenexport.com DMX IN DMX OUT MENU DOWN ENTER...
Page 25
Manuale Utente SCENIC COB-200W Il pannello di comando presenta un display Led da 4 caratteri e un’area di funzio- namento per il controllo dei pulsanti. 1) Display LED a 4 cifre Mostra la modalità operativa e tutte le informazioni di sistema. Leggere “6 - Funzio- namento dei Menu”...
Manuale Utente SCENIC COB-200W 5.2. Connessioni di Rete Assicurarsi sempre che la tensione della presa a cui si collega il prodotto sia nell’intervallo indicato nel paragrafo “9 - Specifiche Tecniche” a pagina 32 (AC110V-240V; 50/60Hz). Assicurarsi che il cavo di alimentazione non sia spellato o danneggiato. Non collegare mai questo prodotto a un Dimmer Pack o un Variatore di Tensione.
Manuale Utente SCENIC COB-200W 1, mentre il piedino 2 è negativo (S-)e il piedino 3 è positivo (S +). ATTENZIONE: I fili non devono entrare in contatto l’uno con l’altro; altrimenti i dispositivi non funzioneranno affatto o non funzioneranno correttamente.
DMX. Se si sceglie un indirizzo iniziale troppo alto, potresti limitare l’accesso ad alcuni canali del prodotto. SCENIC COB-200W può utilizzare 6, 4 o 2 canali DMX, i quali definiscono il più alto indirizzo configurabile rispettivamente di 505, 509 o 511 per avere tutti i canali controllabili.
Page 29
Manuale Utente SCENIC COB-200W 1) Tabella in modalità 6-canali (H001-H512) Canale Funzione Descrizione 0-255: Regolazione Dimmer Bianco Caldo/Freddo li-nea- Canale 1 Dimmer Generale re, da scuro a luminoso. 0-255: Regolazione Dimmer Bianco Caldo lineare, da Canale 2 Dimmer Bianco Caldo...
* Per contattare il Servizio Assistenza Centolight, consultare il paragrafo “10 - Garanzia e Assistenza” a pagina 33 o visitate il sito www.centolight.com ** Per istruzione su come installare un terminatore DMX, vedere “5.4. Terminatore DMX” a pagina 27.
10 - g aranzia e ssisTenza Tutti i prodotti CENTOLIGHT sono coperti da garanzia di due anni. Essa è valida dalla data di acquisto, come indicato dal documento di acquisto. I seguenti casi/ componenti non sono coperti dalla garanzia di cui sopra:...
Manuale Utente SCENIC COB-200W 11 - a see (n vviso orvegia slanda ieChTensTein LEGGETE ATTENTAMENTE - Questo simbolo indica che il prodotto non deve essere smaltito con i rifiuti domestici, in base alla direttiva RAEE (2202/96/CE) e legislazio- ne nazionale.
Page 35
Questo prodotto viene importato nella UE da FRENEXPORT SPA – Via Enzo Ferrari, 10 - 62017 Porto Recanati - Italy CentoLight® is a registered trademark of FRENEXPORT SPA - Italy CentoLight® è un marchio di fabbrica registrato di FRENEXPORT SPA - Italia...
