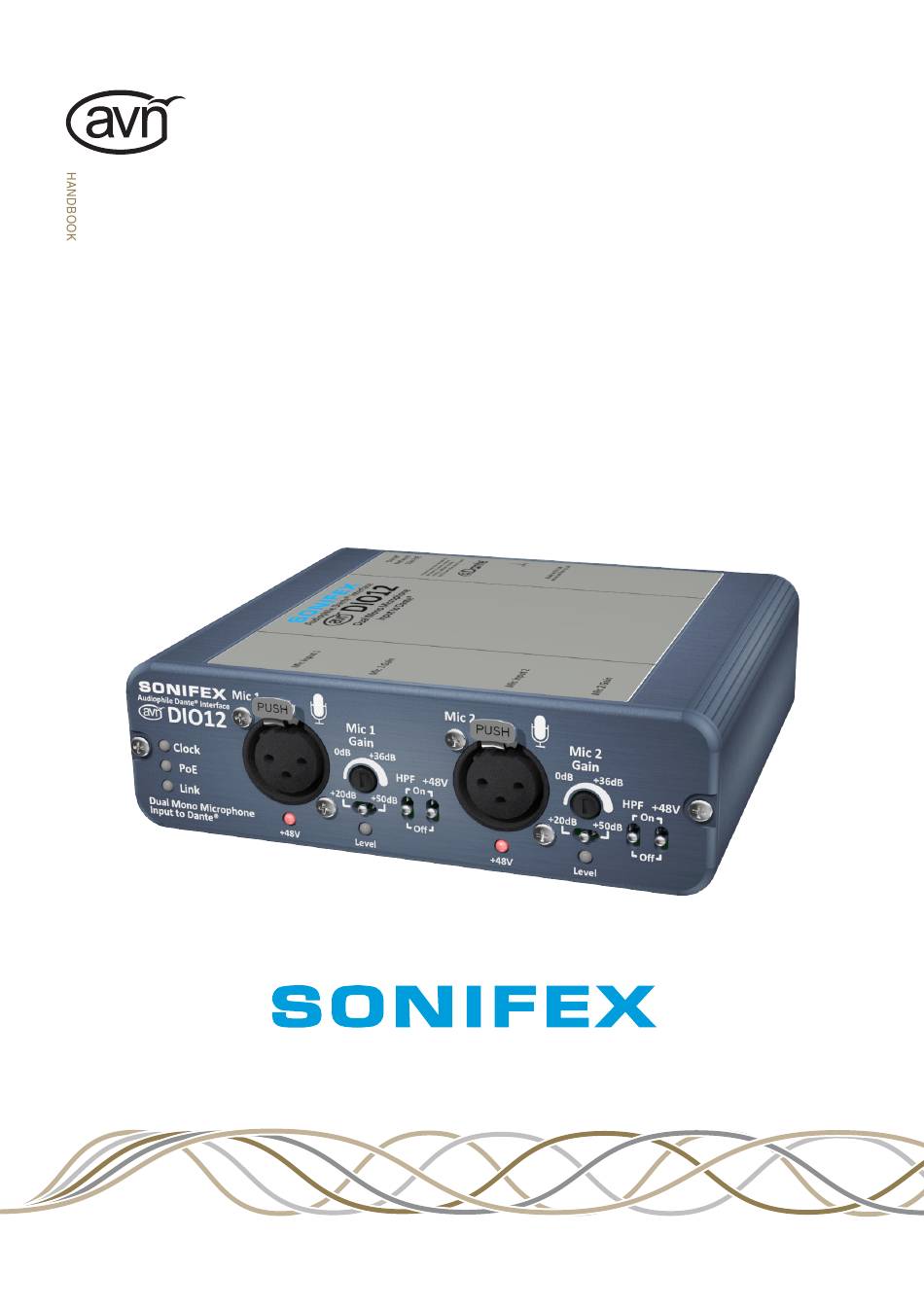

- Page 1 DIO Audiophile Dante Interfaces ® AVN-DIO12 Dual Mono Microphone Input to Dante® with Mic Gain H a n d b o o k Manufacturers of Audio Products for AV, Installed Sound, Broadcast Radio & Broadcast TV...
- Page 2 Contract. A reference to the consent, commitment on the part of the vendor. Sonifex Ltd shall not be liable for any loss or damage whatsoever arising from the use of information or any error contained in this manual.
- Page 3 Sonifex Ltd have the WEEE direc�ve label will enable the Purchaser to a�ain any par�cular performance or placed on the case. Sonifex Ltd will be happy to give you informa�on result, or will be suitable for any par�cular purpose or use under about local organisa�ons that can reprocess the product when it reaches...

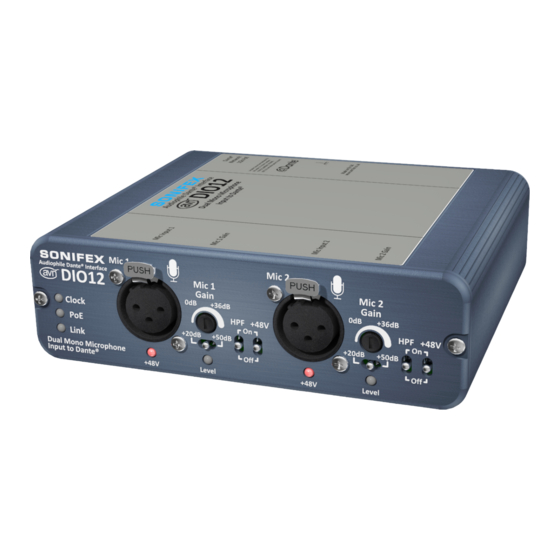

- Page 4 Controller Fig 2: AVN-DIO12 front panel AVN-DIO The AVN-DIO12 is a dual microphone input to Dante converter with adjustable mic gain in the Sonifex DIO range of Dante input/output devices. Audio It features 2 balanced analogue XLR inputs and one Neutrik etherCON connector for direct connec�on to a Dante AoIP network.
- Page 5 AVN-DIO12 Handbook Network Troubleshooting If the device does not show up in Dante Controller please check that the Ethernet cable is correctly connected and that the device and computer are on the same network. If the computer and the device are on different IP subnets, the device will...
- Page 6 AVN-DIO12 Handbook Device View Technical Specification For AVN-DIO12 Open up the Device View by double clicking on the device name in the Microphone XLR Input Pin-out Func�on rou�ng grid. Chassis Ground Input Phase Status Input Non Phase Within the Status tab, informa�on about the device can be seen, such as Microphone Input - XLR the product type and the current IP address.
