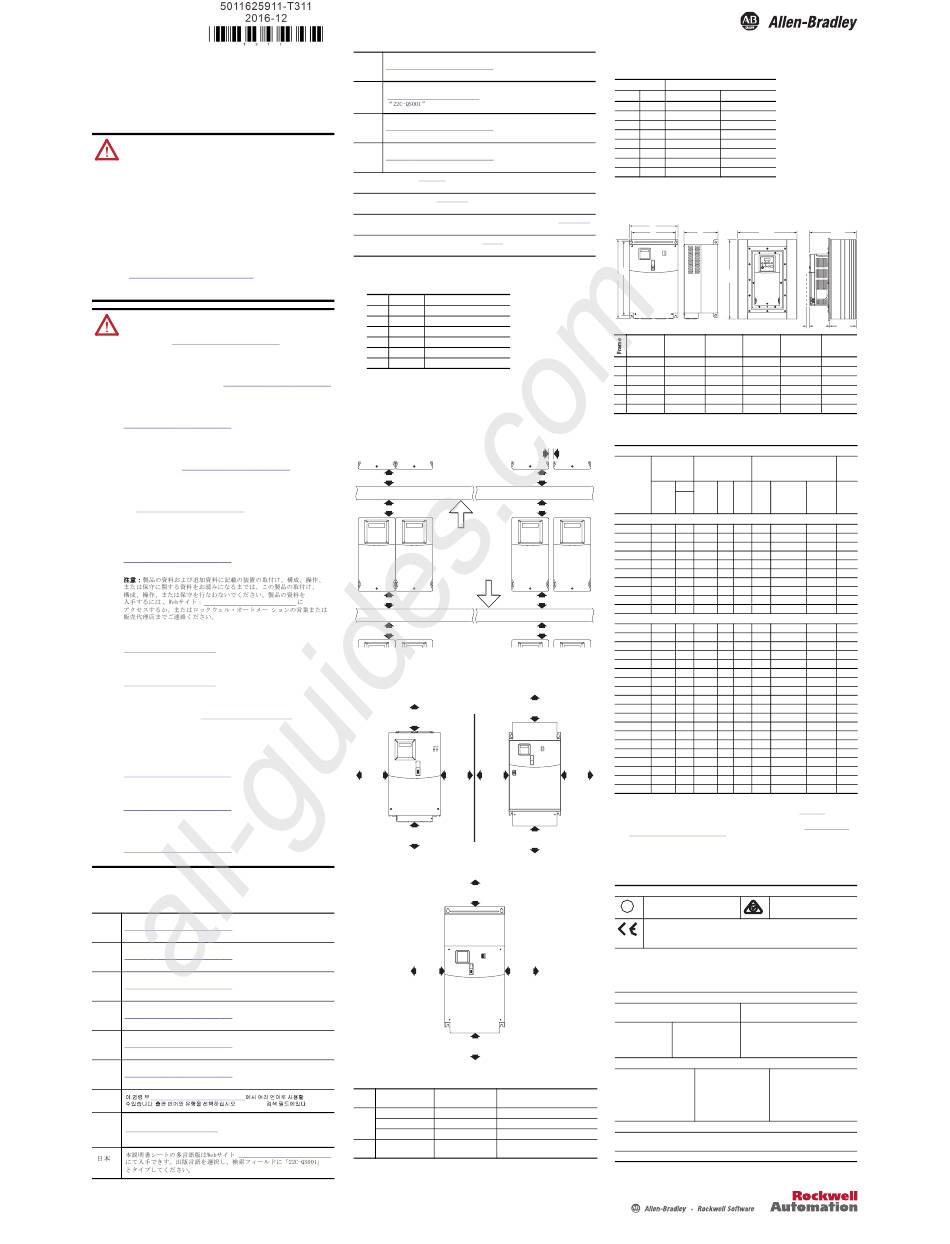

Product Information

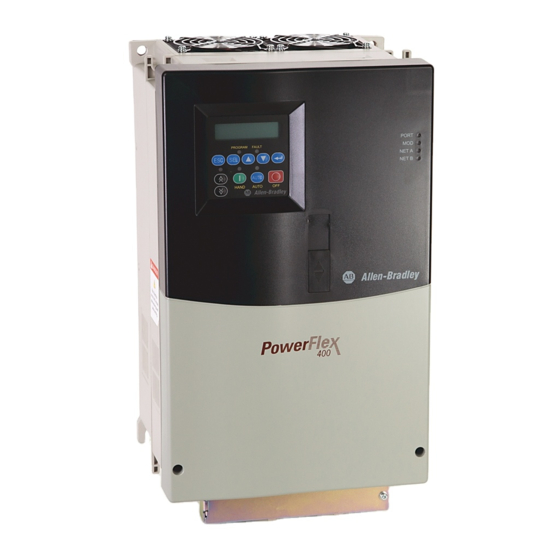

PowerFlex 400 Adjustable Frequency AC
Drive
Catalog Number 22C, Series B
ATTENTION:
• Before installing, configuring, operating or maintaining this product,
read this document and the documents listed in the Additional
Resources section for installing, configuring, or operating
equipment. Users should familiarize themselves with installation and
wiring instructions in addition to requirements of all applicable
codes, laws, and standards.
• Installation, adjustments, putting into service, use, assembly, disassembly,
and maintenance shall be carried out by suitably trained personnel in
accordance with applicable code of practice.
• If this equipment is used in a manner not specified by the manufacturer, the
protection provided by the equipment may be impaired.
• Solid state equipment has operational characteristics differing from those of
electromechanical equipment. Safety Guidelines for the Application,
Installation and Maintenance of Solid State Controls, publication SGI-1.1,
available from your local Rockwell Automation sales office or online at
http://www.rockwellautomation.com/literature
describes some important
differences between solid state equipment and hard-wired
electromechanical devices.
ATTENTION: Do not install, configure, operate or maintain this product until you have read
the product documentation and the documents in the Additional Resources section for
installing, configuring, operating or maintaining equipment. To get the product
documentation go to
http://www.rockwellautomation.com/literature
sales office or Rockwell Automation representative.
ATTENTION: Ne pas installer, configurer, exploiter ou maintenir ce produit tant que vous
n'avez pas lu sa documentation et les documents de la rubrique Documents connexes pour
l'installation, la configuration, l' e xploitation et la maintenance de l' é quipement. Pour obtenir
de la documentation, rendez-vous sur le site
http://www.rockwellautomation.com/literature
ou contactez votre agence commerciale Rockwell Automation locale ou son représentant.
ACHTUNG: Für die Installation, Konfiguration, den Betrieb und die Wartung dieses Produkt
lesen Sie sich bitte zunächst die Produktdokumentation sowie die Dokumente im Abschnitt
"Weitere Informationen" durch. Die entsprechende Produktdokumentation finden Sie unter
http://www.rockwellautomation.com/literature
oder kontaktieren Sie Ihr lokales
Vertriebsbüro bzw. einen Rockwell Automation-Mitarbeiter.
ATENCIÓN: No instale, configure, opere ni mantenga este producto hasta que haya leído la
documentación del producto y los documentos en la sección Recursos adicionales para la
instalación, configuración, operación o mantenimiento de equipo. Para conseguir la
documentación, diríjase a
http://www.rockwellautomation.com/literature
contacto con su oficina regional de ventas o representante de Rockwell Automation.
ATENÇÃO: Não instale, configure, opere ou mantenha este produto até que você leia a
documentação do produto e os documentos na seção Recursos adicionais para a instalação,
configuração, operação ou manutenção do equipamento. Para conseguir a documentação,
visite
http://www.rockwellautomation.com/literature
ou entre em contato con seu escritório
de vendas regional ou representante da Rockwell Automation.
ATTENZIONE: Non installare, configurare, attivare o riparare questo prodotto senza avere
prima letto la relativa documentazione nonchè i documenti indicati nella sezione Ulteriori
Risore riguardanti l'installazione, la configurazione, l'attivazione o la riparazione
dell'apparecchiatura. Per la documentazione sul prodotto visitare il sito
http://www.rockwellautomation.com/literature
o contattare l'ufficio vendite o il
rappresentate Rockwell Automation di zona.
http://www.rockwellautomation.com/literature
주의사항
주의사항 : : 제품 매뉴얼 혹은설치 , 구성 , 가동 , 유지와 관련된 추가 지침서를
완전히 숙지하기 전까지 본 제품을 설치 혹은 가동하 지 마십시오 . 본 제품과
관련된 매뉴얼 혹은 문서를 원하시면 사이트
http://www.rockwellautomation.com/literature
를 방문 해주시거나 해당
지역의 로크웰 오토메이션대리점으 로 문의하십시오 .
注意:若未阅读产品文档以及" 其它资源" 小节中提及的有关安装、配置、
注意
运行或维护设备的相关文档,请勿安装、配置、运行或维护本产品。请访问
http://www.rockwellautomation.com/literature
或联系您当地的销售办事处或
罗克韦尔自动化代表,以获取产品文档。
注意:
注意: 在您完整閱讀本產品相關文件及其他關於安裝、 配置、 操作或
維護設備等資料之前、 請勿安裝、 配置、 操作或維護此產品。您可到下列
http://www.rockwellautomation.com/literature
網站下載所有產品相關文件
或聯繫洛克威爾自動化當地辦公室。
ВНИМАНИЕ: Не устанавливайте, не конфигурируйте, не запускайте в эксплуатацию и не
поддерживайте работу продукта до прочтения технической документации по продукту
и документации в разделе Дополнительные материалы для инсталлирования,
конфигурирования, запуска в эксплуатацию и поддержки работы продукта. Чтобы
ознакомиться с документацией по продукту, перейдите по ссылке
http://www.rockwellautomation.com/literature
или свяжитесь с локальным офисом
продаж или представителем Rockwell Automation.
UWAGA: Nie instaluj i nie uruchamiaj tego urządzenia dopóki nie zapoznasz się z instrukcją
użytkownika produktu. Aby uzyskać dokumentację produktu przejdź do strony internetowej
http://www.rockwellautomation.com/literature
lub skontaktuj się z lokalnym biurem
sprzedaży lub przedstawicielstwem firmy Rockwell Automation.
UPOZORŇENÍ: Neprovádějte instalaci, konfiguraci, provoz ani údržbu, pokud jste dosud
nepřečetli dokumentaci k produktu a dokumenty obsažené v sekci Doplňující informace pro
instalaci, konfiguraci, provoz a údržbu. Tuto dokumentaci můžete získat na
http://www.rockwellautomation.com/literature
nebo od obchodního zástupce společnosti
Rockwell Automation.
Additional Resources
These documents contain additional information concerning the installation, programming, and application
of the AC drive.
English
This instruction sheet is available in multiple languages at
http://www.rockwellautomation.com/literature. Select publication language and type
"22C-QS001" in the search field.
Deutsch
Diese Anleitung steht in mehreren Sprachen unter
http://www.rockwellautomation.com/literature
zur Verfügung. Wählen Sie Ihre Sprache aus,
und geben Sie „22C-QS001" in das Suchfeld ein.
Français
Ces instructions sont disponibles dans différentes langues à l'adresse suivante:
http://www.rockwellautomation.com/literature. Sélectionner la langue puis taper
« 22C-QS001 » dans le champ de recherche.
Italiano
La presente scheda d'istruzione è disponibile in varie lingue sul sito
http://www.rockwellautomation.com/literature. Selezionare la lingua desiderata e digitare
"22C-QS001" nel campo di ricerca.
Español
Puede encontrar esta hoja de instrucciones en varios idiomas en
http://www.rockwellautomation.com/literature. Selecione el idioma de publicación y
escriba "22C-QS001" en el campo de búsqueda.
Português Esta folha de instruções está disponível em várias línguas em
http://www.rockwellautomation.com/literature. Seleccione a língua de publicação e entre
com "22C-QS001" no espaço de busca.
http://www.rockwellautomation.com/literature
한국의
"22C-QS001"
.
中文
从以下网页可以获得本说明书的多种语言的版本:
(简体)
http://www.rockwellautomation.com/literature
请选择出版物的语言, 并在搜索栏输入"22C-QS001" 印。
http://www.rockwellautomation.com/literature
Publication 22C-PC001D-EN-P - January 2017
All manuals and user guides at all-guides.com
Русский
Данное руководство на других языках можно найти по адресу
http://www.rockwellautomation.com/literature. Выберите язык и введите в окно поиска
«22C-QS001».
中文
以下網頁提供本說明書的多國語言版本:
http://www.rockwellautomation.com/literature
(繁體)
即可。
Český
Tato stránka s pokyny je k dispozici ve více jazykových verzích na adrese
http://www.rockwellautomation.com/literature. Zvolte jazyk publikace a do vstupního pole
pro vyhledávání zadejte „22C-QS001".
Polski
Niniejsza instrukcja dostępna jest w wielu językach na stronie
http://www.rockwellautomation.com/literature. Wybrać język publikacji, w polu
wyszukiwania wpisać "22C-QS001".
PowerFlex 400 User Manual 22C-UM001: Detailed information on the parameters and specifications of the
PowerFlex 400 adjustable frequency drive.
AC Drive Installation Considerations DRIVES-IN003: Provides additional information needed to properly
install PowerFlex AC drives.
Wiring and Grounding Guidelines for Pulse Width Modulated (PWM) AC Drives, publication DRIVES-IN001:
Provides basic information needed to properly wire and ground PWM AC drives.
Industrial Automation Wiring and Grounding Guidelines 1770-4.1: Provides general guidelines for
installing a Rockwell Automation industrial system.
Mounting Considerations
• Mount the drive upright on a flat, vertical and level surface.
Frame Screw Size Screw Torque
C
M5 (#10...24) 2.45...2.94 Nm (22...26 lb-in.)
D
M8 (5/16 in.) 6.0...7.4 Nm (53.2...65.0 lb-in.)
E
M8 (5/16 in.) 8.8...10.8 Nm (78.0...95.3 lb-in.)
or contact your local
F
M10 (3/8 in.) 19.6...23.5 Nm (173.6...208.3 lb-in.)
G
M12 (1/2 in.) 33.5...41.0 Nm (296.5...362.9 lb-in.)
H
M12 (1/2 in.) 33.5...41.0 Nm (296.5...362.9 lb-in.)
• Protect the cooling fan by avoiding dust or metallic particles.
• Do not expose to a corrosive atmosphere.
• Protect from moisture and direct sunlight.
Minimum Mounting Clearances
Frame C Mounting Clearances
o póngase en
120 mm
(4.7 in.)
120 mm
(4.7 in.)
Closest object that
may restrict air flow
through the drive heat
sink and chassis
120 mm
(4.7 in.)
120 mm
(4.7 in.)
Mounting Option A
No clearance required
between drives.
Frames D, E and F Mounting Clearances
Frame D and E
150 mm
(6.0 in.)
50 mm
50 mm
(2.0 in.)
(2.0 in.)
150 mm
(6.0 in.)
Frames G and H Mounting Clearances
300 mm
(11.8 in.)
Ambient Operating Temperatures
Frame Temperature Range Enclosure Rating
.
C
-10...45 °C (14...113 °F) IP20/UL Open Type
-10...45 °C (14...113 °F) IP30/NEMA 1/UL Type 1
-10...50 °C (14...122 °F) IP20/UL Open Type
D, E, F,
-10...45 °C (14...113 °F) IP30/NEMA 1/UL Type 1
G, H
(1)
Frame C drives require installation of the PowerFlex 400 IP30/NEMA 1/UL Type 1 option kit to achieve this
rating.
Drive Dimensions
PowerFlex 400 Frames
Output Power
kW
HP
。請選擇出版語言,並於搜尋欄鍵入
2.2...7.5
3...10
11...15
15...20
18.5...22 25...30
30...37
40...50
45...75
60...100
90...110
125...150 –
132...160 200...250 –
200...250 300...350 –
PowerFlex 400 Frames C...H
Dimensions are in mm and (in.). Weights are in kg and (lb).
IP20/NEMA/UL Type Open
E
B
A
C
130.0 (5.1)
D
250.0 (9.84)
E
370.0 (14.57)
F
425.0 (16.73)
G
425.0 (16.73)
H
529.2 (20.83)
(1)
Weights include HIM and Standard I/O.
Specifications, Fuses and Circuit Breakers
25 mm
Drive Ratings
(1.0 in.)
Catalog No.
120 mm
(4.7 in.)
120 mm
(4.7 in.)
200...240V AC – 3-Phase Input, 0...230V 3-Phase Output
22C-B012N103 2.2 (3.0)
22C-B017N103 3.7 (5.0)
22C-B024N103 5.5 (7.5)
22C-B033N103 7.5 (10)
22C-B049A103 11 (15)
22C-B065A103 15 (20)
22C-B075A103 18.5 (25)
22C-B090A103 22 (30)
120 mm
22C-B120A103 30 (40)
(4.7 in.)
22C-B145A103 37 (50)
380...480V AC – 3-Phase Input, 0...460V 3-Phase Output
120 mm
22C-D6P0N103 2.2 (3.0)
(4.7 in.)
22C-D010N103 4.0 (5.0)
22C-D012N103 5.5 (7.5)
Mounting Option B
22C-D017N103 7.5 (10)
22C-D022N103 11 (15)
22C-D030N103 15 (20)
22C-D038A103 18.5 (25)
22C-D045A103 22 (30)
Frame F
22C-D060A103 30 (40)
250 mm
22C-D072A103 37 (50)
(9.8 in.)
22C-D088A103 45 (60)
22C-D105A103 55 (75)
22C-D142A103 75 (100)
22C-D170A103 90 (125)
22C-D208A103 110 (150) 208
22C-D260A103 132 (200) 260
22C-D310A103 160 (250) 290
50 mm
50 mm
(2.0 in.)
(2.0 in.)
22C-D370A103 200 (300) 370
22C-D460A103 250 (350) 410
(1)
Recommended Fuse Type: UL Class J, CC, T or Type BS88; 600V (550V) or equivalent.
(2)
Refer to the MCS Miniature Modular Control System Selection Guide, publication
the frame and breaking capacity required for your application.
(3)
The AIC ratings of the Bulletin 140M Motor Protector Circuit Breakers may vary. See
Protection Circuit Breakers Application
150 mm
(4)
Manual Self-Protected (Type E) Combination Motor Controller, UL listed for 208 Wye or Delta, 240 Wye or
(6.0 in.)
Delta, 480Y/277 or 600Y/347. Not UL listed for use on 480V or 600V Delta/Delta, corner ground, or
high-resistance ground systems.
(5)
When using a Manual Self-Protected (Type E) Combination Motor Controller, the drive must be installed in a
ventilated or non-ventilated enclosure with the minimum volume specified in this column. Application specific
thermal considerations may require a larger enclosure.
300 mm
Agency Certifications
(11.8 in.)
U L
C
®
US
The drive is also designed to meet the appropriate portions of the following specifications:
NFPA 70 – US National Electrical Code
300 mm
NEMA ICS 3.1 – Safety standards for Construction and Guide for Selection, Installation and Operation
(11.8 in.)
of Adjustable Speed Drive Systems.
IEC 146 – International Electrical Code.
Control Inputs
Digital inputs, programmable/semi-programmable
SRC (Source) mode:
18...24V = ON
300 mm
0...6V = OFF
(11.8 in.)
Control Outputs
Relay output, programmable
form C
Resistive rating: 3.0 A @ 30V DC,
Minimum Mounting
125V AC and 240V AC
Clearances
Inductive rating: 0.5 A @ 30V DC,
Use Mounting Option A
125V AC and 240V AC
(1)
Use Mounting Option B
Protective Features
Use Mounting Option B
Motor Protection:
2
See Frames D, E and F Mounting Clearances
I
t overload protection – 110% for 60 s (Provides Class 10 protection)
and Frames G and H Mounting Clearances
Overcurrent: 180% hardware limit, 220% instantaneous fault
Frame Size
200...240V AC Input 400...480V AC Input
C
C
D
C
D
D
E
E
E
F
G
H
Flange Mount for Frame C
IP20/66 (NEMA Type 1/4X/12)
A
300
D
C
(11.81)
325
(12.8)
24.5
105.8
(0.96)
(4.17)
B
C
D
E
Weight
260.0 (10.2)
180.0 (7.1)
116.0 (4.57)
246.0 (9.7)
4.33 (9.5)
436.2 (17.17)
206.1 (8.11)
226.0 (8.90)
383.4 (15.09)
14.0 (30.9)
605.5 (23.84)
259.2 (10.21)
335.0 (13.19)
567.4 (22.34)
51.2 (112.9)
850.0 (33.46)
264.0 (10.39)
381.0 (15.00)
647.5 (25.49)
88.0 (194.0)
892.0 (35.12)
264.0 (10.39)
381.0 (15.00)
819.5 (32.26)
106 (233.7)
1363.8 (53.69)
358.6 (14.12)
480.0 (18.90)
1119.0 (44.06)
177 (390.2)
Output Rating
Input Rating
Branch Circuit Protection
kW
Amps Voltage
kVA Amps Fuses
140M Motor
Min.
(HP)
Range
(1)
Protectors
Enclosure
50 °C
(2) (3) (4)
Volume
3
(in.
)
12
180...265 6.5
15.5
20
140M-F8E-C16 5098
17.5
180...265 8.8
21
30
140M-F8E-C25 5098
24
180...265 10.9
26.1
35
140M-F8E-C32 5098
33
180...265 14.4
34.6
45
140M-F8E-C45 5098
49
180...265 21.3
51
70
65
180...265 28.3
68
90
75
180...265 32.5
78
100
81
180...265 38.3
92
125
120
180...265 51.6
124
175
130
180...265 62.4
150
200
6
340...528 6.3
7.5
10
140M-D8E-C10 5098
10.5
340...528 10.9
13
20
140M-D8E-C16 5098
12
340...528 11.9
14.2
20
140M-D8E-C16 5098
17
340...528 15.3
18.4
25
140M-D8E-C20 5098
22
340...528 19.2
23
30
140M-F8E-C32 5098
27
340...528 25.8
31
40
140M-F8E-C32 5098
38
340...528 33.3
40
50
140M-F8E-C45 9086
45.5
340...528 39.1
47
60
54
340...528 53.3
64
80
72
340...528 60.7
73
100
88
340...528 74.9
90
125
105
340...528 89
107
150
128
340...528 124.8 150
200
170
340...528 142
170
250
340...528 167
200
250
340...528 196
235
300
340...528 242
290
400
340...528 304
365
500
340...528 387
465
600
MCS-SG001
Bulletin 140M Motor
Ratings.
Listed to UL508C and CAN/CSA-22.2
Certified to AS/NZS, 1997 Group 1,
Class A
Marked for all applicable European Directives
EMC Directive: 2014/30/EU: EN 61800-3
LV Directive: 2014/35/EU: EN 61800-5-1
Analog inputs, isolated -10...10V or 4...20 mA/
non-isolated 0...10V or 4...20 mA
SNK (Sink) mode:
Resolution: 10-bit
4...20 mA analog: 250  input impedance
0...6V = ON
18...24V = OFF
0...10V DC analog: 100 k input impedance
External pot: 1...10 k, 2 W min
Opto outputs, programmable
Analog output, non-isolated
30V DC, 50 mA non-inductive
Resolution: 10-bit
0...10V DC analog: 1 k min
4...20 mA analog: 525  max
244
(9.61)
138.2
(5.44)
(1)
Power
Dissi-
pation
IP20
Open
(5)
Watts
146
207
266
359
488
650
734
778
1055
1200
105
171
200
267
329
435
606
738
664
1019
1245
1487
2043
2617
3601
3711
4208
4916
6167
to determine

Advertisement

loading
Need help?

Need help?

Do you have a question about the PowerFlex 400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Allen-Bradley PowerFlex 400

  • Page 1 G, H and Frames G and H Mounting Clearances http://www.rockwellautomation.com/literature Overcurrent: 180% hardware limit, 220% instantaneous fault Frame C drives require installation of the PowerFlex 400 IP30/NEMA 1/UL Type 1 option kit to achieve this rating. Publication 22C-PC001D-EN-P - January 2017...
  • Page 2 Rockwell Automation representative. R/L1 S/L2 T/L3 DC– U/T1 V/T2 W/T3 The PowerFlex 400 is designed so that start up is simple and efficient. The Program Group contains the most New Product Satisfaction Return commonly used parameters. Terminal...
