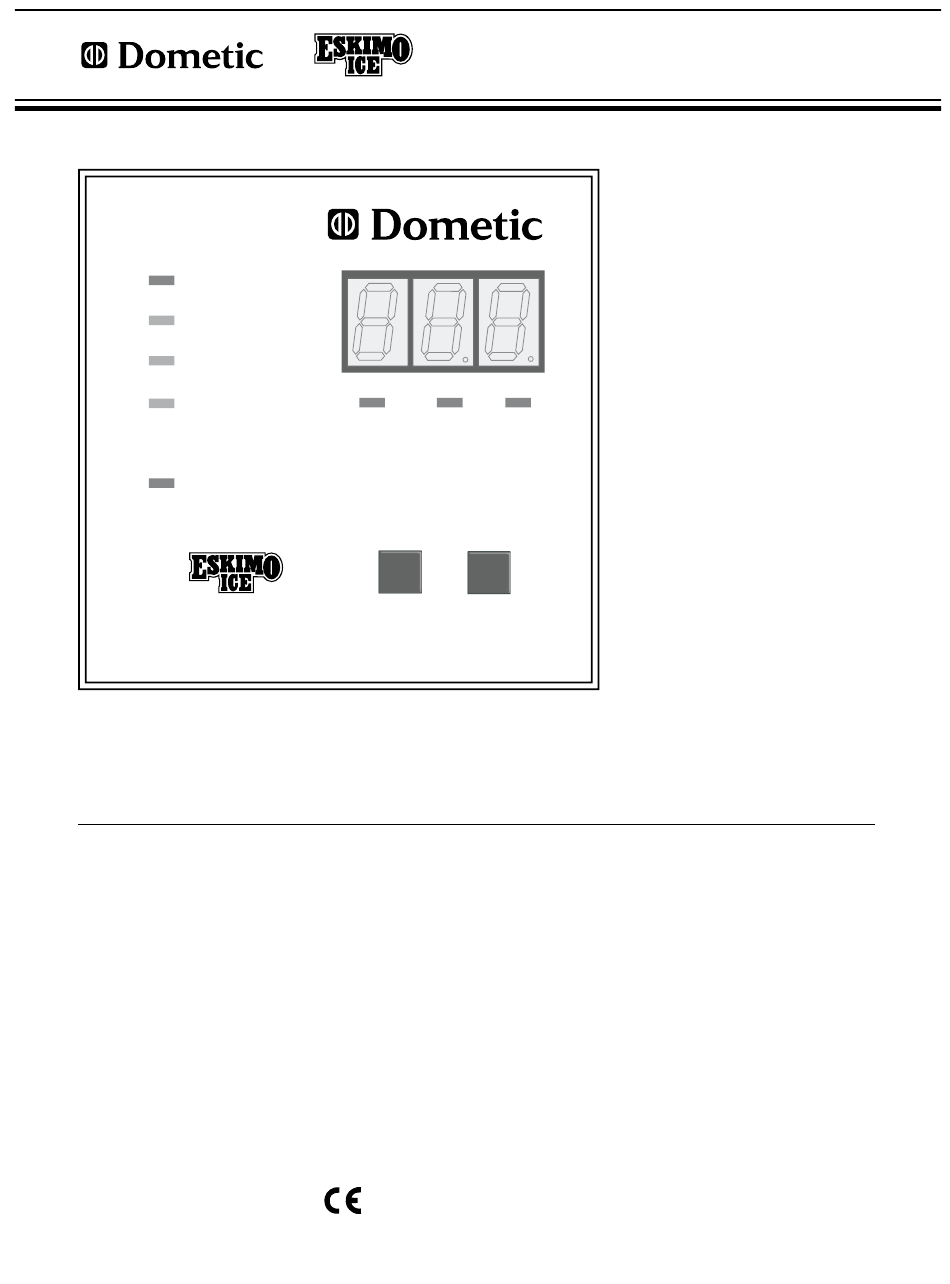

- Page 1 Water Flow High Pressure Low Pressure Comp Auger Ice Bin Full Power Function On/Off Dometic eskimo ice crusheD ice systems oPerAtioN mANuAL For Self-Contained & Remote Systems Using Digital Controls (For b-16 Software) Dometic Environmental Corporation Rev. 20080421 ID: 2514...
- Page 2 Dometic Environmental Corporation. Every precaution has been taken in the preparation of this manual to insure its accuracy. However, Dometic Environmental Corporation assumes no Responsibility for errors and omission. Neither is any liability assumed...
-
Page 3: Table Of Contents
Dometic eskimo ice coNtroL oPerAtioN mANuAL coNteNts INTRODUCTION OpERaTION Events that can interrupt normal production programmable parameters program parameter Description programmable parameter Table Typical Operation Cycle Table Owner's Limited warranty Limited Warranty periods DEaLER LOCaTOR eNGLish... -
Page 4: Introduction
This operation manual provides information for self-contained and remote Eskimo Ice Systems using digital controls. please refer to Eskimo Ice Manual L-2448a for installa- tion of the self-contained system and L-2448B for installation of the remote system. Please Note: the supplied main cartridge filter must be installed or the... -
Page 5: Programmable Parameters
– Potable water switch. If the potable water UCC fault can be caused by over voltage or open wire. switch is open during production for 15 seconds, the display will show H20 fault and the Water Flow LED ucA –... -
Page 6: Programmable Parameter Table
Note: Changes to technical parameters not listed above should be performed by an authorized service t-5: reset Programmable Parameters: Resets dealer. Please contact Dometic at 800-542-2477 for a all programmable parameters to factory defaults. Set this dealer near you. setting to 1 and unit will reset all values. Setting will change... -
Page 7: Typical Operation Cycle Table
ACTION Delay before Next Step (in seconds) and/or description of action Initial Start Up Via Breaker Assumed display is in ON position. If not, turn unit on via display. Pump ON Auger ON Compressor ON Will continue until sensor reads bin full for 30 sec., fault trip or unit manually... - Page 8 Figure 3. Wiring Diagram for digital control eNGLish...
- Page 9 Figure 4. Location of Ice Bin Sensor Display Cut Out 3.1875 Dimensions 3.1875 Figure 5. Display Cutout eNGLish...
-
Page 10: Owner's Limited Warranty
LimiteD wArrANty As hereinafter described, Dometic Environmental Corporation limits the duration of any implied warranty to the duration of the underlying express warranty and also disclaims any liability for consequential or incidental damages arising from any application, installation, use or malfunction of any warranted product. - Page 11 (electrolysis) of thru-hull components which could result in leakage serious Section IV enough to sink a vessel which could result in loss of life. All Dometic components must be kept clean and dry and checked periodically for electrical leakage. If any...
-
Page 12: Limited Warranty Periods
Please read and keep this document with your important paperwork. Use it as a reference in the future. If you have any questions, please contact the Dometic Environmental Corporation Service Department at (804)746-1313 for clarification. Note: Any model or replacement part that has been installed due to a warranty failure will carry only the remainder of the original warranty. -
