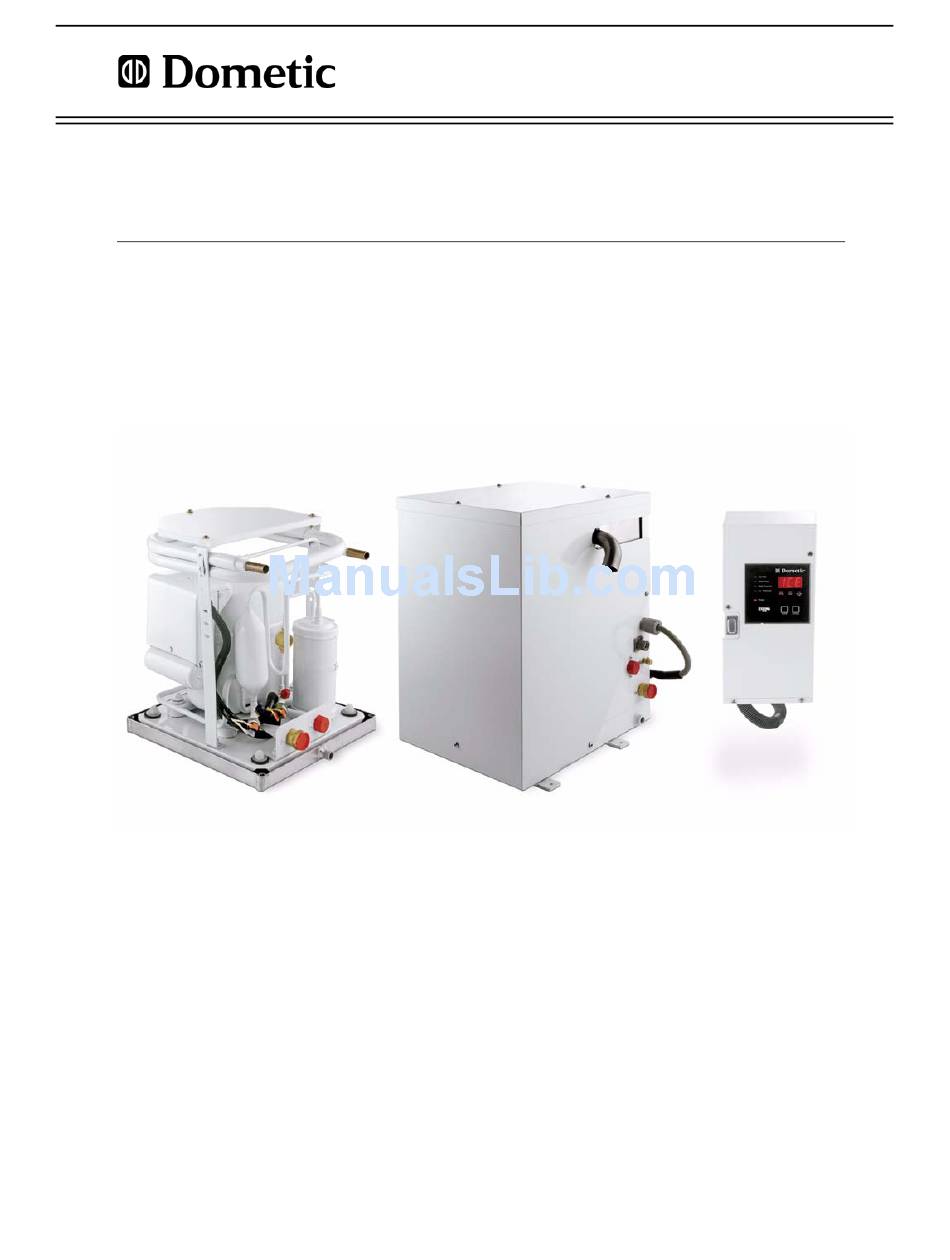

Page 1
Dometic Marine. Every precaution has been taken in the preparation of this manual to insure its accuracy. However, Dometic Marine assumes no responsibility for errors and omission. Neither is any liability assumed for damages resulting from the use of this product and information contained herein.
Some equipment may be shipped with specific installation sheets or wiring diagrams that may supercede the information located in this manual. Dometic reserves the right to update or change any information located herein at any time and without prior notice.
INTRODUCTION Eskimo Ice Installation Manual Remote System The Effect of Seawater and Fresh Water Temperatures Seawater and freshwater temperatures affect the ice machine’s efficiency and capacity. The system is most efficient when the seawater and fresh water temperatures are 55-80°F (13-27°C). The ideal temperature for both is 70°F (21.1°C). High Temperatures - As water temperatures approach 90°F (32°C) and above, the water’s ability to absorb heat diminishes, so the capacity of the system decreases.
ONDENSER Never install the unit in the bow of the boat. Dometic ice-making units are designed to be installed in any convenient location on the transom, in the aft, or in a machinery space that does not require ignition protection that is as far aft of midship as possible.
INSTALLATION PROCEDURES Eskimo Ice Installation Manual Remote System • The unit will produce condensation, so the drip pan is necessary. • The unit is water cooled and does not need direct ventallation, but do not install in a sealed space. •...
Eskimo Ice Installation Manual Remote System INSTALLATION PROCEDURES The auger unit has an elbow on the top-right side where the ice exits. The elbow rotates 360 degrees to accommodate any direction of the hose to the ice box. Make sure the elbow is oriented upward so water can re-enter the auger barrel instead of flowing to the ice box.
INSTALLATION PROCEDURES Eskimo Ice Installation Manual Remote System NSTALLING THE EVEL ENSOR To prevent overflow, this sensor stops ice production when the ice in the storage box reaches the level of the sensor. Use Figure 2 below to determine placement for the ice-level sensor at the storage box location. The sensor must be located below and to the side of the ice-delivery hole.
Eventually, built-up scale will shorten machine life. A filter must always be used, preferably one supplied by Dometic for use with ice makers. Replace the filter at least twice yearly, or more often if the machine is used frequently. While filters help clean the water, a yearly cleaning of the evaporator barrel is required.
INSTALLATION PROCEDURES Eskimo Ice Installation Manual Remote System Figure 3: Seawater Piping Recommendations Thru-Hull Inlet Fitting A separate thru-hull fitting must be installed for each seawater pump. Do not attempt to draw water from the thru-hull fitting of an engine, generator, or other device. Install a scoop-type thru-hull fitting: Drill a properly sized hole for the thru-hull fitting as far below the water line and as close to the keel as possible.
Run appropriate seawater piping from the seacock to the strainer, and use threaded-seal tape on pipe threads. Seawater Pump Required Flow Rate The Dometic EI600D ice maker requires 2.5 GPM (150 GPH) and the EI250D requires 1.25 GPM (75 GPH) of seawater flow for rated performance. Centrifugal Pumps Centrifugal pumps are not self-priming, and must be mounted so they are below the heeled waterline in any given operating condition.
INSTALLATION PROCEDURES Eskimo Ice Installation Manual Remote System Figure 5: Seawater Manifold Orientation Pump Relay The pump relay (if needed) is generally located in the engine room or mechanical space near the seawater pump, but can be mounted anywhere that is convenient and accessible. It must be in a dry location, away from water spray, with some room for heat dissipation.
(82mm) OPERATION This section of the manual provides the essential information for safe operation for all Dometic ice makers. For more detailed operation information, refer to the Digital Control Operations Manual. If you encounter any operational problems, call your dealer or the Dometic Marine Service Department at 954-973-2477.
OPERATION Eskimo Ice Installation Manual Remote System Figure 7: Control Panel Table 1: Digital Control - Diagram Legend Digital display Power indicator Ice Bin Full indicator Low Pressure fault light Function button High Pressure fault light Auger indicator Water Flow fault light (for freshwater feed) Power button (on/off) Ice Flow fault light (for clogs) Compressor indicator...
Remote System SERVICING THE SYSTEM SERVICING THE SYSTEM This section contains information critical to correct servicing of this Dometic ice-making system. Read and understand all information before beginning. If you have any questions, call the Dometic service department at 804-746-1313. EFRIGERANT Your Dometic ice-making system contains R-134a refrigerant, an environmentally safe gas.
OWNER MAINTENANCE Eskimo Ice Installation Manual Remote System Charging the System Remove line from vacuum pump and connect to a bottle of R-134a. The charge should be weighted in by placing the bottle on a refrigerant scale. Turn the bottle upside down and purge the charge hose at the gauge set. Allow refrigerant to flow in the high side until the correct charge is reached.
Eskimo Ice Installation Manual Remote System TROUBLESHOOTING GUIDE WARNING Ice-machine cleaners use strong acids. Read and follow all instructions and warnings on the container of the solution you use. UGER OTOR AND EARBOX The auger motor and gearbox are permanently lubricated and need no maintenance unless leakage or contamination has occurred.
3. Loose or missing drain hose on weep hole which might allow condensate to leak into weep hole. Attach or tighten hose. TECHNICAL ASSISTANCE If you need technical assistance with your Eskimo Ice system go to www.dometic.com to locate a sales and service dealer near you or contact Dometic Customer Support: •...
Eskimo Ice Installation Manual Remote System SYSTEM CONNECTION AND WIRING DIAGRAMS SYSTEM CONNECTION AND WIRING DIAGRAMS YSTEM ONNECTION Figure 8: Fresh-Water Connection Diagram Reservoir Evaporator Float Spout Water Inlet Clamp Water Line Ice Tube Reservoir Overflow L-2448B ENGLISH...
Page 20
IB 400 ICE MAKER PROPRIETARY NOTE: THE INFORMATION CONTAINED WITHIN THIS DOCUMENT SIZE: Sheet of 1 IS THE PROPERTY OF DOMETIC CORPORATION. ANY ATTEMPT TO COPY OR DATE: DISTRIBUTE WITHOUT WRITTEN CONSENT FROM DOMETIC CORPORATION SHALL 4/6/06 PART NUMBER: DWG BY: BE CONSIDERED UNLAWFUL AND CAN BE CONTESTED IN A COURT OF LAW.
